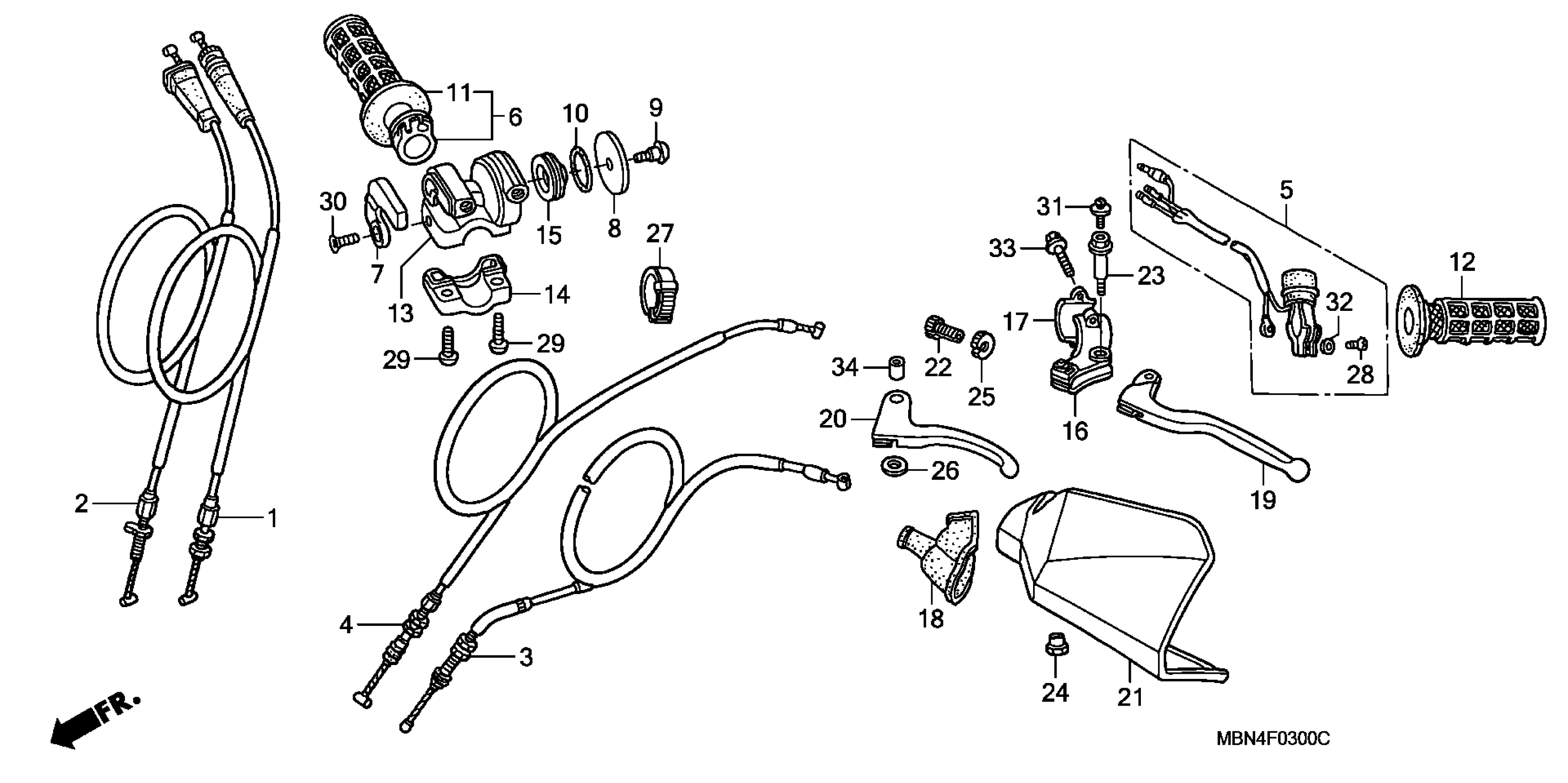

Honda XR650RA (06) MOTORCYCLE, JPN, VIN# JH2RE010-6K700001 TO JH2RE010-6K799999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MBN-670

$38.15

2

CABLE B, THROTTLE

17920-MBN-670

$38.15

3

CABLE, CLUTCH

22870-MBN-670

$32.18

4

CABLE, DECOMPRESSION

22890-MBN-670

$33.64

5

SWITCH ASSY., STOP

35130-MN1-670

$33.71

6

GRIP ASSY., THROTTLE

53140-429-010

$34.13

7

SLIDER, THROTTLE

53162-MN1-670

$8.80

8

COVER, THROTTLE PULLEY

53163-MN1-670

Unavailable

9

SCREW, THROTTLE PULLEY PIVOT

53164-MN1-670

$4.78

10

GASKET, THROTTLE PULLEY

53165-MN1-670

$2.66

11

GRIP, R. HANDLE

53165-GFW-305

$10.87

11

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

12

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$8.69

12

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.69

13

HOUSING, THROTTLE (UPPER)

53167-MN1-670

$27.19

14

HOUSING, THROTTLE (LOWER)

53168-MN1-670

Unavailable

15

PULLEY, THROTTLE

53169-MN1-670

$12.89

16

BRACKET, L. HANDLE LEVER

53172-MBN-670

$36.13

17

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.36

18

COVER, L. HANDLE LEVER

53177-MK5-000

$7.06

19

LEVER, L. HANDLEBAR This part replaces 53178-KSE-305.

53178-MAC-740

$17.79

19

LEVER, L. HANDLEBAR

53178-MAC-740

$17.79

20

LEVER, DECOMPRESSION

53180-MBN-670

Unavailable

21

GUARD, L. KNUCKLE *R134* (FIGHTING RED)

53185-MBN-670ZB

$34.29

22

BOLT, CLUTCH WIRE ADJUSTING

53192-KA3-700

$12.91

23

BOLT, HANDLE LEVER PIVOT

90112-MBN-670

$5.04

24

NUT, FENDER SETTING

90312-GE2-000

$4.44

25

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$8.99

25

NUT, FIXING

90321-KF0-000

$8.99

26

WASHER, PLAIN (7MM)

90501-KV6-670

$1.72

27

BAND, WIRE

90650-KW3-000

$4.28

28

SCREW, PAN (4X12)

93500-04012-0A

$0.82

28

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.82

29

SCREW, PAN (6X16)

93500-06016-0G

$1.28

30

SCREW, OVAL (4X10)

93700-04010-0G

$0.44

30

SCREW, OVAL (4X10) This part replaces 93700-04010-1G.

93700-04010-0G

$0.44

31

SCREW-WASHER (4X10)

93894-04010-10

$1.21

32

WASHER, SPRING (4MM)

94111-04000

$0.99

33

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

34

COLLAR, DECOMPRESSION LEVER

53181-MBN-670

$3.25
