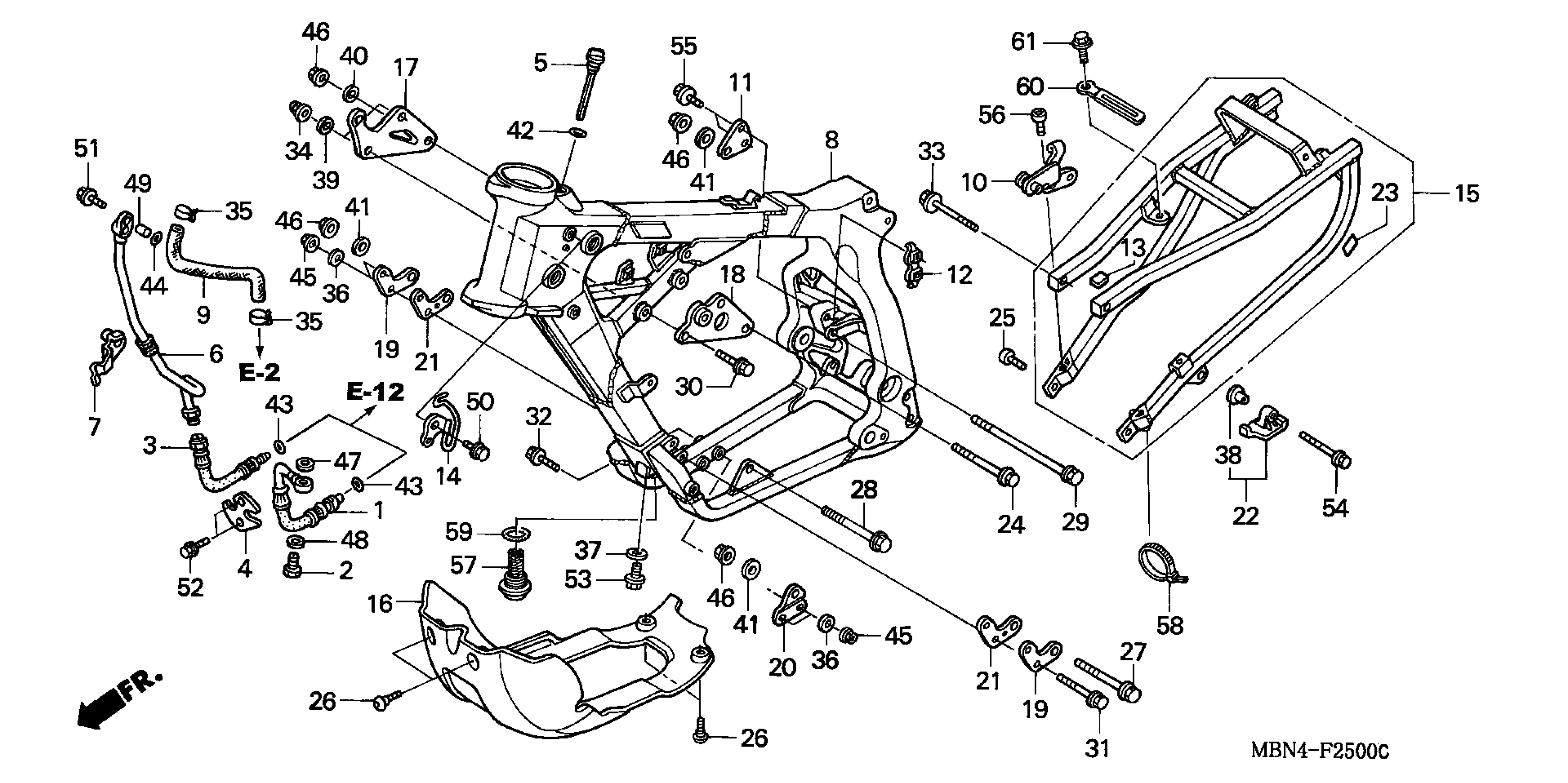

Honda XR650RA (06) MOTORCYCLE, JPN, VIN# JH2RE010-6K700001 TO JH2RE010-6K799999 FRAME Diagram

#

Description
Price

1

HOSE A, OIL

15510-MBN-670

Unavailable

2

BOLT A, OIL HOSE

15517-KCY-670

Unavailable

3

HOSE B, OIL

15520-MBN-670

Unavailable

4

PLATE

15630-MG3-010

$10.43

5

DIPSTICK, OIL

15650-MBN-670

$17.20

6

PIPE, OIL

15710-MBN-670

Unavailable

7

CLAMP, OIL PIPE

15711-MBN-670

Unavailable

8

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MBN-670ZA

$1,844.77

9

TUBE, BREATHER (7.3X335)

50185-MN1-670

Unavailable

10

STAY, MUFFLER

50219-MBN-670

Unavailable

11

PLATE, RR. ENGINE HANGER

50224-MBN-670

$25.25

12

NUT, ENGINE HANGER PLATE

50225-MBN-670

$5.57

13

PLATE, PROTECTOR

50232-MBN-670

$3.07

14

GUIDE, CABLE

50255-MBN-670

$8.52

15

FRAME ASSY., RR.

50300-MBN-670

Unavailable

16

PLATE, SKID *NH146M* (ACCURATE SILVER METALLIC)

50351-MBN-670ZC

$69.32

17

PLATE, R. ENGINE HANGER (UPPER)

50531-MBN-670

Unavailable

18

PLATE, L. ENGINE HANGER (UPPER)

50532-MBN-670

$41.01

19

PLATE, FR. ENGINE HANGER

50533-MBN-670

Unavailable

20

PLATE, ENGINE HANGER (LOWER)

50534-MBN-670

Unavailable

21

PLATE, R. ENGINE HANGER

50535-MBN-670

Unavailable

22

SLIDER, CHAIN GUIDE

50912-MBN-670

$22.20

23

TAPE B, SINGLE SEAT COWL

77227-MBG-300

$1.24

24

BOLT, FLANGE (10X75)

90101-KZ1-600

Unavailable

25

BOLT, SOCKET (8X38)

90102-MBN-670

$2.39

26

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.54

27

BOLT, FLANGE (10X109)

90152-MBN-671

$3.29

28

BOLT, FLANGE (10X111)

90154-MBN-670

Unavailable

29

BOLT, FLANGE (10X114)

90156-MBN-670

Unavailable

30

BOLT, FLANGE (8X72)

90157-MBN-670

Unavailable

31

BOLT, FLANGE (8X101)

90158-MBN-670

Unavailable

32

BOLT, FLANGE (8X65)

90159-MBN-670

Unavailable

33

BOLT, FLANGE (8X115)

90161-MBN-670

$3.26

34

NUT, CAP (8MM)

90301-KBW-940

$3.75

35

CLAMP, TUBE (D12.5)

90311-MN1-670

Unavailable

36

WASHER, PLAIN (8MM)

90410-SD3-660

$9.83

37

WASHER, SEALING (8MM)

90442-028-000

$1.61

38

COLLAR (8MM)

90450-KG8-000

$4.45

39

WASHER (8MM)

90451-KAF-000

Unavailable

40

WASHER

90501-MT2-000

$1.87

41

WASHER

90529-126-770

$1.83

42

O-RING (18X3) (ARAI)

91302-KE8-003

$2.38

43

GASKET, RUBBER (10.5MM)

91302-MG2-792

$3.77

44

O-RING (9.8X1.9)

91305-PE2-003

$2.41

45

NUT, FLANGE (8MM)

94050-08000

$0.86

46

NUT, FLANGE (10MM)

94050-10000

$1.41

47

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

48

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

49

PIN, DOWEL (10X16)

94301-10160

$2.24

50

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

51

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

52

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

53

BOLT, FLANGE (8X18)

96300-08018-00

$1.64

54

BOLT, FLANGE (8X35)

96300-08035-00

$1.78

55

BOLT, FLANGE (8X40)

96300-08040-00

$1.94

56

BOLT, SOCKET (8X28)

96700-08028-10

$1.59

57

STRAINER, OIL

15500-KCZ-000

$41.49

59

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

$2.80

59

O-RING (25X3)

91305-384-750

$2.80

60

CLIP (2X70)

91413-679-000

$8.30

61

BOLT, FLANGE (6X12)

96300-06012-00

$0.86
