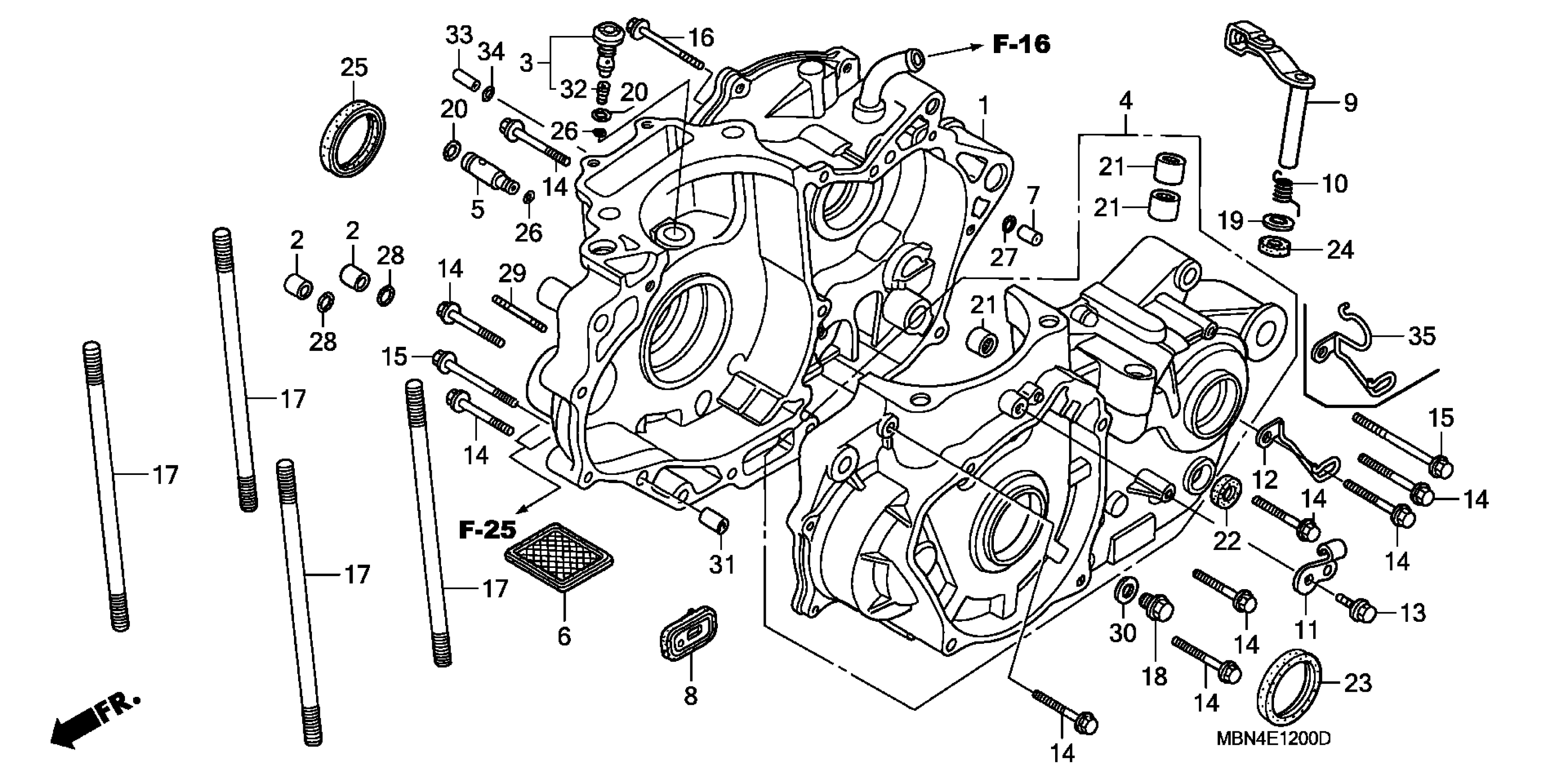

Honda XR650RA (05) MOTORCYCLE, JPN, VIN# JH2RE010-5K600001 TO JH2RE010-5K609999 CRANKCASE Diagram

CRANKCASE, R.

11100-MBN-671

Unavailable

COLLAR (12X10)

11134-MBN-670

Unavailable

JET, OIL

11145-MBN-670

Unavailable

CRANKCASE, L.

11200-MBN-670

Unavailable

VALVE ASSY., RELIEF

15220-MBN-670

Unavailable

SCREEN, OIL FILTER

15421-428-000

$17.82

ORIFICE (1.5MM)

15515-MBN-670

$5.10

VALVE, REED

18601-MBW-003

$17.16

LEVER, CLUTCH

22810-MBN-670

Unavailable

SPRING, CLUTCH LEVER

22815-MG3-000

$4.48

RECEIVER, CLUTCH CABLE

22821-MBN-670

$8.03

CLAMP, ALTERNATOR WIRE

32111-MBN-670

$6.15

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE

90004-GHB-770

$5.44

BOLT, STUD (12X187)

90031-MBN-670

$7.85

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER, BRAKE ARM

90525-GC4-700

$2.34

O-RING (8.5X1.7)

90751-GK1-003

$2.70

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

OIL SEAL (34X54X6)

91203-MBN-671

$9.07

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

OIL SEAL (35X45X6)

91207-MBN-671

$7.61

O-RING (7X1.7)

91301-473-003

$2.72

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (P7)

91362-VD6-000

$1.49

O-RING (11.9X2.2)

91370-461-000

$2.39

BOLT, STUD (6X45)

92900-06045-0B

$1.93

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

JET, MAIN (#80)

99101-GHB-0800

$10.65

COLLAR (6MM)

14514-115-300

Unavailable

O-RING (5.5X1.4)

91319-ME5-003

$1.85
