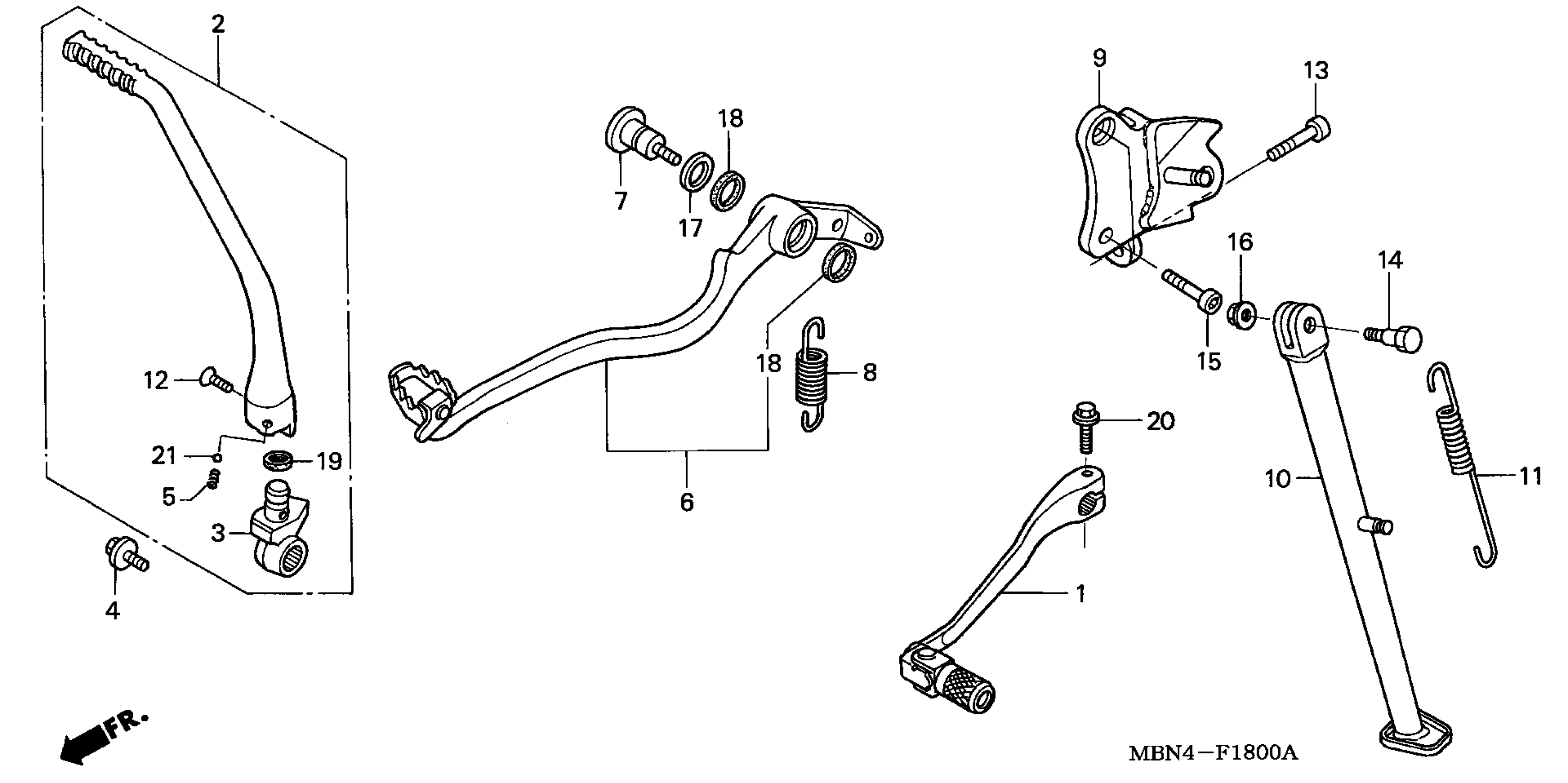

Honda XR650RA (04) MOTORCYCLE, JPN, VIN# JH2RE010-4K500001 TO JH2RE010-4K599999 PEDAL + STAND Diagram

PEDAL, GEARSHIFT

24700-MBN-670

Unavailable

ARM ASSY., KICK STARTER

28300-MBN-670

Unavailable

JOINT, KICK ARM

28302-MBN-670

Unavailable

BOLT, KICK JOINT

28306-KAE-770

$7.72

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

PEDAL, RR. BRAKE

46510-MBN-650

$189.89

PEDAL, RR. BRAKE This part replaces 46510-MBN-670.

46510-MBN-650

$189.89

SHAFT, BRAKE PIVOT

46513-MBN-670

$15.95

SPRING, BRAKE PEDAL

46514-MBN-670

Unavailable

BRACKET, SIDE STAND This part replaces 50150-MBN-670.

50150-MBN-671

$68.26

BRACKET, SIDE STAND

50150-MBN-671

$68.26

BAR, SIDE STAND

50530-MBN-670

$68.96

SPRING, SIDE STAND

50535-KN5-670

$6.54

SCREW, OVAL (6X28)

90101-KCY-760

$1.62

BOLT, SOCKET (10X35)

90114-MBN-670

$4.33

SCREW, SIDE STAND PIVOT

90108-KV6-000

$12.10

BOLT, SOCKET (8X27)

90113-MBN-670

$2.79

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

WASHER, SPECIAL (22X8.5X2)

90436-VA3-000

$3.35

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST SEAL (19X25X4.1) (ARAI) This part replaces 91303-KA3-731.

91303-KA3-732

$5.54

DUST SEAL (19X25X4.1) (ARAI)

91303-KA3-732

$5.54

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
