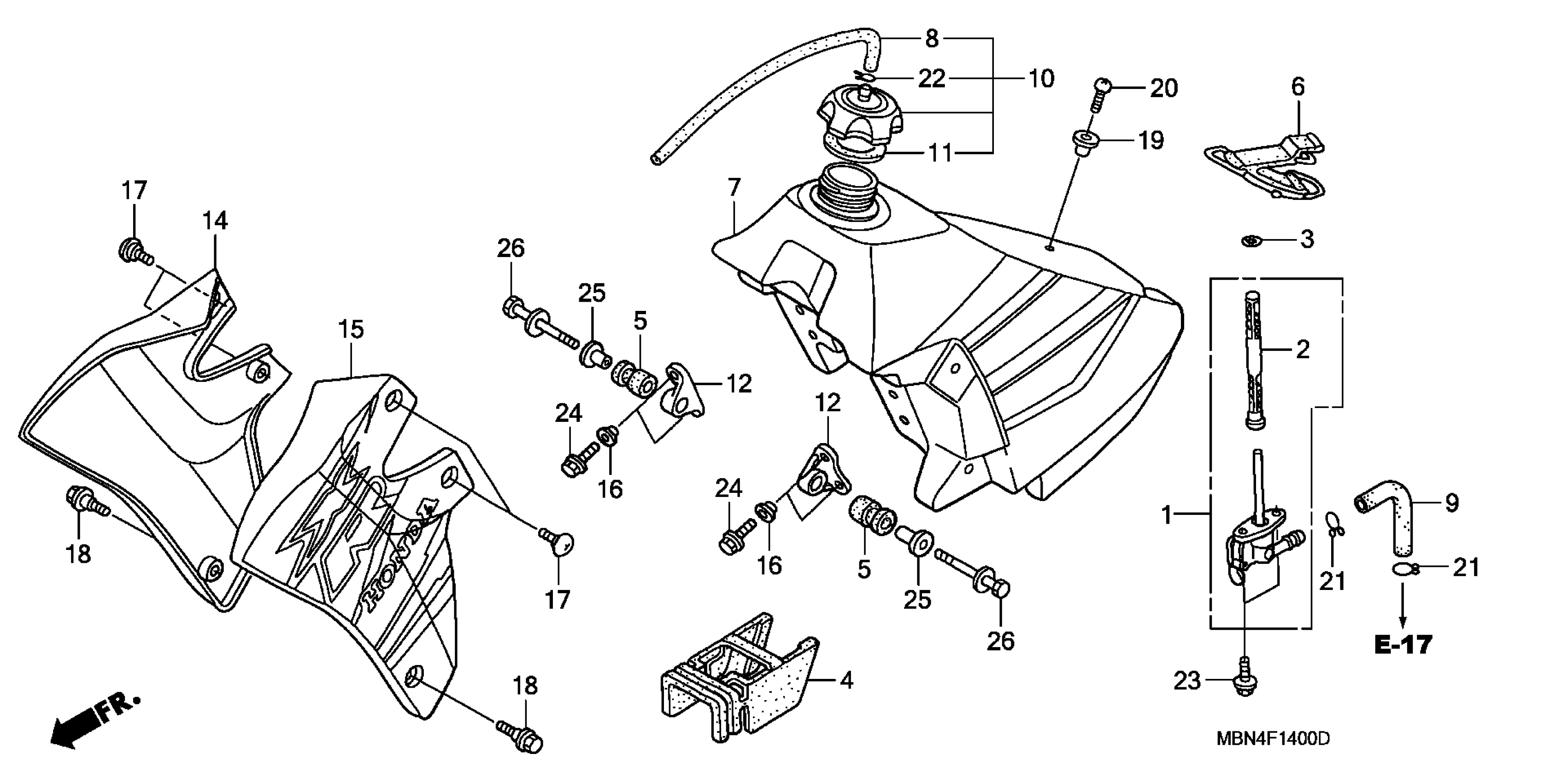

Honda XR650RA (03) MOTORCYCLE, JPN, VIN# JH2RE010-3M400001 TO JH2RE010-3M449999 FUEL TANK Diagram

PETCOCK ASSY.

16950-MBN-671

$80.61

SCREEN SET, FUEL STRAINER

16952-KCY-671

$29.49

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17506-MBN-670

Unavailable

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

BAND, RR. TANK

17516-GBF-830

$31.28

TANK SET, FUEL (TYPE1) (WL)

17520-MBN-900ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

TUBE C, FUEL

17536-MBN-670

$2.92

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-MBN-900ZA

Unavailable

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-MBN-900ZA

Unavailable

COLLAR

84706-415-000

$2.23

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.90

BOLT, FLANGE (6MM)

90111-162-000

$2.89

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

SCREW, PAN (6X20)

93500-06020-0A

$1.49

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

COLLAR, TANK SETTING

17509-KS6-700

$9.13

BOLT-WASHER (6X40)

93404-06040-00

$1.49
