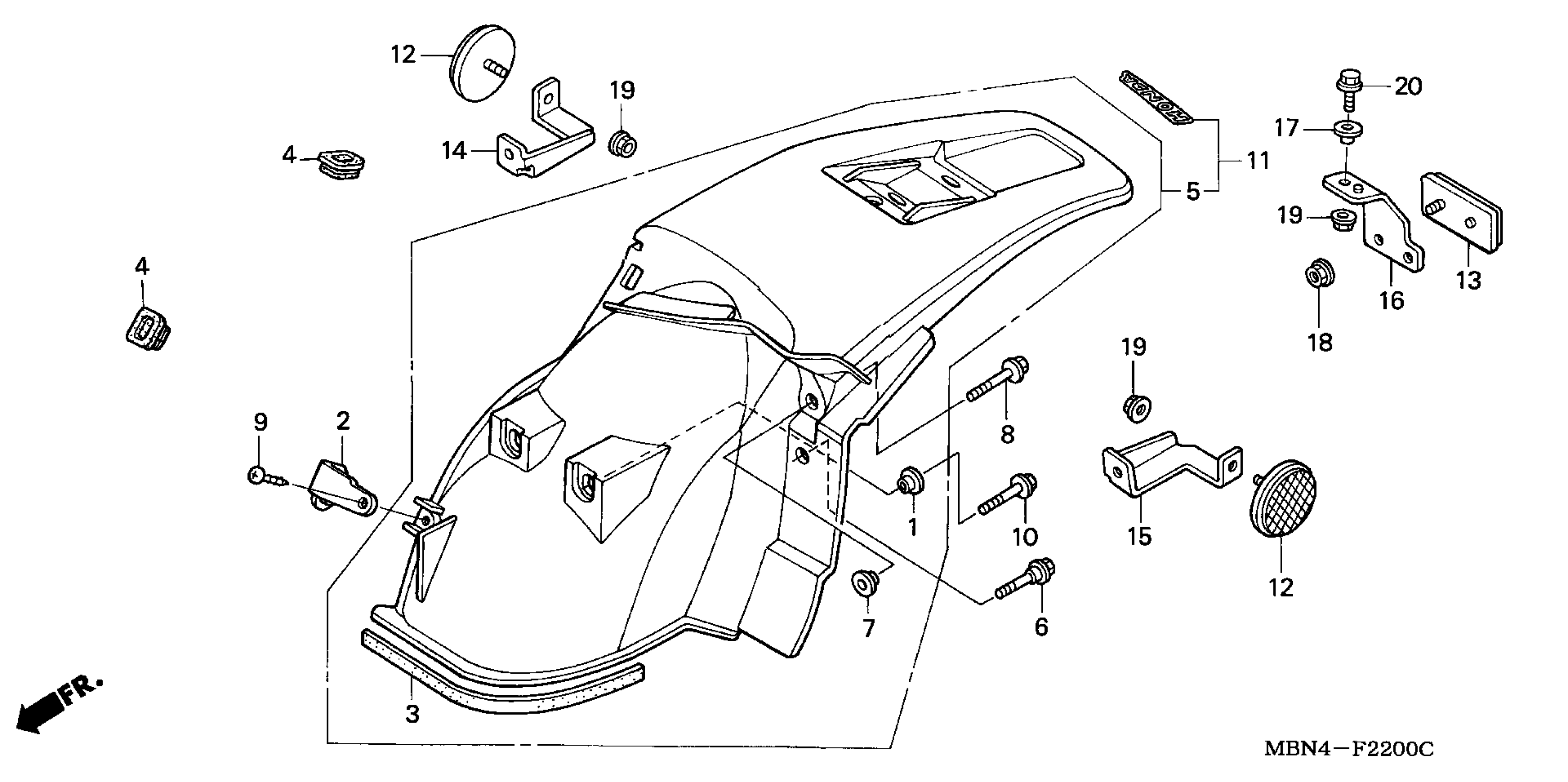

Honda XR650RA (01) MOTORCYCLE, JPN, VIN# JH2RE010-1K200001 TO JH2RE010-1K299999 REAR FENDER Diagram

COLLAR, FR. WHEEL COVER

44125-MN5-000

$5.12

STAY, RESERVE TANK

80105-MBN-670

Unavailable

RUBBER, SEALING

80106-MBN-670

$3.52

GROMMET, CORD

80115-MBN-670

$3.18

BOLT, FR. FENDER FIXING

90106-MN9-000

$3.44

COLLAR (6.2X6.8)

90505-MBN-670

$2.79

BOLT-WASHER (6X22)

93404-06022-00

$1.49

SCREW, TAPPING (5X12)

93911-25220

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

FENDER SET, RR. *R134* (WL) (FIGHTING RED) This part replaces 80120-MBN-700ZA.

80120-MBN-830ZA

$115.94

FENDER SET, RR. *R134* (WL) (FIGHTING RED)

80120-MBN-830ZA

$115.94
