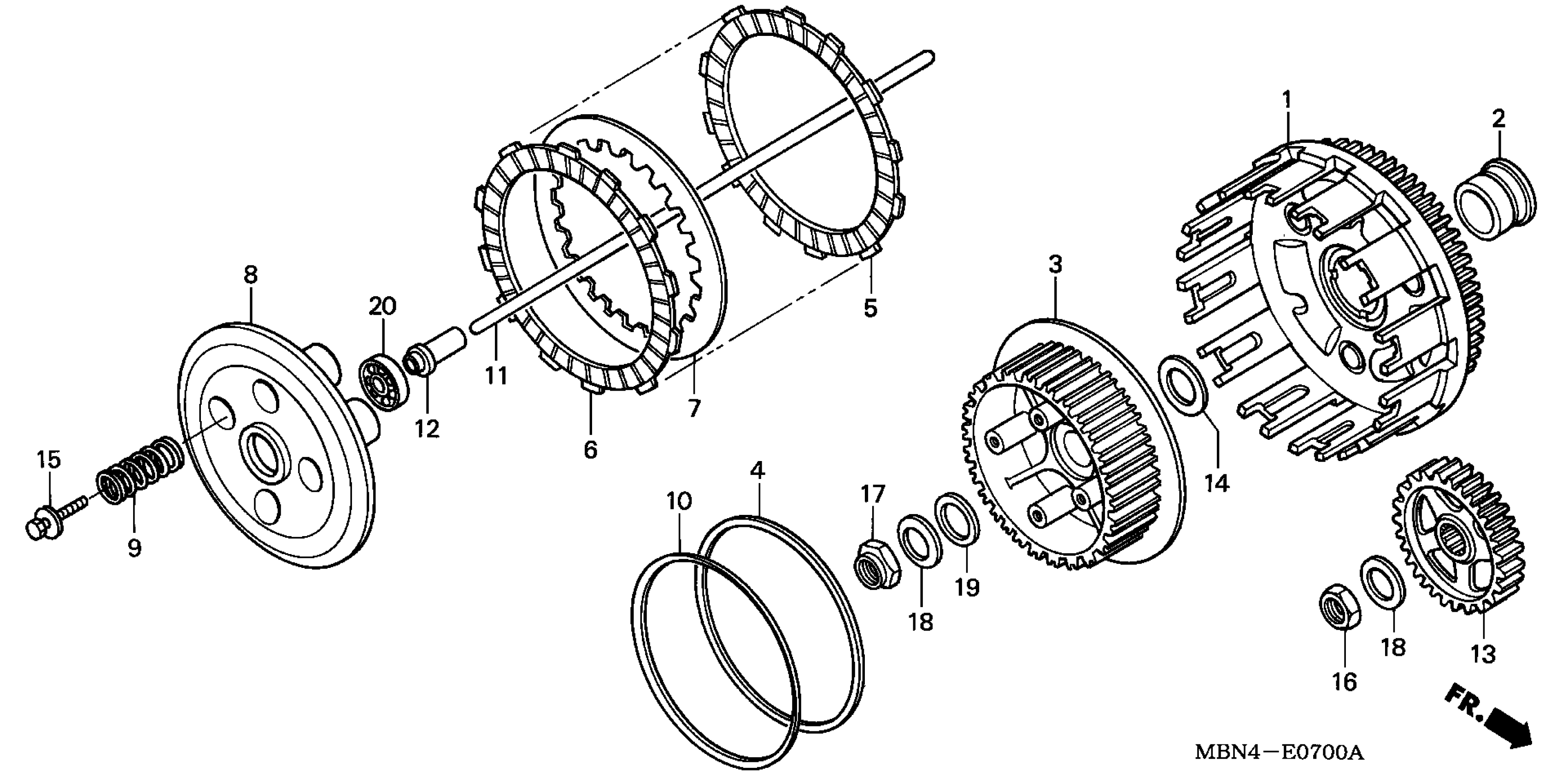

Honda XR650RA (01) MOTORCYCLE, JPN, VIN# JH2RE010-1K200001 TO JH2RE010-1K299999 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-MBN-000

Unavailable

CLUTCH (OUTER)

22100-MBN-670

$329.85

GUIDE, CLUTCH (OUTER) | Use up to Engine SN 5116827 This part replaces 22116-MBN-670.

22116-MBN-671

$24.11

GUIDE, CLUTCH (OUTER)

22116-MBN-671

$24.11

CENTER, CLUTCH

22121-MBN-670

$126.06

SEAT, JUDDER SPRING

22125-MBN-670

$8.11

DISK, CLUTCH FRICTION

22201-MBN-670

$20.06

DISK, CLUTCH FRICTION

22201-MW3-960

$14.76

PLATE, CLUTCH

22321-MG3-000

$19.41

PLATE, CLUTCH PRESSURE

22350-MBN-670

Unavailable

SPRING, CLUTCH

22401-MBN-670

$5.05

SPRING, JUDDER

22402-MBN-670

$21.34

ROD, CLUTCH LIFTER

22850-MBN-670

Unavailable

LIFTER, CLUTCH

22853-MBN-670

Unavailable

GEAR, PRIMARY DRIVE (43T)

23121-MBN-670

$112.75

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

NUT (18MM)

90235-MN1-670

$8.66

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER, LOCK

90432-428-000

$7.57

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
