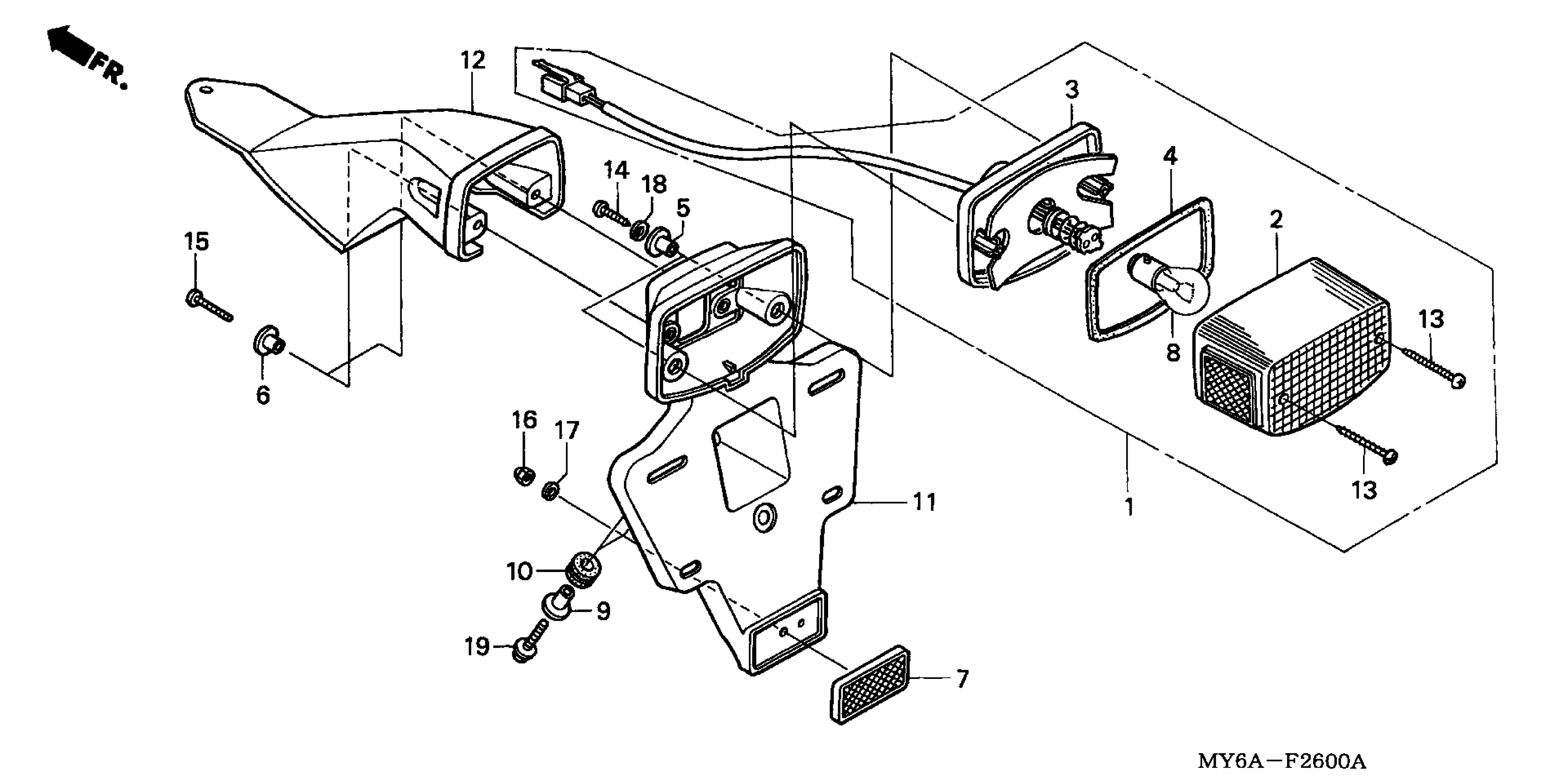

Honda XR650LAC/A (04) MOTORCYCLE, JPN, VIN# JH2RD061-4M210001 TO JH2RD061-4M249999 TAILLIGHT Diagram

TAILLIGHT UNIT (12V 32/3CP) (COO) (STANLEY)

33701-MGW-305

$107.06

TAILLIGHT UNIT (12V 32/3CP) (COO) (STANLEY) This part replaces 33701-MY6-671.

33701-MGW-305

$107.06

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.56

SOCKET, TAILLIGHT

33703-MY6-671

$77.58

GASKET, TAILLIGHT LENS

33709-KB7-003

$3.92

COLLAR A, TAILLIGHT

33712-GC2-000

$2.83

COLLAR, TAILLIGHT

33713-KJ2-000

$4.80

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.09

COLLAR, CHAIN CASE TAIL

40521-437-000

$4.70

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

BRACKET, NUMBER PLATE

84701-KV6-670

$68.40

RUBBER, TAILLIGHT

84702-KN5-780

$49.93

SCREW, TAPPING (4X40)

90104-KAF-000

$2.46

SCREW, PAN (5X18)

93500-05018-0G

$0.42

SCREW, PAN (5X25)

93500-05025-0G

$0.68

NUT, CAP (5MM)

94021-05020-0S

$0.62

WASHER, SPRING (5MM)

94111-05000

$1.03

WASHER, SPRING (5MM)

94111-05700

$1.03

BOLT, FLANGE (6X25)

96300-06025-00

$1.33
