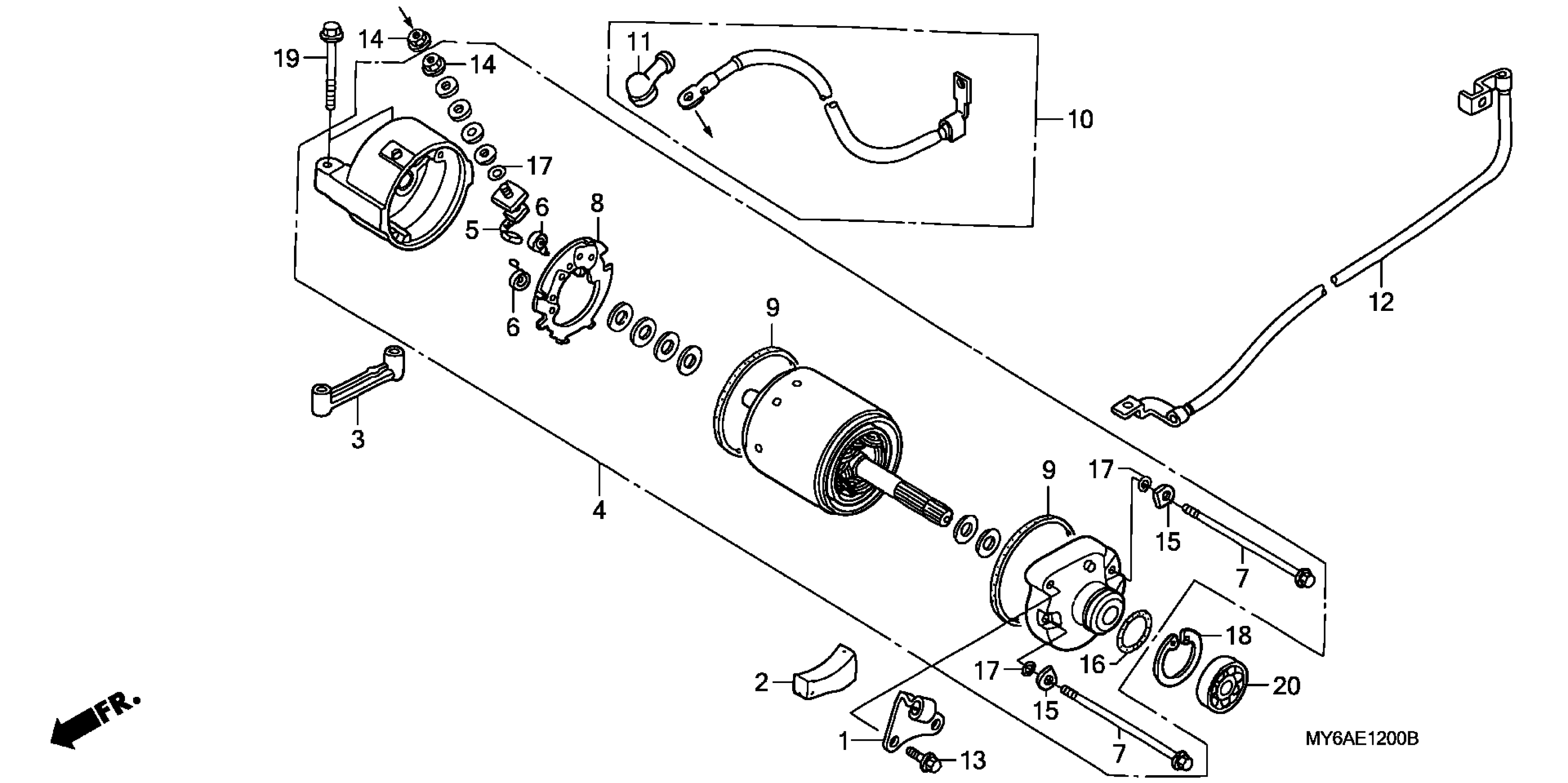

Honda XR650LAC/A (04) MOTORCYCLE, JPN, VIN# JH2RD061-4M210001 TO JH2RD061-4M249999 STARTING MOTOR Diagram

RECEIVER, CLUTCH CABLE

22838-MY6-880

$16.43

RUBBER, STARTER MOTOR

31031-MK5-000

$5.90

SPACER

31190-MK4-600

$24.31

MOTOR ASSY., STARTER

31200-MN9-013

$760.10

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-MN4-008

$5.80

HOLDER SET, BRUSH

31206-MN4-008

$23.32

RING (Honda Code 2541985)

31207-KS5-901

$3.12

CABLE, STARTER MOTOR

32410-MY6-670

$51.30

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

CABLE, BATTERY GROUND

32601-MY6-670

$46.69

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

NUT-WASHER (6MM)

90071-MB0-000

$1.97

WASHER, STEEL PLATE

90122-MN4-008

$2.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

CIRCLIP (INNER) (32MM)

94520-32000

$1.69

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
