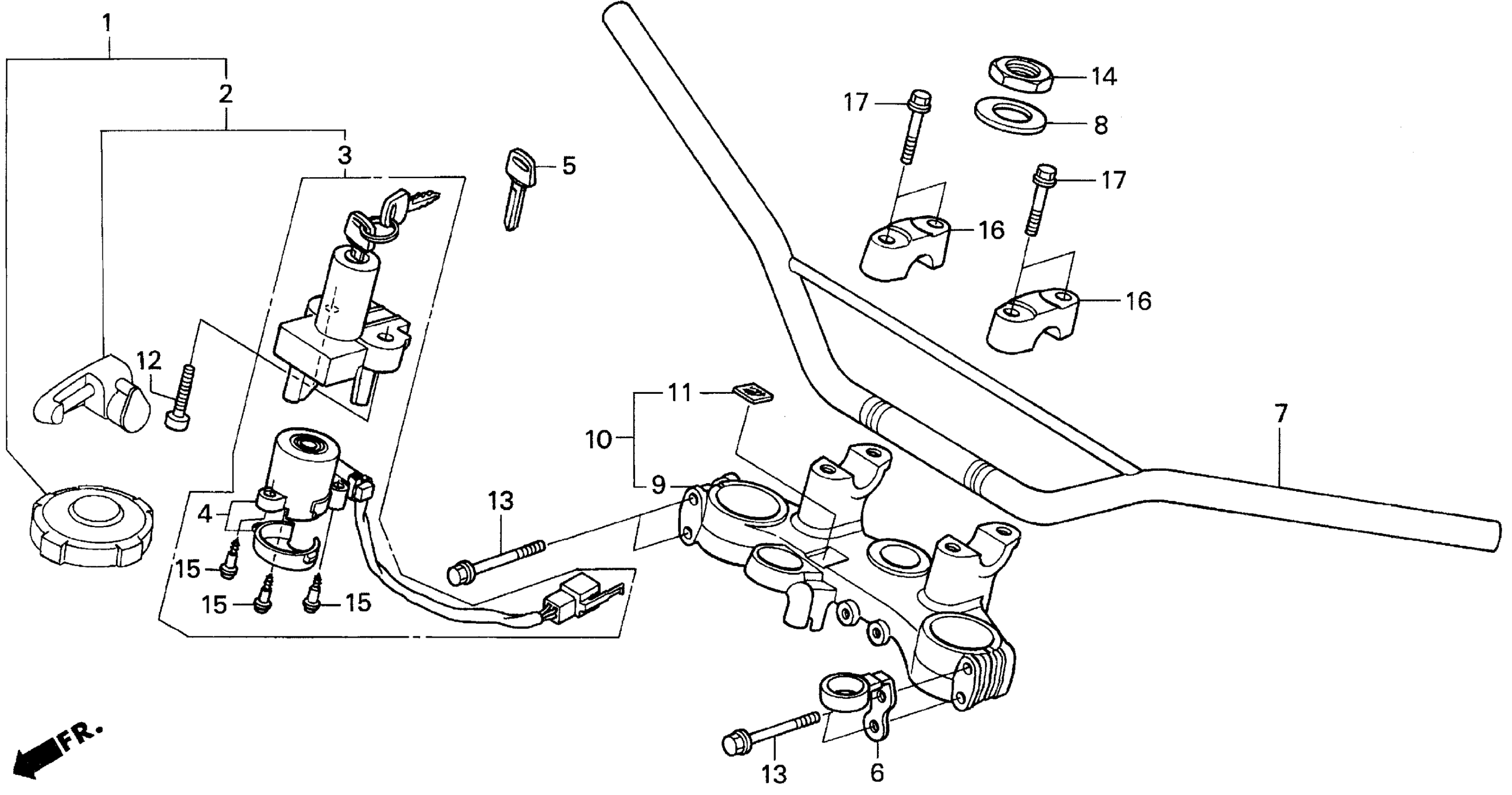

Honda XR650LAC (99) MOTORCYCLE, JPN, VIN# JH2RD061-XK700001 HANDLEBAR Diagram

LOCK SET

35010-MY6-680

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MY6-671

$172.79

BASE, CONTACT

35101-MY6-671

$71.87

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

GUIDE, BRAKE HOSE

45470-KBR-000

$24.28

HANDLEBAR, R. HANDLEBAR *NH146M*

53100-MY6-700

Unavailable

WASHER, DUST SEAL

53215-GF8-000

$4.17

BRIDGE, FORK TOP

53300-MY6-700

$368.95

MARK, WING

87122-KW3-770

$8.68

BOLT, SOCKET (8X25)

90100-KAE-000

$4.10

BOLT, FLANGE (8X53)

90103-MM0-620

$3.89

NUT, STEERING STEM

90304-KA3-710

$15.77

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
