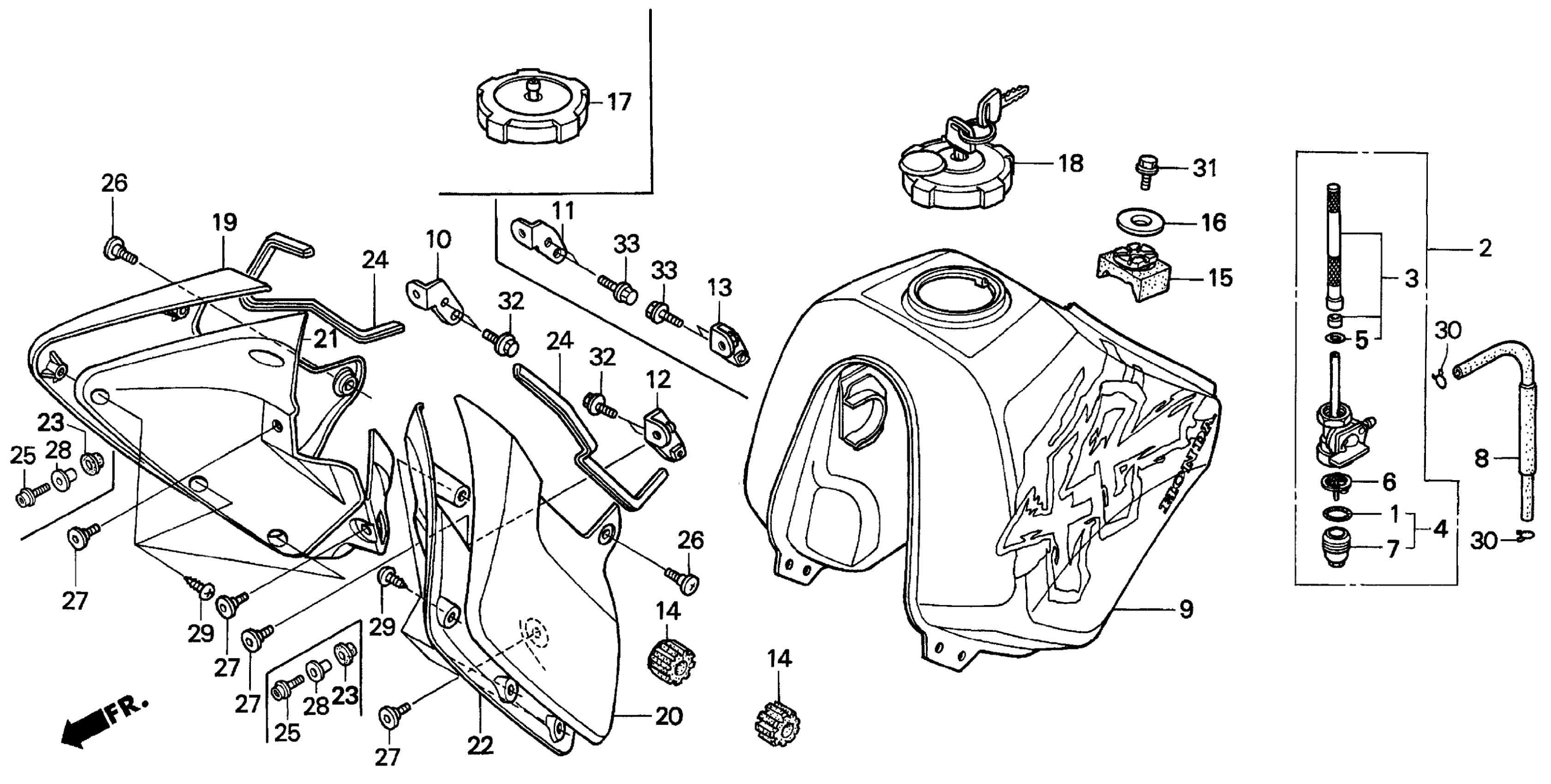

Honda XR650LAC (98) MOTORCYCLE, JPN, VIN# JH2RD061-WM500001 TO JH2RD061-WM500216 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY.

16950-MY6-791

$90.39

3

SCREEN SET, FUEL STRAINER

16952-HA8-005

$48.23

4

CUP SET, FUEL STRAINER

16953-GT4-305

$24.18

5

O-RING

16075-GHB-720

$2.93

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

8

TUBE, FUEL

17515-MY6-670

$9.98

9

TANK SET, FUEL (TYPE1) (WL)

17520-MY6-920ZA

Unavailable

11

STAY, R. SHROUD (INNER)

17523-MY6-700

$33.05

13

STAY, L. SHROUD (INNER)

17524-MY6-700

$52.72

14

CUSHION, FR. FUEL TANK

17611-MG2-000

$11.43

15

CUSHION, RR. FUEL TANK

17613-MY6-770

$17.07

16

WASHER, TANK MOUNT SETTING

17614-MY6-670

$11.95

17

CAP, FUEL FILLER This part replaces 17620-KE1-013.

17620-KE1-023

$42.29

19

SHROUD, R. *NH138* (SHASTA WHITE) SHROUD, R. *R134*

19030-MY6-700ZA

Unavailable

20

SHROUD, L. *NH138* (SHASTA WHITE) SHROUD, L. *R134*

19040-MY6-700ZA

Unavailable

21

PANEL, R. SHROUD (INNER) *NH157R* (HYPER GRAY) PANEL, R. SHROUD (INNER) *NH1*

19050-MY6-700ZA

Unavailable

22

PANEL, L. SHROUD (INNER) *NH157R* (HYPER GRAY) PANEL, L. SHROUD (INNER) *NH1*

19065-MY6-690ZA

Unavailable

23

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.62

24

MOLDING, SHROUD

64106-MY6-700

Unavailable

25

BOLT, FLANGE SOCKET (6X18)

90004-ML4-610

$2.90

26

SCREW, PAN (6X22)

90112-MS2-000

$3.67

27

SCREW, PAN (6X13)

90124-MY6-670

$2.61

28

COLLAR (6.6X6.8)

90505-MY6-700

$4.85

29

SCREW, TAPPING (4X12)

93903-24310

$1.49

30

CLIP, TUBE (B12)

95002-02120

$2.00

31

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

33

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
