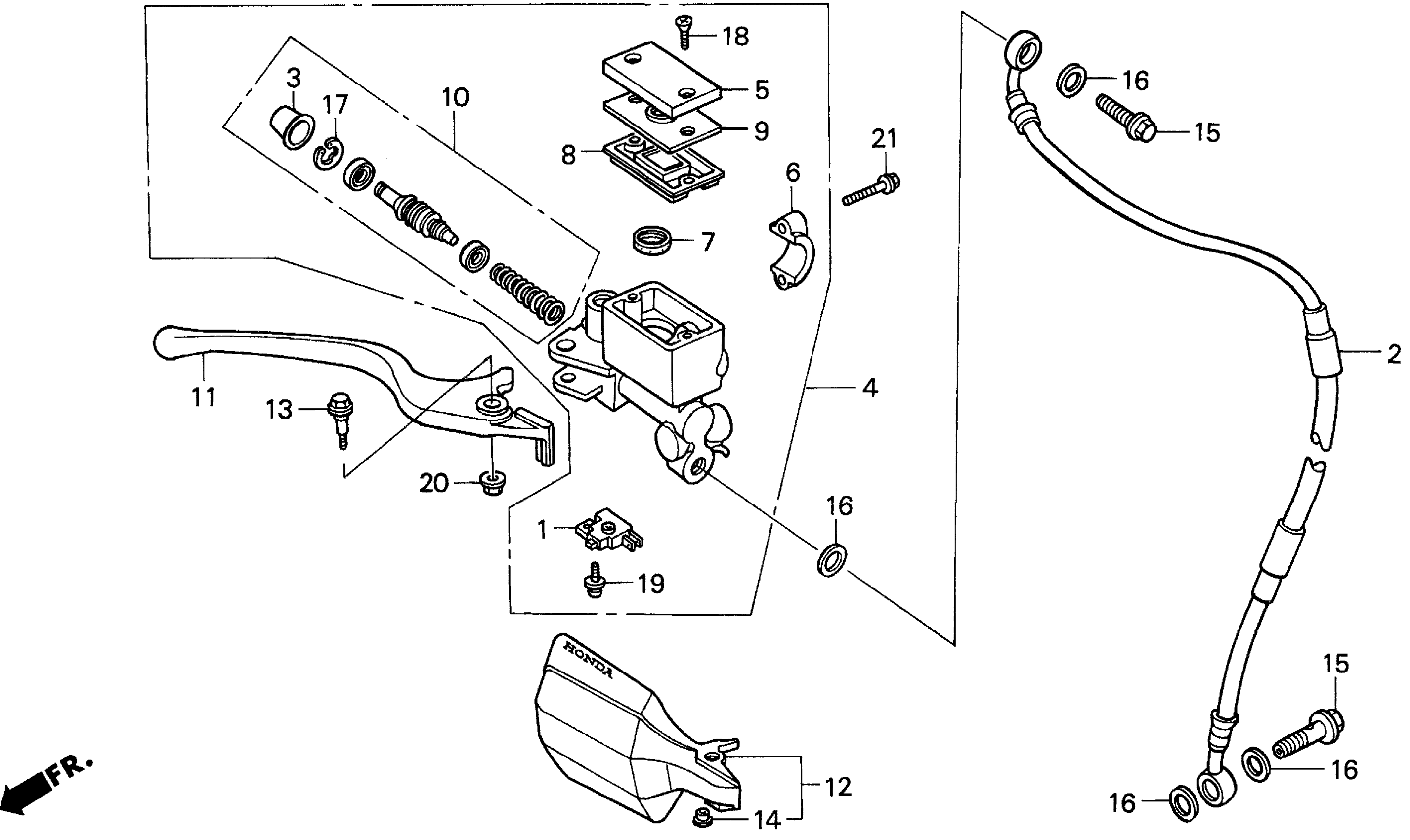

Honda XR650LAC (98) MOTORCYCLE, JPN, VIN# JH2RD061-WM500001 TO JH2RD061-WM500216 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, FR. BRAKE

45125-MY6-671

$94.77

3

BOOT

45504-410-003

$12.16

4

MASTER CYLINDER SUB-ASSY., FR. (COO) This part replaces 45510-KBR-651.

45510-MGW-305

$284.92

5

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

6

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

7

SEPARATOR

45518-MG3-016

$12.02

8

DIAPHRAGM

45520-MG7-006

$10.61

9

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

10

MASTER CYLINDER SET This part replaces 45530-KJ1-701.

45530-KJ1-702

$51.71

10

MASTER CYLINDER SET

45530-KJ1-702

$51.71

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KBR-000.

53175-MGW-305

$16.93

12

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE) GUARD, R. KNUCKLE *R134*

53180-KF0-770ZB

$41.43

13

BOLT, HANDLE LEVER PIVOT

90113-KF0-770

$5.73

14

COLLAR (6X4)

90127-KF0-770

$3.42

15

BOLT, OIL (10X22) | Use up to Frame SN WM500216 This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

15

BOLT, OIL (10X22) | Use up to Frame SN WM500216

90145-MS9-612

$7.54

15

BOLT, OIL (10X22) | Use from Frame SN WK600001

90145-MS9-612

$7.54

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

CIRCLIP

90651-MA5-671

$2.66

18

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

18

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

19

SCREW-WASHER (4X12)

93893-04012-07

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
