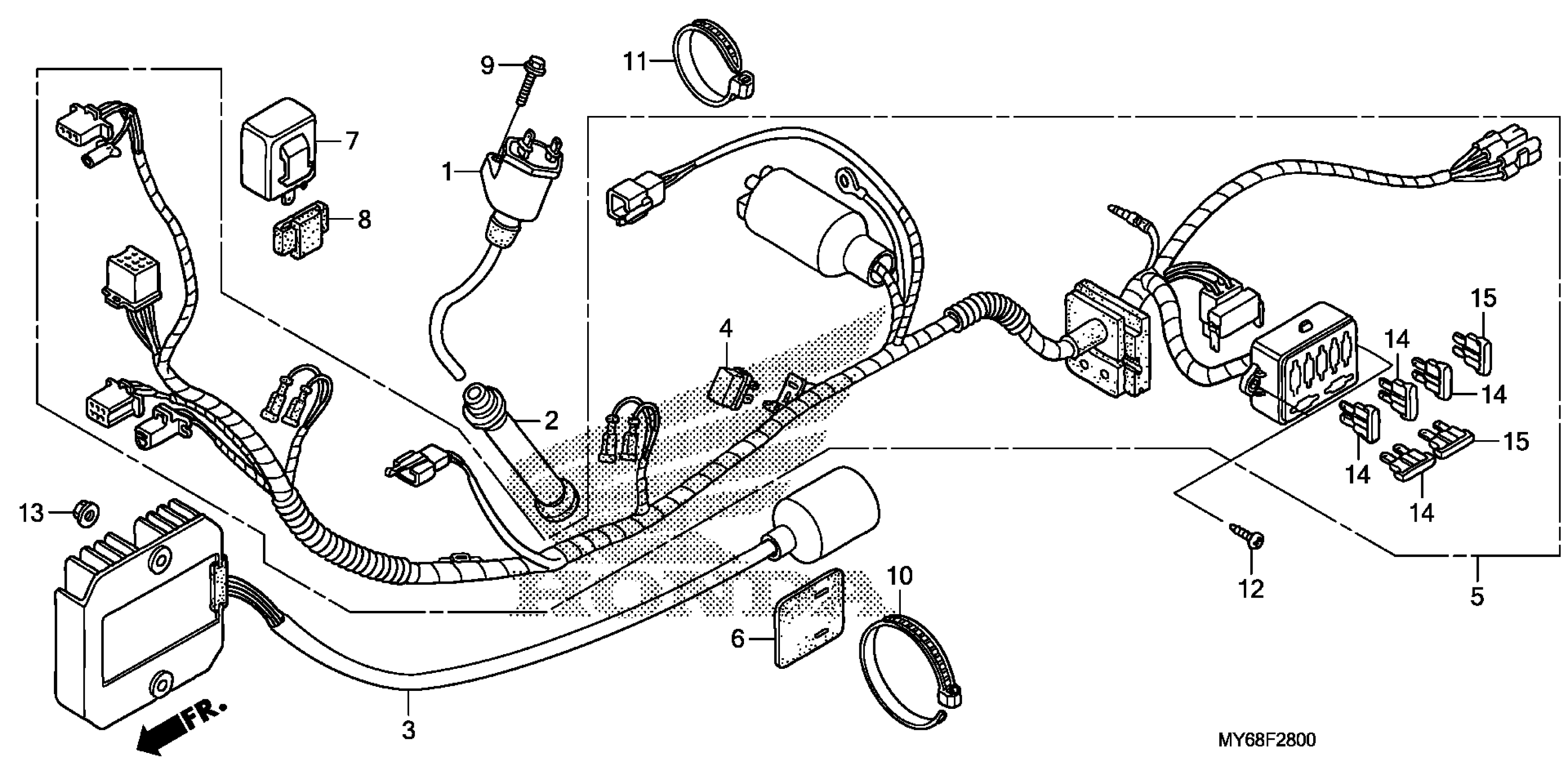

Honda XR650LAC (16) XR650L, JPN, VIN# JH2RD061-GK400001 TO JH2RD061-GK499999 WIRE HARNESS Diagram

COIL, IGNITION

30510-MN1-680

$77.44

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$18.93

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$18.93

CAP ASSY.

30700-MK4-612

$18.93

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MY6-671

$325.11

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS

32100-MY6-670

$453.44

RUBBER, PROTECTOR

32618-MN1-650

$5.64

RELAY, TURN SIGNAL (MITSUBA)

38301-GN3-672

$61.82

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

BOLT, FLANGE (5X20)

90197-MN5-000

$2.52

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SCREW, TAPPING (5X12)

93901-25220

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (20A) FUSE (F20) (LITTEL)

98200-32000

$1.49
