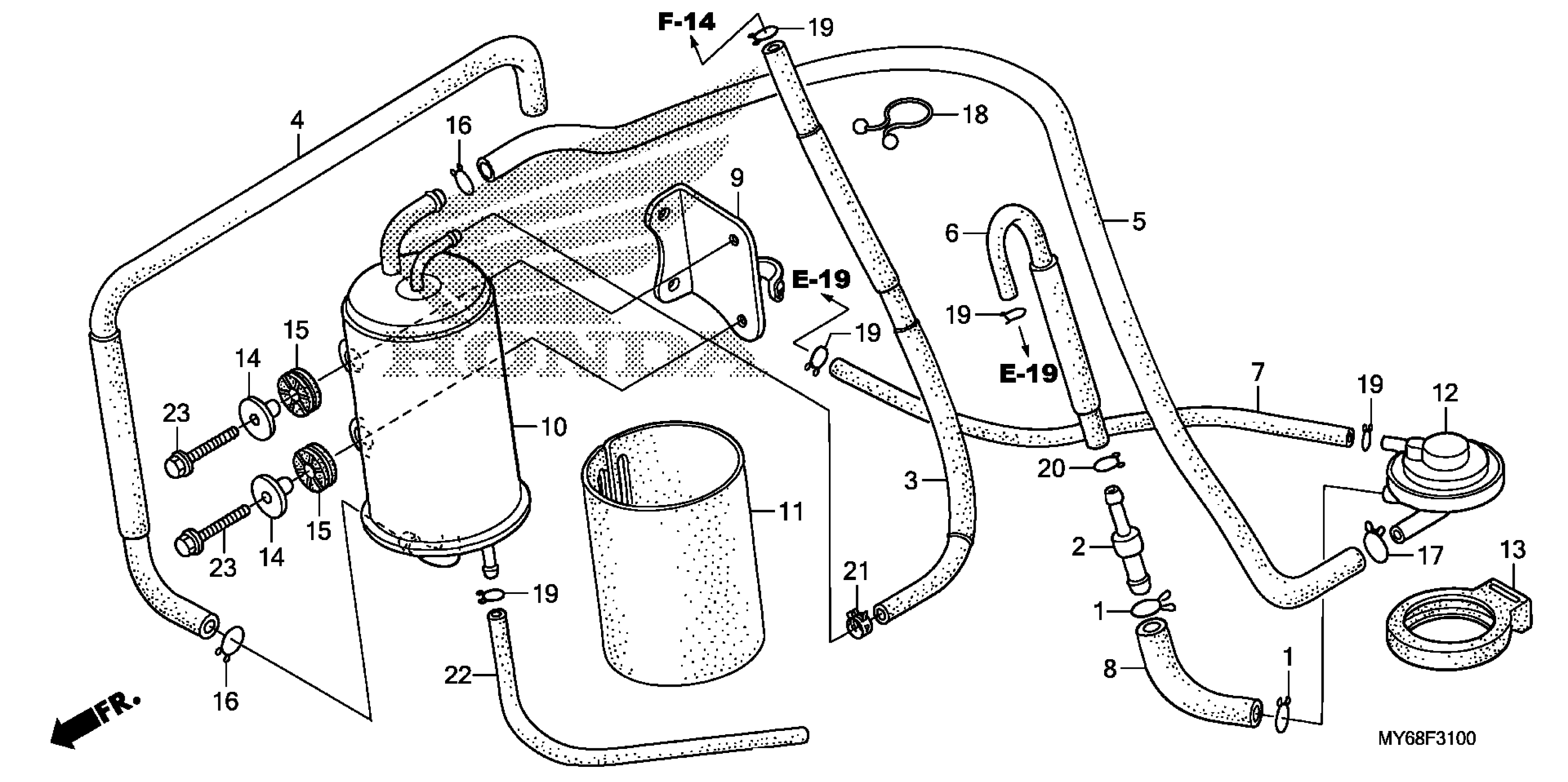

Honda XR650LAC (16) XR650L, JPN, VIN# JH2RD061-GK400001 TO JH2RD061-GK499999 EVAP CANISTER (AC) Diagram

CLIP, BREATHER TUBE

15772-551-000

$2.05

JOINT, FUEL TUBE

16966-MR1-000

$7.57

TUBE ASSY. (TANK-EVAP CANISTER)

17305-MY6-L80

$54.54

TUBE ASSY. (EVAP CANISTER-AIR)

17306-MY6-680

$39.59

TUBE, CANISTER PURGE CONTROL VALVE

17308-MY6-680

$24.72

TUBE A, P.C.V.-CARBURETOR AIR VENT

17309-MY6-680

$26.31

TUBE

17310-MY6-680

$21.43

TUBE B, P.C.V.-CARBURETOR AIR VENT

17313-MY6-680

$18.15

STAY, CANISTER

17315-MY6-680

$40.95

EVAPORATIVE EMISSION CANISTER (TOYO ROKI)

17410-MY6-682

$351.11

COVER, CANISTER

17411-MG8-730

$13.85

EVAPORATIVE EMISSION PURGE CONTROL VALVE

17440-MS2-721

$127.44

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

COLLAR, SETTING

61104-422-000

$6.91

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

CLIP, TUBE (B14)

90651-KM9-000

$1.79

CLIP, TUBE (B14)

90654-MK3-780

$2.74

BAND, TUBE

90683-GS9-670

$2.45

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90

CLAMP, TUBE (D8)

95002-40800-08

$2.25

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14

BOLT, FLANGE (6X22)

96300-06022-00

$1.49
