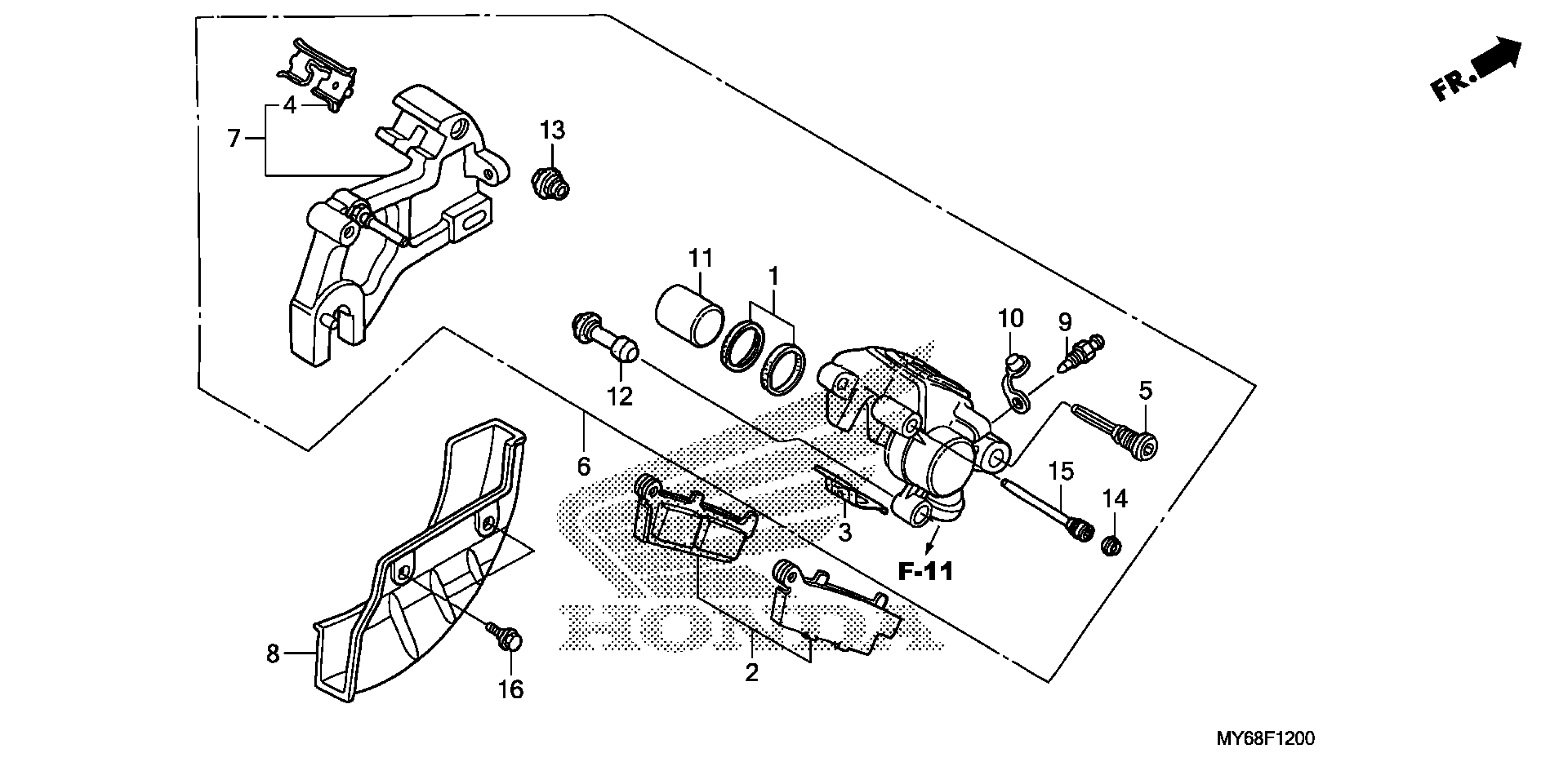

Honda XR650LAC (14) XR650L, JPN, VIN# JH2RD061-EK200001 TO JH2RD061-EK299999 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, RR. BRAKE

43105-MY6-415

$24.93

SPRING, PAD

43108-MY6-671

$5.04

RETAINER

43112-KS6-701

$5.80

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MFB-006

$204.40

BRACKET SUB-ASSY., RR. CALIPER

43190-MFB-006

$136.91

COVER, RR. DISK

43330-KZ1-670

$20.40

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-KA3-732

$10.56

BOLT, FLANGE (6X10)

90020-ZV0-000

$1.35
