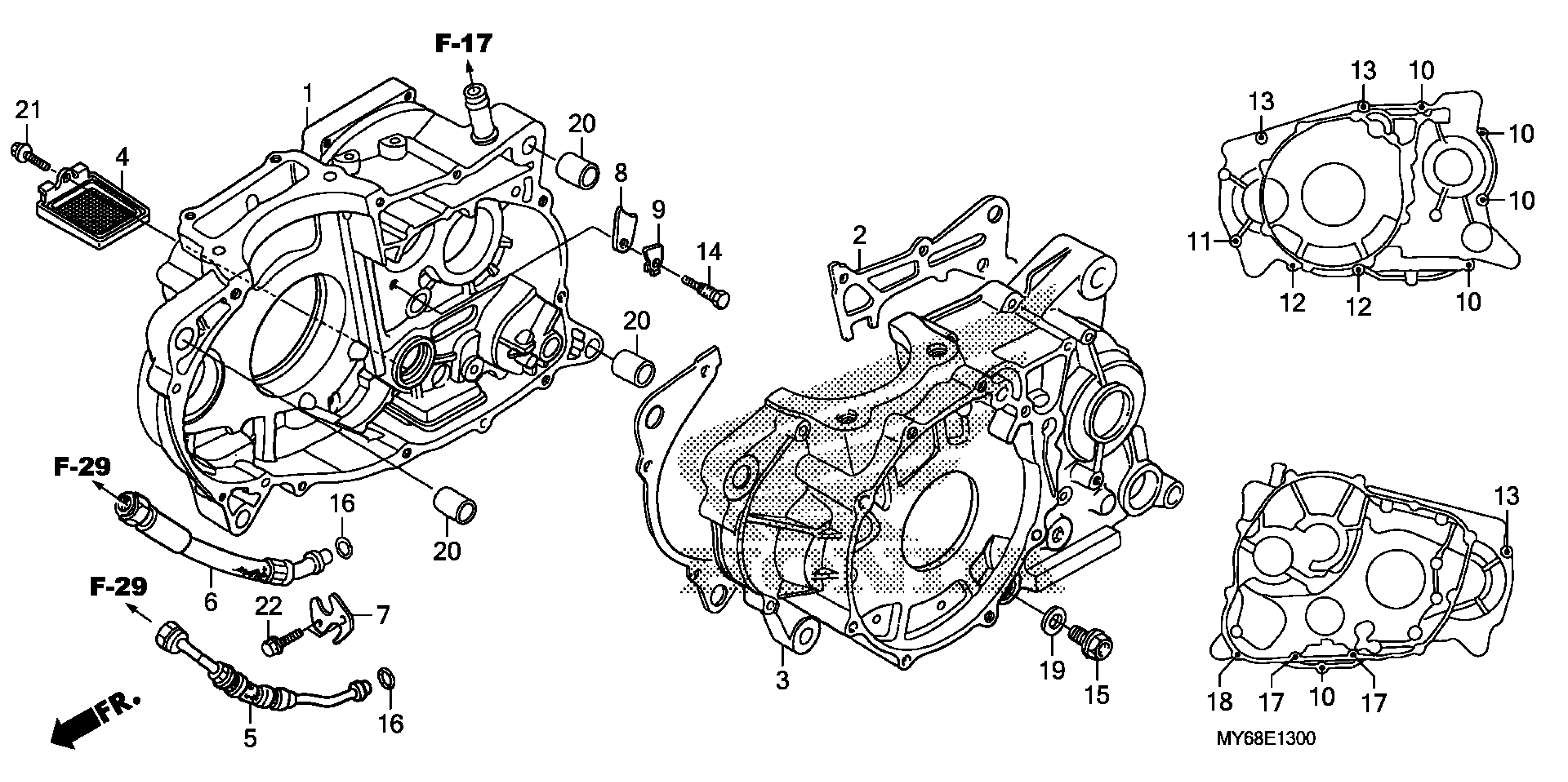

Honda XR650LAC (09) XR650L, JPN, VIN# JH2RD061-9K700001 TO JH2RD061-9K799999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MY6-671

$500.46

2

GASKET, CRANKCASE | Use up to Engine SN 2933281. This part replaces 11191-MN1-700.

11191-MN1-702

$24.06

2

GASKET, CRANKCASE This part replaces 11191-MN1-701.

11191-MN1-702

$24.06

2

GASKET, CRANKCASE

11191-MN1-702

$24.06

3

CRANKCASE, L.

11200-MY6-670

$536.79

4

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

5

HOSE A, OIL

15610-MN1-702

$120.34

6

HOSE B, OIL

15620-MN1-670

$118.87

7

PLATE

15630-MG3-010

$11.46

8

PLATE, BEARING SETTING

23521-MAN-690

$6.48

9

WASHER, LOCK (8MM)

23523-MG2-790

$3.20

10

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

11

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

12

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.22

13

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

14

BOLT, SPECIAL (8MM)

90088-MG3-000

$6.31

15

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

15

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

16

GASKET, RUBBER (10.5MM)

91302-MG2-792

$4.06

17

BOLT 2, STUD (6X22)

92900-06022-0E

$1.49

18

BOLT 2, STUD (6X35)

92900-06035-0E

$1.62

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

20

PIN A, DOWEL (14X20)

94301-14200

$2.28

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
