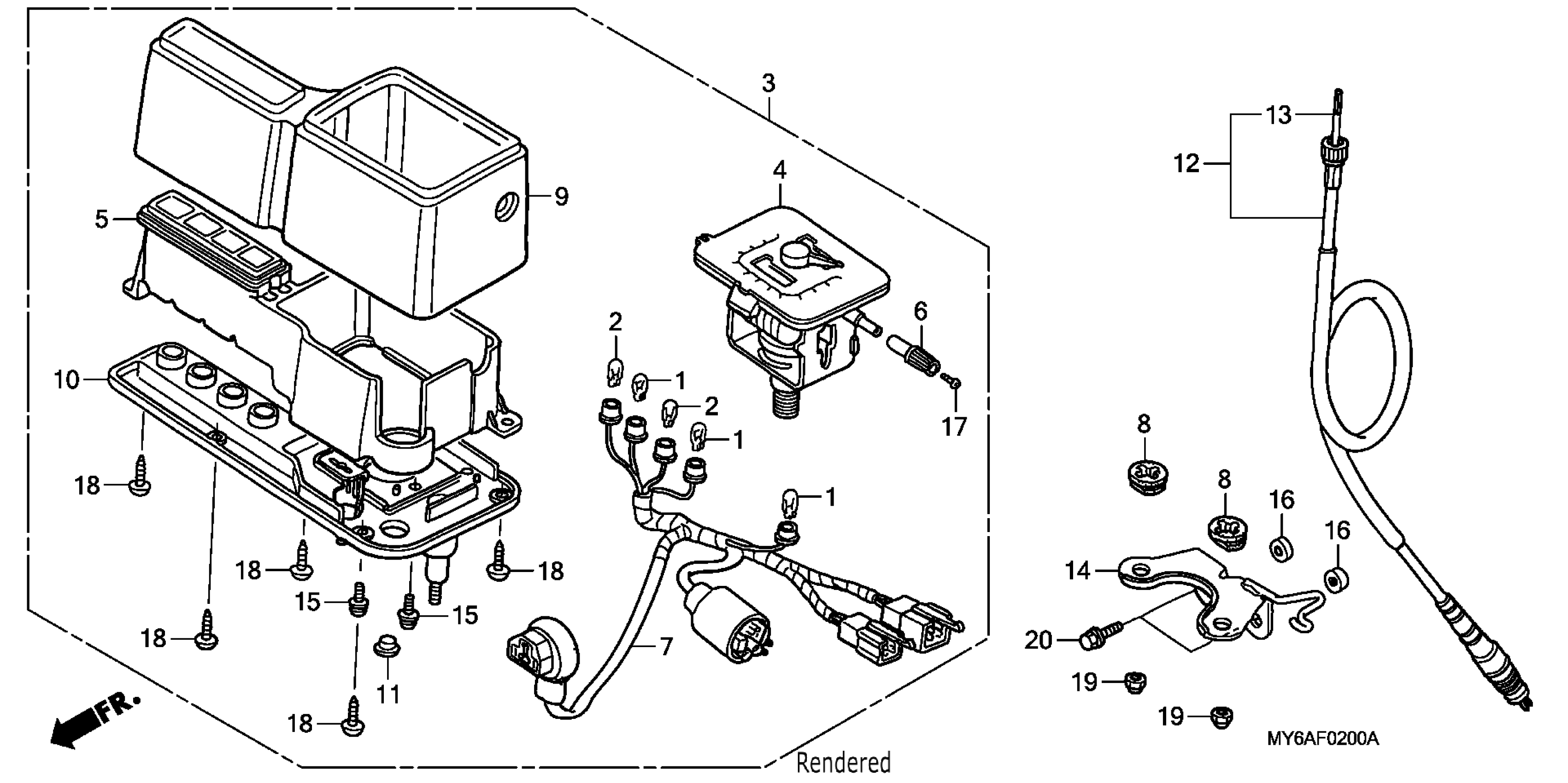

Honda XR650LAC (06) MOTORCYCLE, JPN, VIN# JH2RD061-6K400001 TO JH2RD061-6K499999 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

3

SPEEDOMETER ASSY. (MPH) This part replaces 37200-MY6-671.

37200-MY6-672

Unavailable

4

SPEEDOMETER This part replaces 37210-MY6-671.

37210-MY6-672

$151.61

4

SPEEDOMETER

37210-MY6-672

$151.61

5

CASE ASSY. (INNER)

37211-MY6-671

Unavailable

6

KNOB

37220-KR3-671

$11.09

7

SOCKET

37223-MY6-671

$118.15

8

RUBBER, SPEEDOMETER MOUNTING

37243-MG2-000

$4.21

9

CASE ASSY. (UPPER) (COO) This part replaces 37610-KBR-008.

37610-MGW-305

$66.10

9

CASE ASSY. (UPPER) (COO)

37610-MGW-305

$66.10

10

CASE ASSY. (LOWER)

37617-MY6-671

$63.28

11

CAP, SPEED ALARM WIRE

37618-MB2-008

$2.23

12

CABLE, SPEEDOMETER

44830-MZ1-000

$40.80

13

CABLE (INNER)

44831-MS2-000

$9.18

14

STAY, SPEEDOMETER

61315-KR5-000

$24.03

15

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

16

WASHER (9X20X6)

90114-MY6-700

$3.38

17

SCREW, PAN (2X6)

90158-KM7-911

$1.92

18

SCREW, TAPPING (4X12)

93903-24380

$1.49

19

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

19

NUT, CAP (6MM)

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

19

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

20

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
