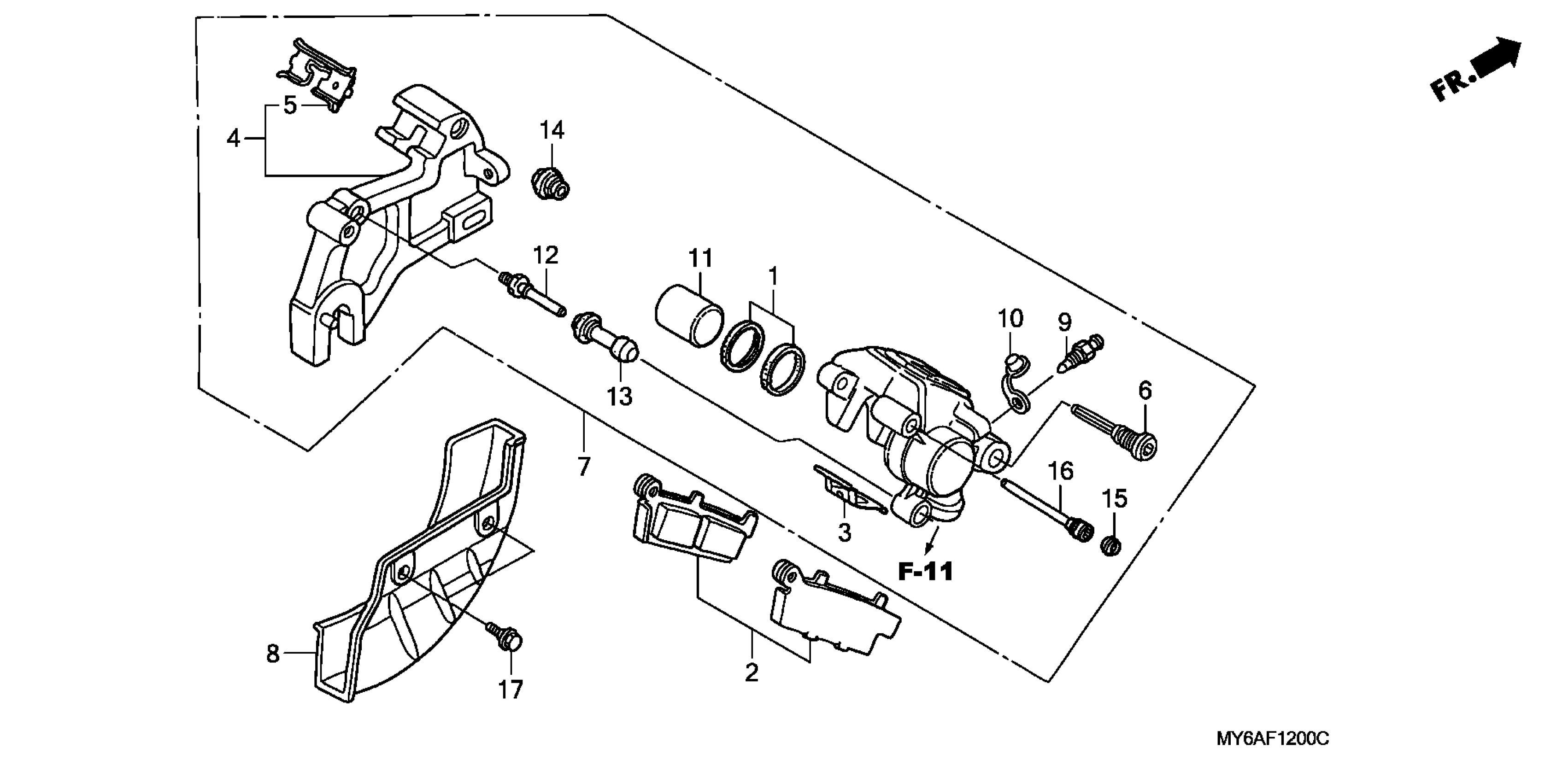

Honda XR650LAC (06) MOTORCYCLE, JPN, VIN# JH2RD061-6K400001 TO JH2RD061-6K499999 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, RR. BRAKE This part replaces 43105-MY6-405.

43105-MY6-415

$27.88

PAD SET, RR. BRAKE

43105-MY6-415

$27.88

SPRING, PAD

43108-MY6-671

$5.28

BRACKET, RR. This part replaces 43110-MY6-671.

43110-KZ1-671

Unavailable

RETAINER

43112-KS6-701

$6.07

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MY6-305

Unavailable

COVER, RR. DISK

43330-KZ1-670

$22.23

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-ML4-006

$37.87

BOLT, PIN

45131-KAE-006

$6.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-KA3-732

$11.52

BOLT, FLANGE (6X10)

90020-ZV0-000

$1.49
