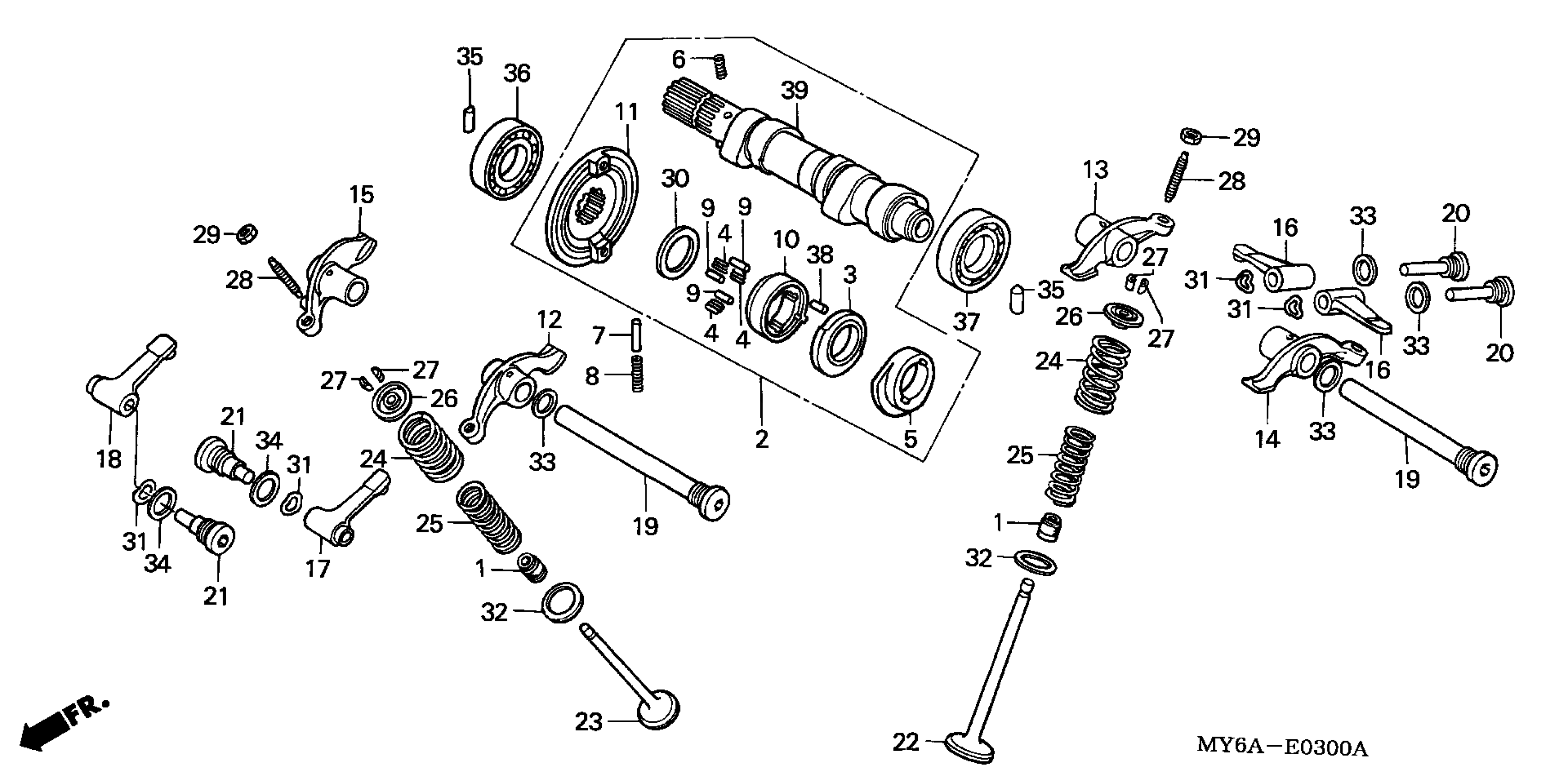

Honda XR650LAC (06) MOTORCYCLE, JPN, VIN# JH2RD061-6K400001 TO JH2RD061-6K499999 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MN1-671

$10.67

2

CAMSHAFT ASSY.

14000-MAN-690

$261.76

3

CAM, REVERSE

14102-MN1-670

$66.31

4

SPRING, ROLLER

14103-MN1-670

$4.53

5

PLATE, DECOMPRESSION CAM

14105-MAN-690

$46.59

6

SPRING, DECOMPRESSION

14106-MN1-670

$2.97

7

PLUNGER, CAM SETTING

14108-MN1-670

$15.86

8

SPRING, PLUNGER

14109-MN1-670

$3.77

9

ROLLER (4X10)

14115-MN1-670

$5.28

10

CLUTCH OUTER, DECOMPRESSION

14121-MN1-670

$66.31

11

COLLAR, CAM SPROCKET

14325-MN1-670

$72.54

12

ARM A, VALVE ROCKER

14431-MG3-040

$58.84

13

ARM D, VALVE ROCKER

14431-MK4-861

$58.85

14

ARM B, VALVE ROCKER

14441-MG3-040

$58.84

15

ARM C, VALVE ROCKER

14442-MN1-671

$58.85

16

ARM, IN. VALVE SUB-ROCKER

14445-KF0-000

$31.43

17

ARM, L. EX. VALVE SUB-ROCKER

14446-MK5-000

$26.09

18

ARM, R. EX. VALVE SUB-ROCKER

14447-MK5-000

$26.09

19

BOLT, ROCKER ARM SHAFT

14451-MK2-000

$41.56

20

SHAFT A, SUB-ROCKER ARM

14455-MN1-670

$22.70

21

SHAFT B, SUB-ROCKER ARM

14456-MN9-000

$33.38

22

VALVE, IN.

14711-MG3-000

$52.34

23

VALVE, EX.

14721-MG3-000

$78.59

24

SPRING, VALVE (OUTER) (NIPPON)

14751-MG3-003

$11.23

25

SPRING, VALVE (INNER) (NIPPON)

14761-MG3-003

$8.20

26

RETAINER, VALVE SPRING

14771-MK4-860

$11.26

27

COTTER, VALVE

14781-MB9-000

$4.95

28

SCREW, TAPPET ADJUSTING

90012-MK2-000

$7.93

29

NUT, TAPPET ADJUSTING

90206-657-000

$4.83

30

WASHER, THRUST (17X22X0.75)

90401-MN1-670

$3.64

31

WASHER, SUB-ROCKER ARM SIDE WAVE

90406-KF0-003

$2.92

32

WASHER, THRUST (21MM)

90453-473-000

$4.82

33

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

34

WASHER (12MM)

90545-KF0-000

$3.26

35

PIN, DOWEL (10X20)

90702-MN1-670

$5.26

36

BEARING, RADIAL BALL (18X37X9) (NTN)

91002-MN1-671

$40.06

37

BEARING, RADIAL BALL (6904)

91003-KF0-008

$14.20

38

ROLLER (4X10)

96220-40100

$1.49

39

CAMSHAFT

14100-MN9-872

$241.26
