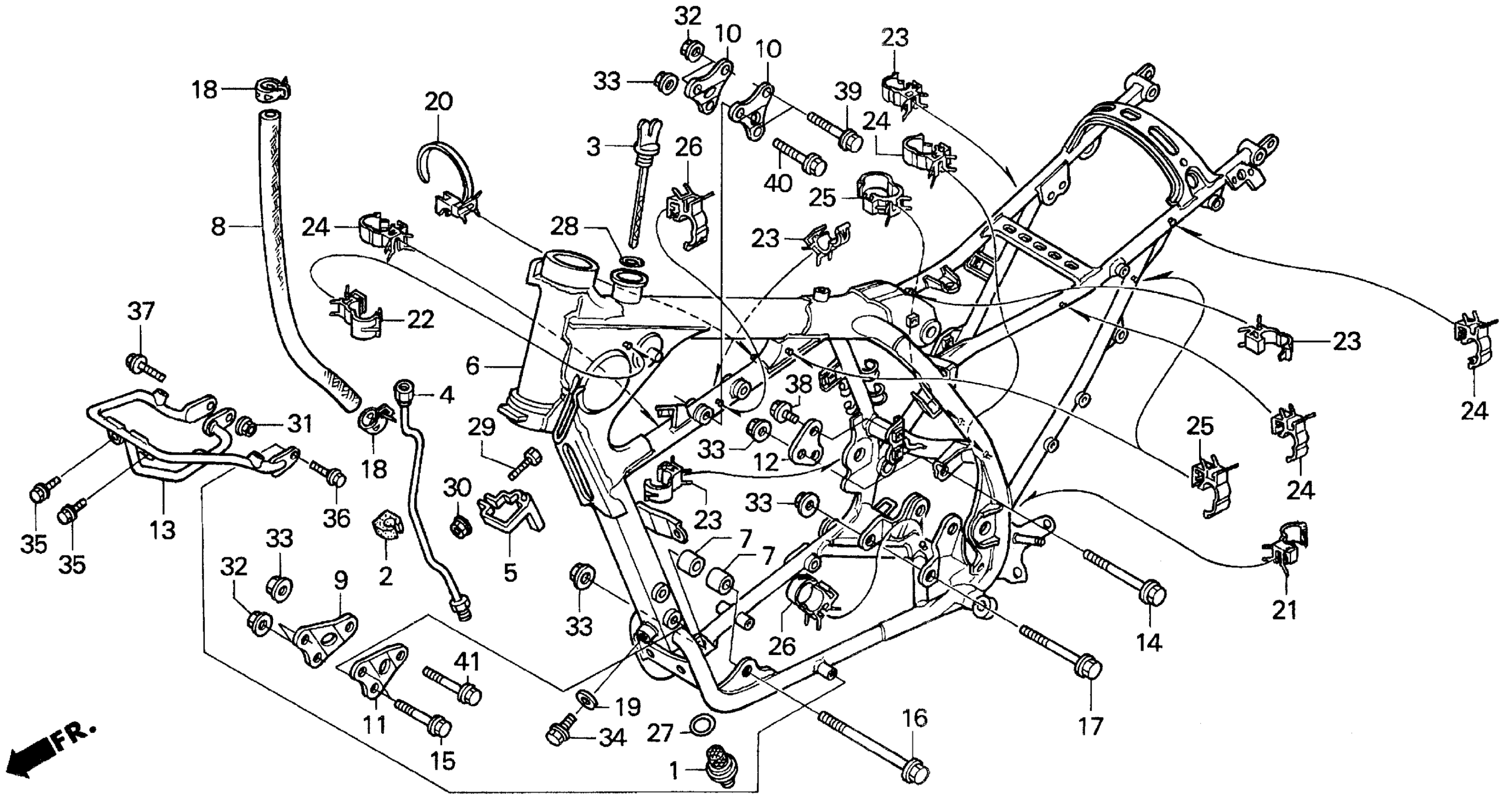

Honda XR650LAC (00) MOTORCYCLE, JPN, VIN# JH2RD061-YK800001 FRAME Diagram

#

Description
Price

1

STRAINER, OIL

15500-MN1-670

$43.06

2

RUBBER, OIL PIPE

15603-KT1-670

$5.19

3

DIPSTICK, OIL

15650-MG3-000

$26.71

4

PIPE, OIL

15710-MY6-670

$53.94

5

CLAMP, OIL PIPE

15711-MN1-700

$12.12

6

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-MY6-L00ZA

$2,053.97

7

COLLAR, ENGINE HANGER (LOWER)

50140-MK5-680

$13.74

8

TUBE, BREATHER

50185-KCY-670

$18.04

9

PLATE, R. FR. ENGINE HANGER

50221-MN1-670

$27.79

10

PLATE, ENGINE HANGER (UPPER)

50222-MN9-650

$27.79

11

PLATE, L. FR. ENGINE HANGER

50223-MN1-670

$27.79

12

PLATE, R. RR. ENGINE HANGER (UPPER)

50224-MN1-670

$27.79

13

PIPE, SKID *NH146M* (ACCURATE SILVER METALLIC)

50360-MY6-670ZB

$149.46

14

BOLT, ALTERNATOR

90057-671-000

$23.57

15

BOLT, FLANGE (8X78)

90112-KN5-670

$6.15

16

BOLT, FLANGE (10X105)

90116-MN1-670

$7.62

17

BOLT, FLANGE (10X110)

90117-MN1-670

$7.62

18

CLAMP, TUBE (D12.5)

95002-41250-00

$1.24

19

WASHER, OIL BOLT

90545-300-000

$5.79

20

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.09

21

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

22

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

23

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

24

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

25

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

26

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

27

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

Unavailable

27

O-RING (25X3)

91305-384-750

Unavailable

28

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

29

BOLT, HEX. (5X22)

92101-05022-0G

$3.65

30

NUT, FLANGE (5MM)

94050-05070

$1.28

31

NUT, FLANGE (6MM)

94050-06000

$0.60

32

NUT, FLANGE (8MM)

94050-08000

$0.87

33

NUT, FLANGE (10MM)

94050-10000

$1.66

34

BOLT, DRAIN PLUG

90131-ZE1-000

$2.24

35

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

36

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable

37

BOLT, FLANGE (6X70)

96300-06070-00

$2.81

38

BOLT, FLANGE (8X18)

96300-08018-00

$1.66

39

BOLT, FLANGE (8X65)

96400-08065-00

$2.07

40

BOLT, FLANGE (10X65)

96400-10065-00

$2.68

41

BOLT, FLANGE (10X75)

96400-10075-00

$2.68
