Partiron

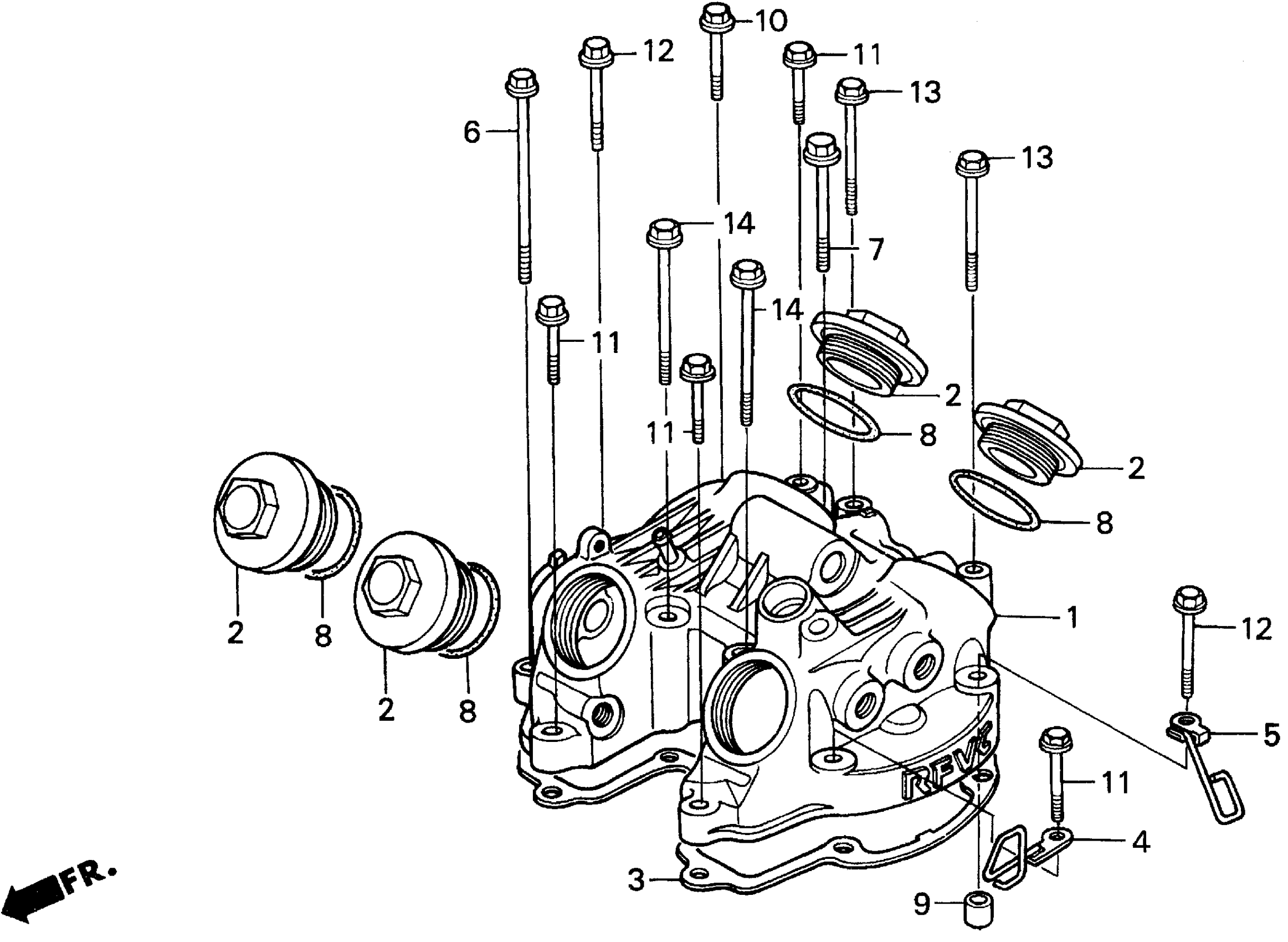

Honda XR650LAC (00) MOTORCYCLE, JPN, VIN# JH2RD061-YK800001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 12310-MY6-670.

12310-MY6-671

$300.74

1

COVER, CYLINDER HEAD

12310-MY6-671

$300.74

2

CAP, TAPPET ADJUSTING HOLE

12361-KF0-010

$19.90

3

GASKET, HEAD COVER

12391-MG2-790

$46.10

4

CLAMP, CLUTCH CABLE

22875-MY6-670

$21.31

5

CLAMP B, CLUTCH CABLE

22875-MY6-680

$34.35

6

BOLT, FLANGE (6X115)

90025-MK4-600

$7.53

7

BOLT, FLANGE (8X70)

90044-MK4-600

$5.01

8

O-RING (39.5X2.6)

91352-MG2-792

Unavailable

9

PIN, DOWEL (8X20)

94301-08200

$2.62

10

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

11

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

12

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

13

BOLT, FLANGE (6X50)

96001-06050-00

$2.54

14

BOLT, FLANGE (6X65)

96001-06065-00

$2.80
