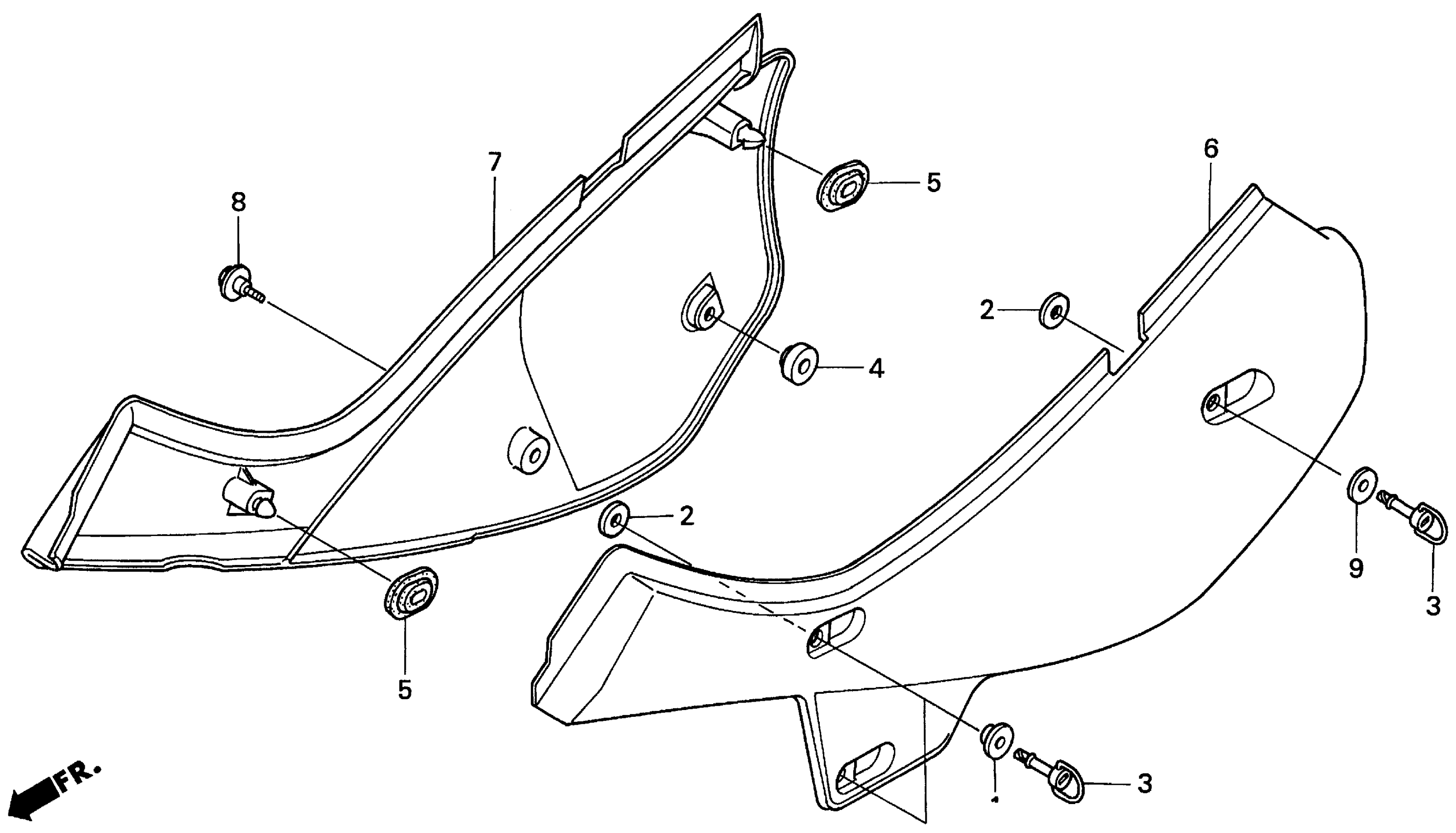

Honda XR650LA (99) MOTORCYCLE, JPN, VIN# JH2RD060-XK700001 SIDE COVER Diagram

COLLAR, AIR CLEANER COVER SETTING

17223-KN5-670

$2.97

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.49

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.99

RUBBER, SIDE COVER

83512-KA4-700

$4.57

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER SET, L. SIDE *NH196* (WL) (ROSS WHITE) This part replaces 83620-MY6-920ZA.

83620-MY6-920ZB

$90.29

COVER SET, R. SIDE *NH196* (WOL) (ROSS WHITE) This part replaces 83520-MY6-920ZA.

83520-MY6-920ZB

$84.49

BOLT, FLANGE (6MM)

90111-KM1-000

$4.24

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87
