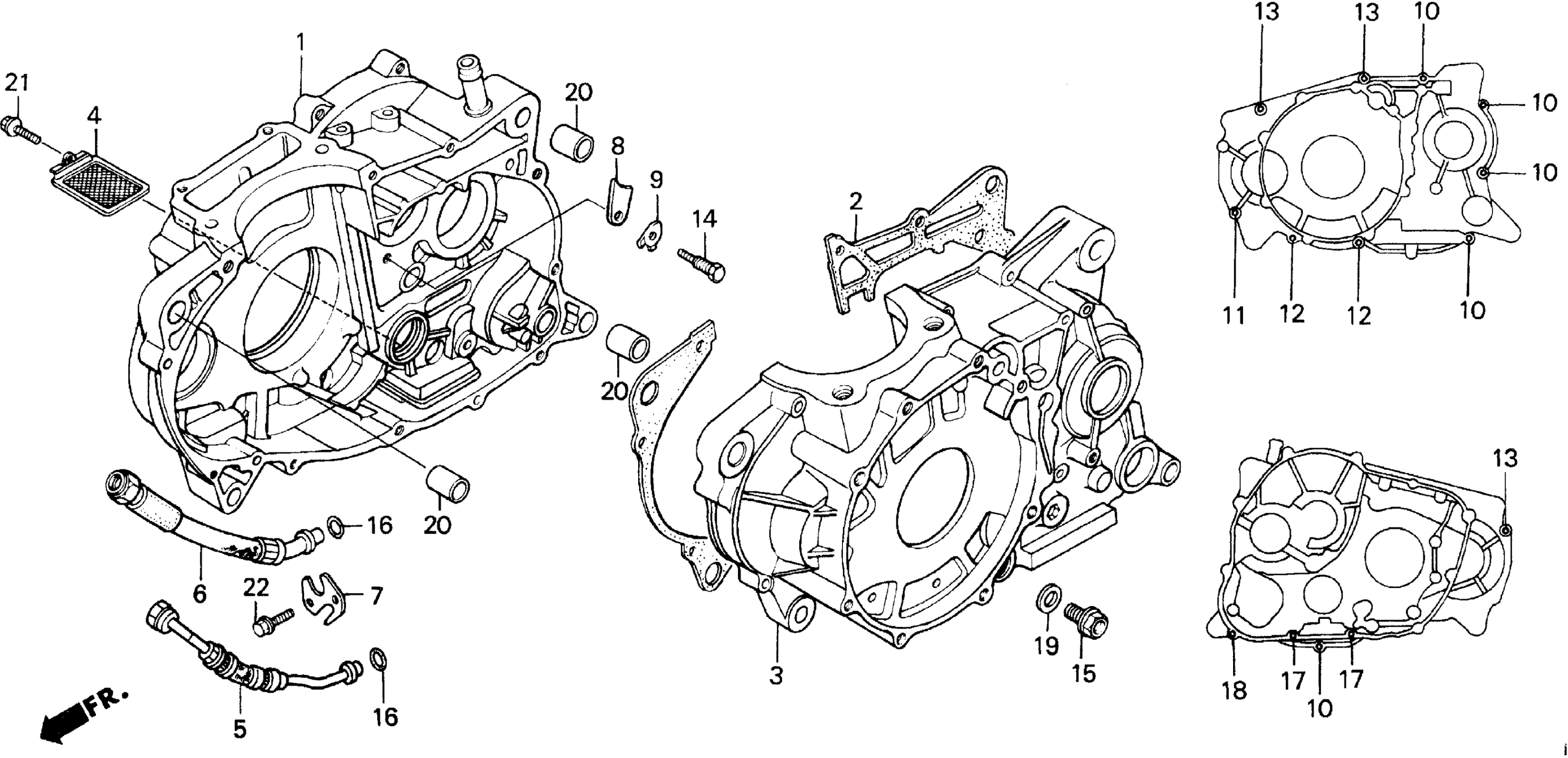

Honda XR650LA (99) MOTORCYCLE, JPN, VIN# JH2RD060-XK700001 CRANKCASE Diagram

CRANKCASE, R.

11100-MY6-671

$500.46

GASKET, CRANKCASE This part replaces 11191-MN1-700.

11191-MN1-702

$24.06

CRANKCASE, L.

11200-MY6-670

$536.79

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

HOSE A, OIL

15610-MN1-702

$120.34

HOSE B, OIL

15620-MN1-670

$118.87

PLATE

15630-MG3-010

$11.46

PLATE, BEARING SETTING

23521-MAN-690

$6.48

WASHER, LOCK (8MM)

23523-MG2-790

$3.20

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.22

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, SPECIAL (8MM)

90088-MG3-000

$6.31

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG

90131-896-650

$3.98

GASKET, RUBBER (10.5MM)

91302-MG2-792

$4.06

BOLT, STUD (6X22)

92900-06022-0E

$1.49

BOLT, STUD (6X35)

92900-06035-0E

$1.62

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
