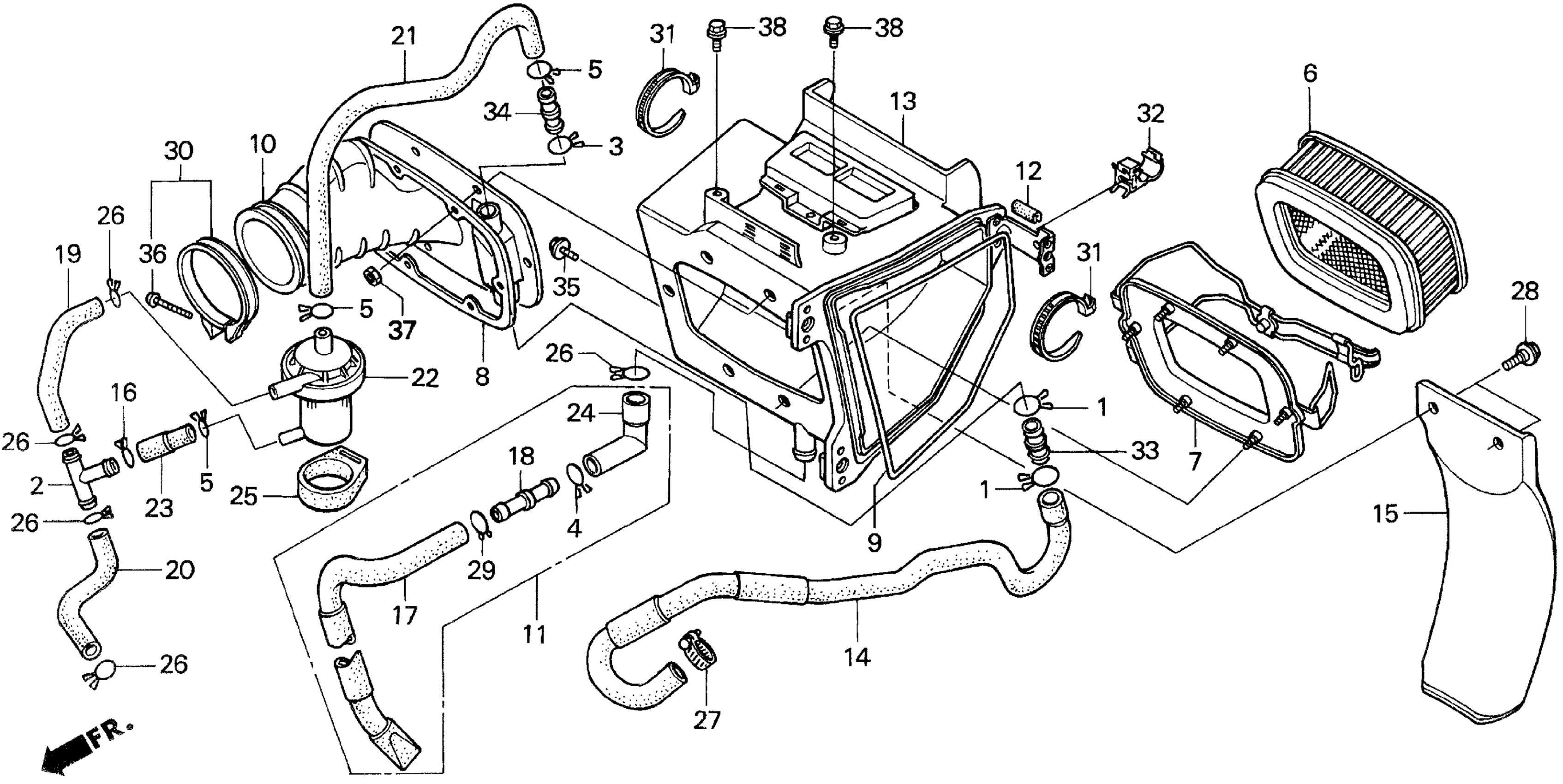

Honda XR650LA (97) MOTORCYCLE, JPN, VIN# JH2RD060-VM400001 TO JH2RD060-VM401192 AIR CLEANER Diagram

#

Description
Price

1

CLIP, DRAIN TUBE (B20)

15772-GB5-670

$3.13

2

JOINT, BREATHER THREE WAY

15772-KK0-000

$11.21

3

CLIP, BREATHER TUBE (15MM)

15772-164-000

$4.32

4

CLIP, BREATHER TUBE

15772-292-010

$2.80

5

CLIP, BREATHER TUBE

15772-551-000

$1.84

6

ELEMENT, AIR CLEANER

17214-MY6-670

$41.81

7

PLATE, ELEMENT STAY

17216-MY6-670

$65.28

8

PLATE, HOLDER

17217-MN1-670

$15.40

9

SEAL, AIR CLEANER COVER This part replaces 17219-HA2-000.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17219-HB9-000.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-000.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17219-KL4-010.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17219-KN5-670.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17219-ZE3-840.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17221-MG2-000.

17219-HA2-405

$5.69

9

SEAL, AIR CLEANER COVER This part replaces 17233-MF2-000.

17219-HA2-405

$5.69

10

TUBE, AIR CLEANER CONNECTING

17222-MY6-670

$117.04

11

TUBE ASSY., AIR CLEANER

17225-KV6-670

$37.68

12

RUBBER, PROTECTOR

17229-MY6-670

$2.31

13

HOUSING, AIR CLEANER

17230-MY6-671

$144.69

14

TUBE A, AIR IN.

17231-MY6-670

$38.97

15

SPLASH GUARD A, AIR CLEANER HOUSING

17245-MN1-670

$17.52

16

CLIP A, BREATHER TUBE

17316-MN1-670

$2.25

17

TUBE, DRAIN

17355-KV6-305

$16.68

18

JOINT, BREATHER TUBE

17359-428-000

$5.21

19

TUBE, BREATHER (UPPER)

17362-MY6-670

$8.06

20

TUBE, ENGINE BREATHER

17363-MY6-670

$10.88

21

TUBE C, BREATHER

17364-MY6-670

$14.62

22

CRANKCASE BREATHER STORAGE TANK

17365-MN9-870

$68.04

23

TUBE B, BREATHER

17365-MY6-670

$7.78

24

TUBE A, DRAIN

17366-KV6-000

$8.09

25

BAND, BREATHER SEPARATOR

17366-435-000

$6.66

26

CLIP, SUB-TANK HOSE

17724-MN1-670

$3.19

27

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

28

BOLT, FLANGE (6MM)

90112-GC6-000

$3.60

29

CLIP, DRAIN TUBE

90651-KV6-000

$2.06

30

BAND, AIR CLEANER CONNECTING TUBE (70) This part replaces 90652-GHB-780.

95018-70250

$13.69

30

BAND, AIR CLEANER CONNECTING TUBE (70)

95018-70250

$13.69

31

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

32

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

33

JOINT, TUBE

91463-HA7-670

$3.30

34

JOINT, TUBE

91463-KT0-680

$3.96

35

BOLT-WASHER (6X12)

93401-06012-00

$1.50

36

SCREW, PAN (4X25)

93500-04025-0G

$0.60

37

NUT, HEX. (6MM)

94002-06070-0S

$0.72

38

BOLT, FLANGE (6X10)

96300-06010-00

$0.87
