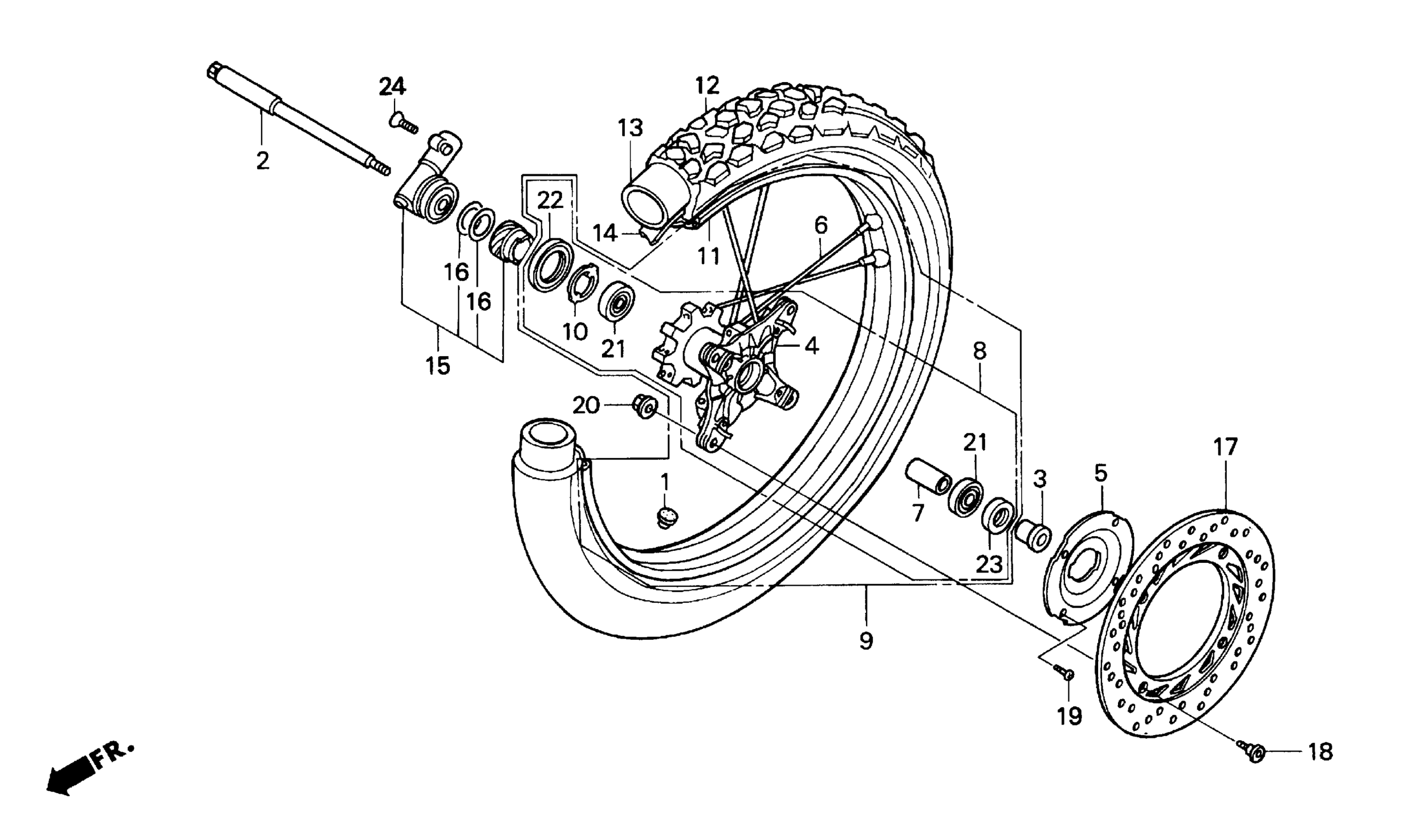

Honda XR650LA (95) MOTORCYCLE, JPN, VIN# JH2RD060-SM200001 TO JH2RD060-SM200700 FRONT WHEEL Diagram

#

Description
Price

1

CAP, RIM HOLE

42717-329-000

$4.21

2

AXLE, FR. WHEEL

44301-KAE-870

$67.93

3

COLLAR, FR. WHEEL

44311-KAE-870

$15.42

4

HUB, FR. WHEEL

44601-MY6-770

Unavailable

5

COVER, FR. HUB

44610-MN9-010

$14.38

6

SPOKE SET, FR.

44610-MY6-405

$4.81

7

COLLAR, FR. AXLE DISTANCE

44620-KAE-870

$13.64

9

WHEEL SUB-ASSY., FR. This part replaces 44650-MY6-306.

44650-MY6-316

$708.25

9

WHEEL SUB-ASSY., FR.

44650-MY6-316

$708.25

10

RETAINER, GEAR BOX

44680-MA0-000

$7.41

11

RIM, FR. WHEEL (DAIDO) This part replaces 44701-MY6-671.

44701-MY6-672

$281.10

11

RIM, FR. WHEEL (DAIDO)

44701-MY6-672

$281.10

12

TIRE, FR. This part replaces 44711-MY6-671.

44711-MY6-679

$139.69

12

TIRE, FR. This part replaces 44711-MY6-673.

44711-MY6-679

$139.69

12

TIRE, FR. This part replaces 44711-MY6-675.

44711-MY6-679

$139.69

12

TIRE, FR. (3.00-21 51S) (BS) This part replaces 44711-MY6-672.

44711-MY6-674

Unavailable

12

TIRE, FR. (3.00-21 51S) (BS)

44711-MY6-674

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

13

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

14

FLAP, TIRE (1.40/1.60-21) (DUNLOP)

44713-400-004

$6.51

15

BOX ASSY., SPEEDOMETER GEAR

44800-MY6-771

$103.64

16

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

17

DISK, FR. BRAKE

45351-MN9-020

$265.79

18

BOLT, RR. DISK (8X22)

90105-ML0-730

$6.66

19

SCREW, OVAL (4X10)

90204-MM9-000

$2.39

20

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$3.12

20

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

21

BEARING, RADIAL BALL (6003-SH2)

91065-KA3-832

$15.72

22

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

23

DUST SEAL (24X37X7) (NOK)

91259-KS6-831

$9.19

24

SCREW, OVAL (5X20)

93700-05020-0G

$1.49
