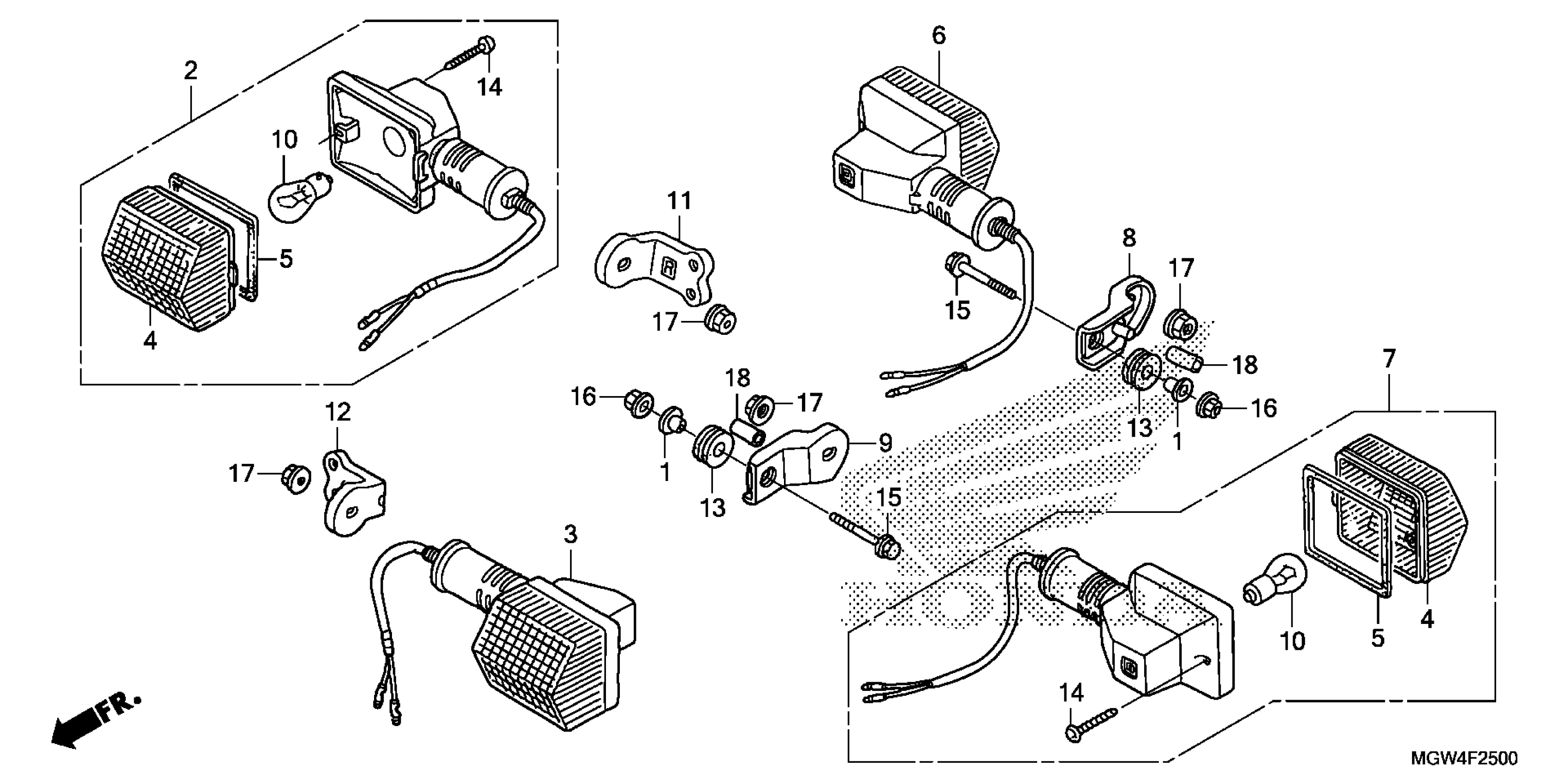

Honda XR650LA (20) MOTORCYCLE, JPN, VIN# JH2RD060-LK800001 TO JH2RD060-LK899999 TURN SIGNAL Diagram

COLLAR, RESERVE TANK SETTING

19107-415-000

$3.10

TURN SIGNAL ASSY., R. FR. (12V 23W) (COO)

33300-MGW-305

$87.51

TURN SIGNAL ASSY., R. FR. (12V 23W) (COO) This part replaces 33300-MY6-670.

33300-MGW-305

$87.51

TURN SIGNAL ASSY., L. FR. (12V 23W)

33350-MY6-670

$82.49

LENS, TURN SIGNAL (COO)

33402-MGW-305

$10.52

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

GASKET, LENS

33407-MG2-003

$5.94

TURN SIGNAL SET, R. RR. (12V 23W) (COO) This part replaces 33500-KV6-671.

33500-MGW-305

$70.65

TURN SIGNAL SET, R. RR. (12V 23W) (COO)

33500-MGW-305

$70.65

TURN SIGNAL SET, L. RR. (12V 23W) (COO) This part replaces 33550-KV6-671.

33550-MGW-305

$70.65

TURN SIGNAL SET, L. RR. (12V 23W) (COO)

33550-MGW-305

$70.65

STAY, R. RR. TURN SIGNAL *NH146M* (ACCURATE SILVER METALLIC)

33605-MY6-670ZB

$24.56

STAY, L. RR. TURN SIGNAL *NH146M* (ACCURATE SILVER METALLIC)

33606-MY6-670ZB

$24.56

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

BRACKET, R. FR. TURN SIGNAL

53101-MM0-620

$40.46

BRACKET, L. FR. TURN SIGNAL

53102-MM0-620

$38.15

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.37

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70

BOLT-WASHER (6X55)

93404-06055-00

$3.01

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)

95003-14001-10M

$3.30
