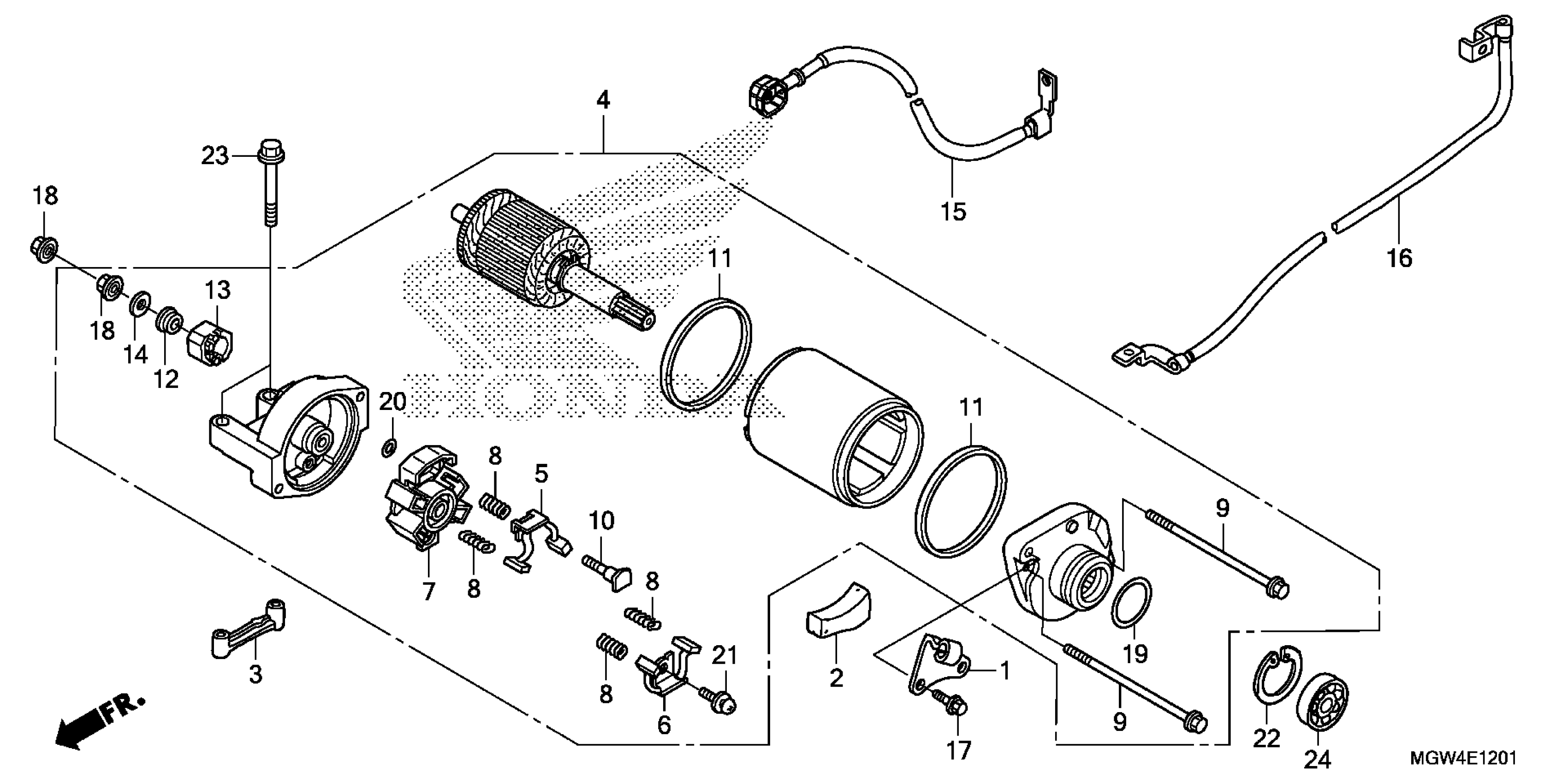

Honda XR650LA (19) MOTORCYCLE, JPN, VIN# JH2RD060-KK700001 TO JH2RD060-KK799999 STARTING MOTOR (2) Diagram

#

Description
Price

1

RECEIVER, CLUTCH CABLE | Use from Engine SN 3107068.

22838-MY6-880

$15.18

2

RUBBER, STARTER MOTOR | Use from Engine SN 3107068.

31031-MK5-010

$3.03

3

SPACER | Use from Engine SN 3107068.

31190-MK4-600

$22.47

4

STARTER MOTOR ASSY. | Use from Engine SN 3107068.

31200-MN9-023

$426.79

5

BRUSH SET A, CARBON (Honda Code 8476772) | Use from Engine SN 3107068.

31201-MEW-921

$7.43

6

BRUSH SET B, CARBON (Honda Code 8476780) | Use from Engine SN 3107068.

31202-MEW-921

$12.01

7

HOLDER, BRUSH (Honda Code 8614117) | Use from Engine SN 3107068.

31203-MEW-921

$7.14

8

SPRING, CARBON BRUSH (Honda Code 8476798) | Use from Engine SN 3107068.

31204-MEW-921

$11.58

9

BOLT, SETTING | Use from Engine SN 3107068.

31205-HP5-601

$2.73

10

BOLT, TERMINAL | Use from Engine SN 3107068.

31206-MEW-921

$2.71

11

RING | Use from Engine SN 3107068.

31207-HP5-601

$1.99

12

INSULATOR (Honda Code 8476822) | Use from Engine SN 3107068.

31208-MEW-921

$7.07

13

STOPPER, TERMINAL (Honda Code 8476830) | Use from Engine SN 3107068.

31209-MEW-921

$10.50

14

WASHER | Use from Engine SN 3107068.

31210-MEW-921

$1.68

15

CABLE, STARTER MOTOR | Use from Engine SN 3107068.

32410-MY6-671

$27.34

16

CABLE, BATTERY GROUND | Use from Engine SN 3107068.

32601-MY6-670

$43.13

17

BOLT, FLANGE (6X16) (NSHF) | Use from Engine SN 3107068.

90004-GHB-630

$3.34

18

NUT-WASHER (6MM) | Use from Engine SN 3107068.

90071-MB0-000

$1.91

19

O-RING (24.4X3.1) | Use from Engine SN 3107068. This part replaces 91309-425-003.

91312-MG7-003

Unavailable

19

O-RING (24.4X3.1) (Honda Code 2618221) | Use from Engine SN 3107068.

91312-MG7-003

Unavailable

20

O-RING (Honda Code 1292184) | Use from Engine SN 3107068.

91320-MB0-000

$2.24

21

SCREW-WASHER (5X12) (Honda Code 0368621) | Use from Engine SN 3107068.

93892-05012-08

$1.06

22

CIRCLIP (INNER) (32MM) | Use from Engine SN 3107068.

94520-32000

$1.76

23

BOLT, FLANGE (6X55) | Use from Engine SN 3107068.

95701-06055-00

$2.59

24

BEARING, RADIAL BALL (6201) | Use from Engine SN 3107068.

96100-62010-00

$7.71
