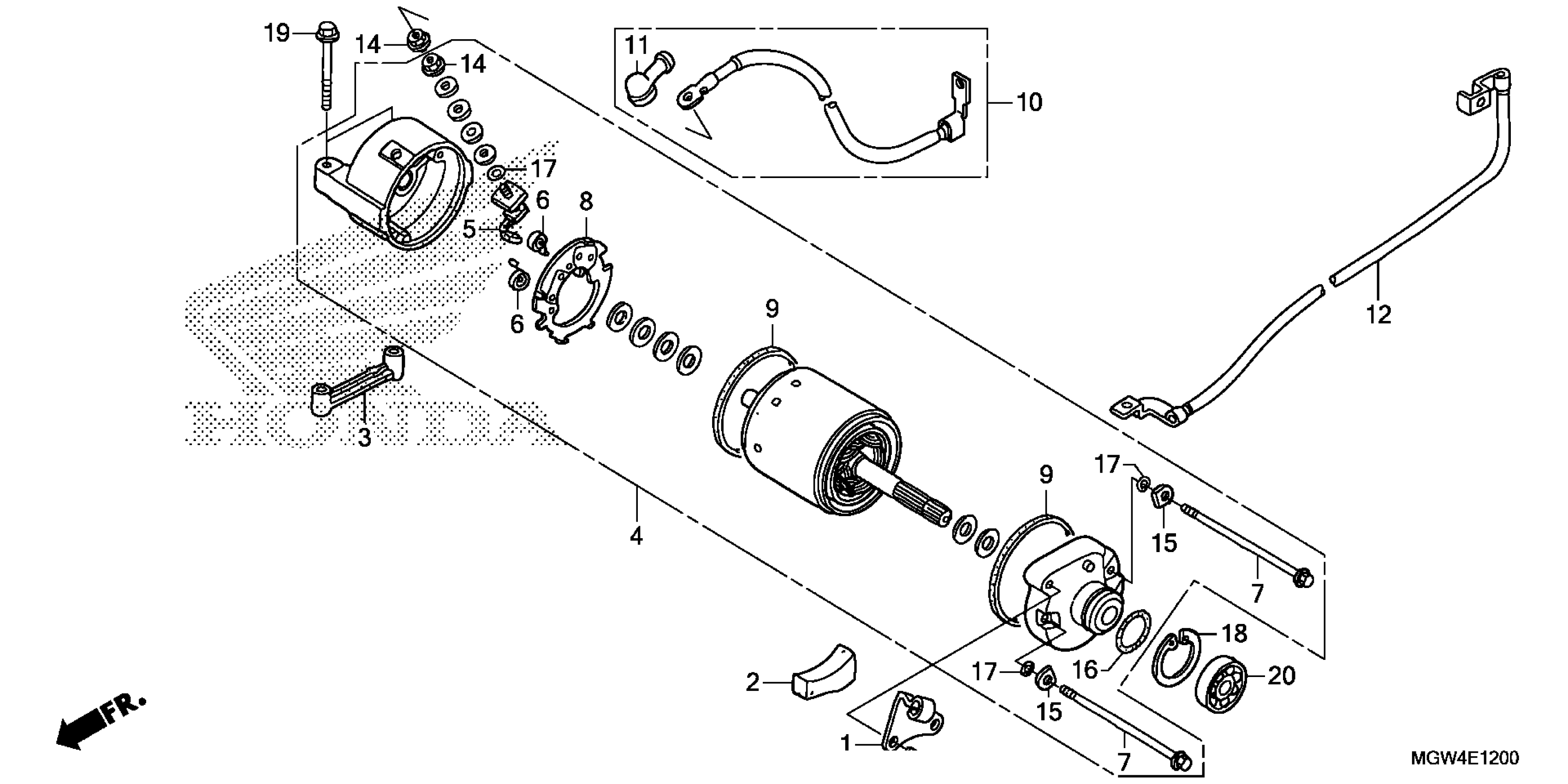

Honda XR650LA (18) MOTORCYCLE, JPN, VIN# JH2RD060-JK600001 TO JH2RD060-JK699999 STARTING MOTOR (1) Diagram

RECEIVER, CLUTCH CABLE

22838-MY6-880

$14.96

RUBBER, STARTER MOTOR

31031-MK5-000

$5.38

SPACER

31190-MK4-600

$22.14

MOTOR ASSY., STARTER

31200-MN9-013

$692.06

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH

31206-MN4-008

$20.95

RING (Honda Code 2541985)

31207-KS5-901

$2.90

CABLE, STARTER MOTOR

32410-MY6-670

$46.72

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

CABLE, BATTERY GROUND

32601-MY6-670

$42.51

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

CIRCLIP (INNER) (32MM)

94520-32000

$1.61

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.52
