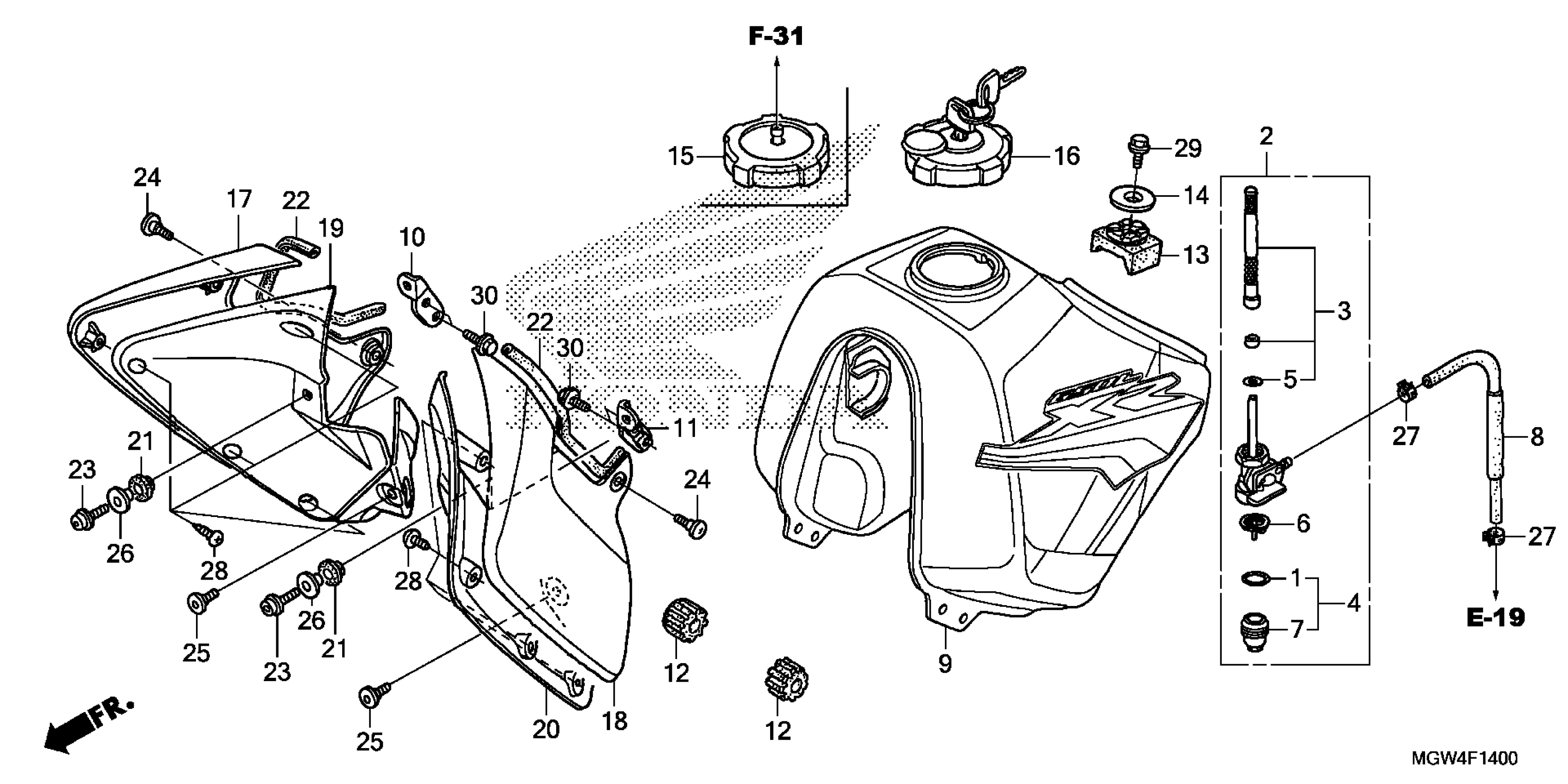

Honda XR650LA (18) MOTORCYCLE, JPN, VIN# JH2RD060-JK600001 TO JH2RD060-JK699999 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.93

2

PETCOCK ASSY.

16950-MY6-791

$82.96

3

SCREEN SET, FUEL STRAINER

16952-HA8-005

$44.56

4

CUP SET, FUEL STRAINER

16953-GT4-305

$22.34

5

O-RING

16075-GHB-720

$2.80

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.80

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.80

6

FILTER, CUP

16959-471-831

$8.61

7

CUP, FUEL STRAINER

16967-GA6-671

$22.81

8

TUBE, FUEL

17515-MY6-A80

$8.65

9

TANK SET, FUEL (TYPE1) (WL)

17520-MGW-L60ZB

$735.66

10

STAY, R. SHROUD (INNER)

17523-MY6-700

$30.54

11

STAY, L. SHROUD (INNER)

17524-MY6-700

$48.72

12

CUSHION, FR. FUEL TANK RUBBER, FR. FUEL TANK

17611-MG2-000

$10.50

13

CUSHION, RR. FUEL TANK

17613-MY6-770

$15.67

14

WASHER, TANK MOUNT SETTING

17614-MY6-670

$10.96

16

CAP, FUEL FILLER This part replaces 17620-MN9-023.

17620-MN9-033

$70.59

16

CAP, FUEL FILLER

17620-MN9-033

$70.59

17

SHROUD, R. *R134* (FIGHTING RED)

19030-MY6-700ZB

$80.85

18

SHROUD, L. *R134* (FIGHTING RED)

19040-MY6-700ZB

$80.85

19

PANEL, R. SHROUD (INNER) *NH1* (BLACK)

19050-MY6-700ZB

$147.12

20

PANEL, L. SHROUD (INNER) *NH1* (BLACK)

19060-MY6-700ZB

$147.12

21

RUBBER, TAILLIGHT SETTING

33718-GE2-690

Unavailable

22

MOLDING, SHROUD

64106-MY6-A00

$5.93

23

BOLT, FLANGE SOCKET (6X18)

90004-ML4-610

$2.68

24

SCREW, PAN (6X22)

90112-MS2-000

$3.50

25

SCREW, PAN (6X13)

90124-MY6-670

$2.41

26

COLLAR (6.6X6.8)

90505-MY6-700

$4.63

27

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

28

SCREW, TAPPING (4X12)

93903-24310

Unavailable

29

BOLT, FLANGE (6X10)

96300-06010-00

$0.87

30

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable
