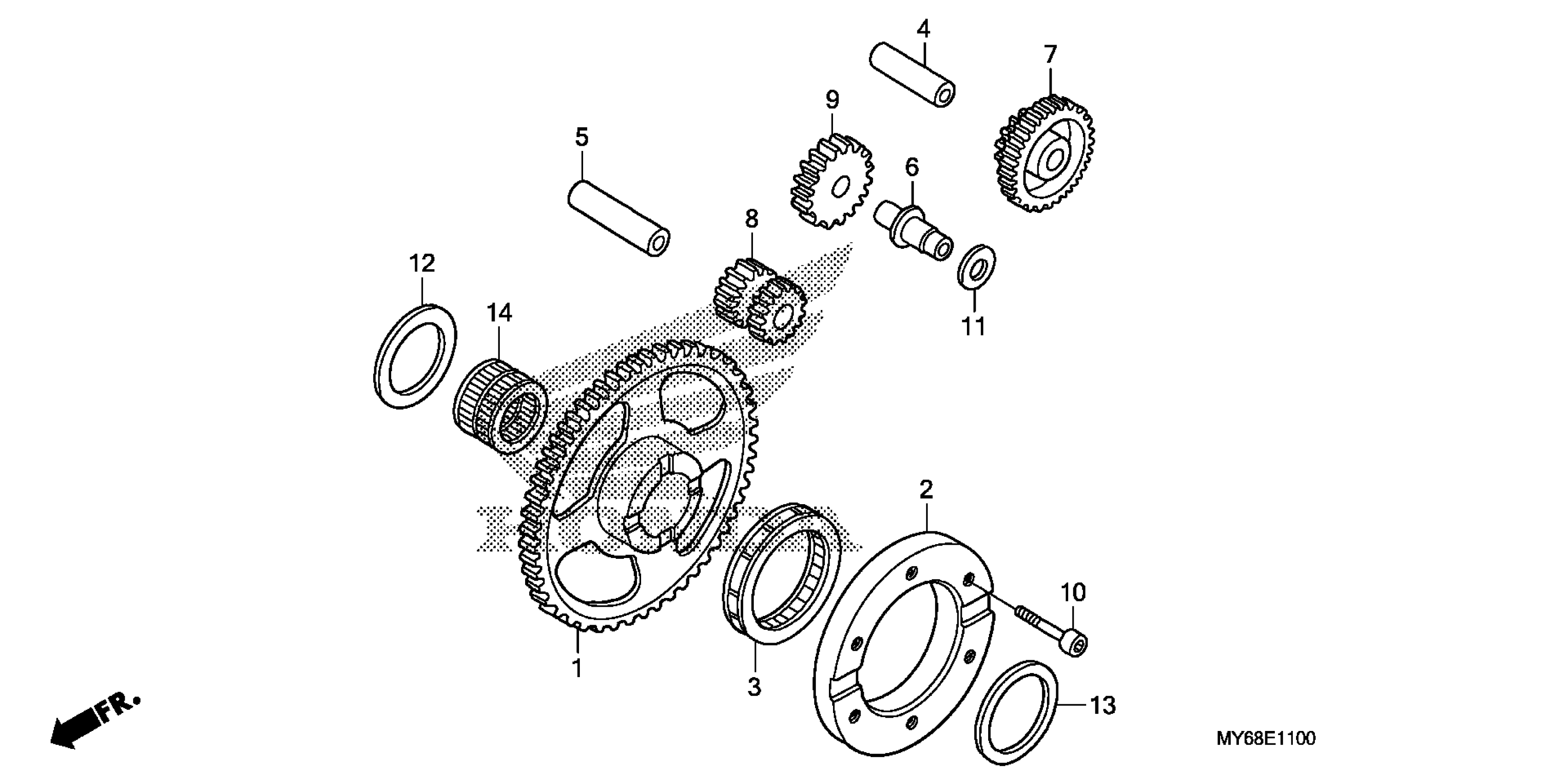

Honda XR650LA (09) XR650L, JPN, VIN# JH2RD060-9K700001 TO JH2RD060-9K799999 STARTING CLUTCH Diagram

GEAR, STARTER DRIVEN (80T)

28110-MN9-000

$243.69

CLUTCH OUTER, ONE-WAY

28121-MN9-003

$119.82

CLUTCH, ONE-WAY

28126-MK5-004

$98.47

SHAFT C, IDLE GEAR

28132-MK5-000

$10.00

SHAFT A, IDLE GEAR

28133-MN9-000

$10.00

SHAFT B, IDLE GEAR

28134-MAN-690

$23.87

GEAR C, IDLE (52T/13T)

28232-MAN-690

$120.41

GEAR A, IDLE (13T/14T)

28233-MAN-690

$82.41

GEAR B, IDLE (21T)

28234-MAN-690

$52.93

BOLT, SOCKET (8MM)

90010-MK5-000

$4.53

WASHER, THRUST (12.2MM)

90401-MK5-000

$2.92

WASHER, THRUST (34.1MM)

90402-MK5-000

$13.30

WASHER, THRUST (34.1MM)

90403-MK5-000

$10.90

BEARING, NEEDLE (34X40X23.7) (TOYO)

91061-MN9-003

$42.36
