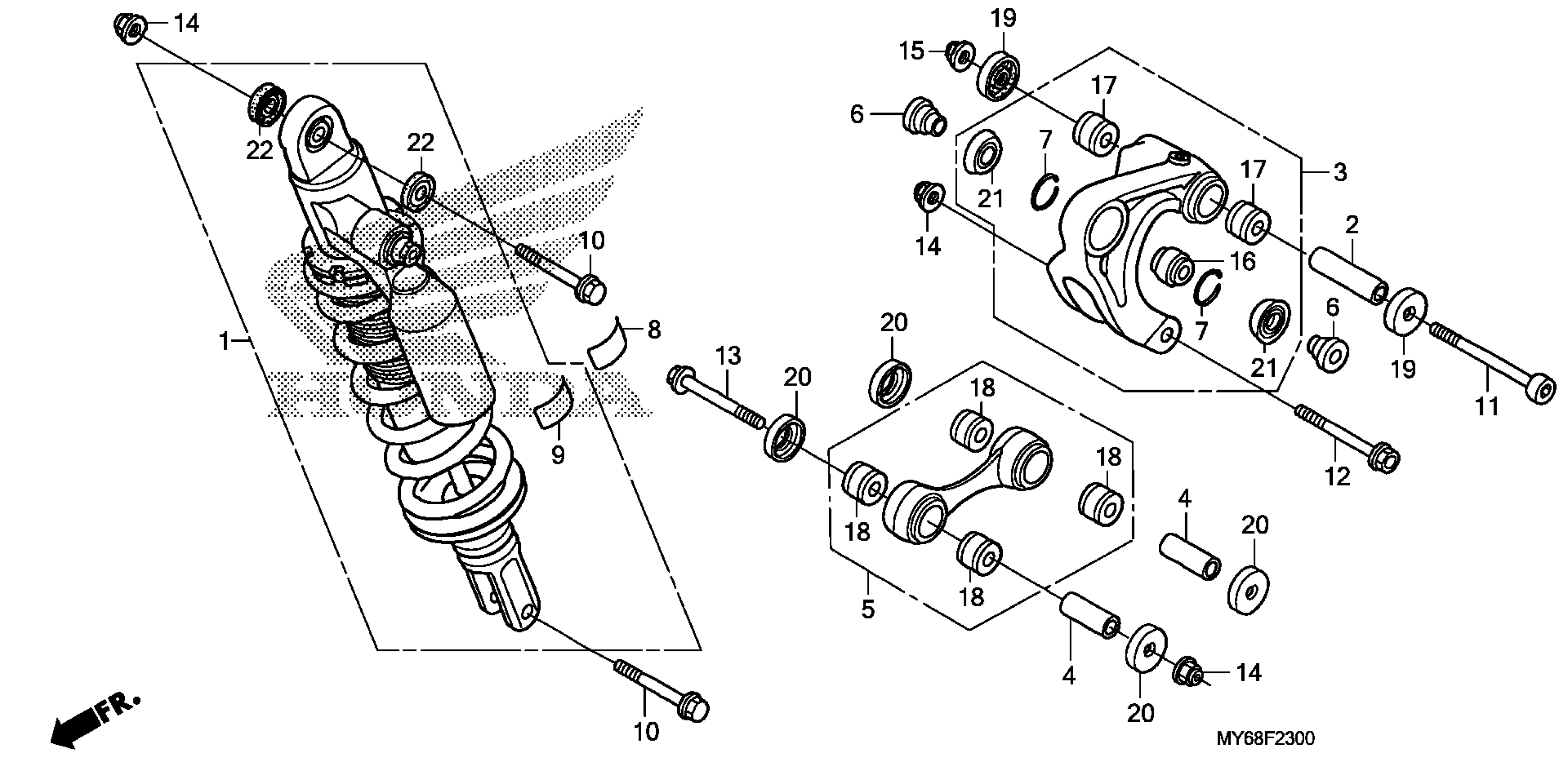

Honda XR650LA (09) XR650L, JPN, VIN# JH2RD060-9K700001 TO JH2RD060-9K799999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (COO) This part replaces 52400-MY6-A91.

52400-MGW-305

$1,187.55

CUSHION ASSY., RR. (COO)

52400-MGW-305

$1,187.55

COLLAR, CUSHION ARM PIVOT

52463-KN5-000

$18.48

ARM SUB-ASSY., CUSHION

52465-MY6-A40

$277.45

COLLAR, SHOCK CONNECTING ROD PIVOT

52473-KN5-000

$11.75

ROD ASSY., CUSHION CONNECTING

52475-MY6-A40

$193.09

COLLAR, SHOCK ABSORBER

52486-KN5-000

$7.81

RING, STOPPER

52487-KN5-000

$2.97

LABEL, RR. DAMPER

87516-MBL-610

$3.93

BOLT, FLANGE (10X46)

90103-KE8-003

$7.90

BOLT, SOCKET (12X102)

90128-MN1-670

$14.91

BOLT, FLANGE (10X77)

90129-KF0-000

$13.34

BOLT, FLANGE (10X65)

90151-MG3-000

$11.48

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.42

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

BEARING, SPHERICAL (14MM)

91077-KN5-004

$20.59

BEARING, CUSHION ARM (NTN)

91078-KN5-003

$25.53

BEARING, CONNECTING ROD

91079-KN5-003

$11.41

SEAL, CUSHION ARM

91261-KN5-003

$9.08

SEAL, CUSHION CONNECTING ROD PIVOT

91262-KN5-003

$9.08

DUST SEAL B

91351-KN5-004

$3.77

DUST SEAL, RR. SHOCK (UPPER) (SHOWA)

91351-KS7-003

$4.76
