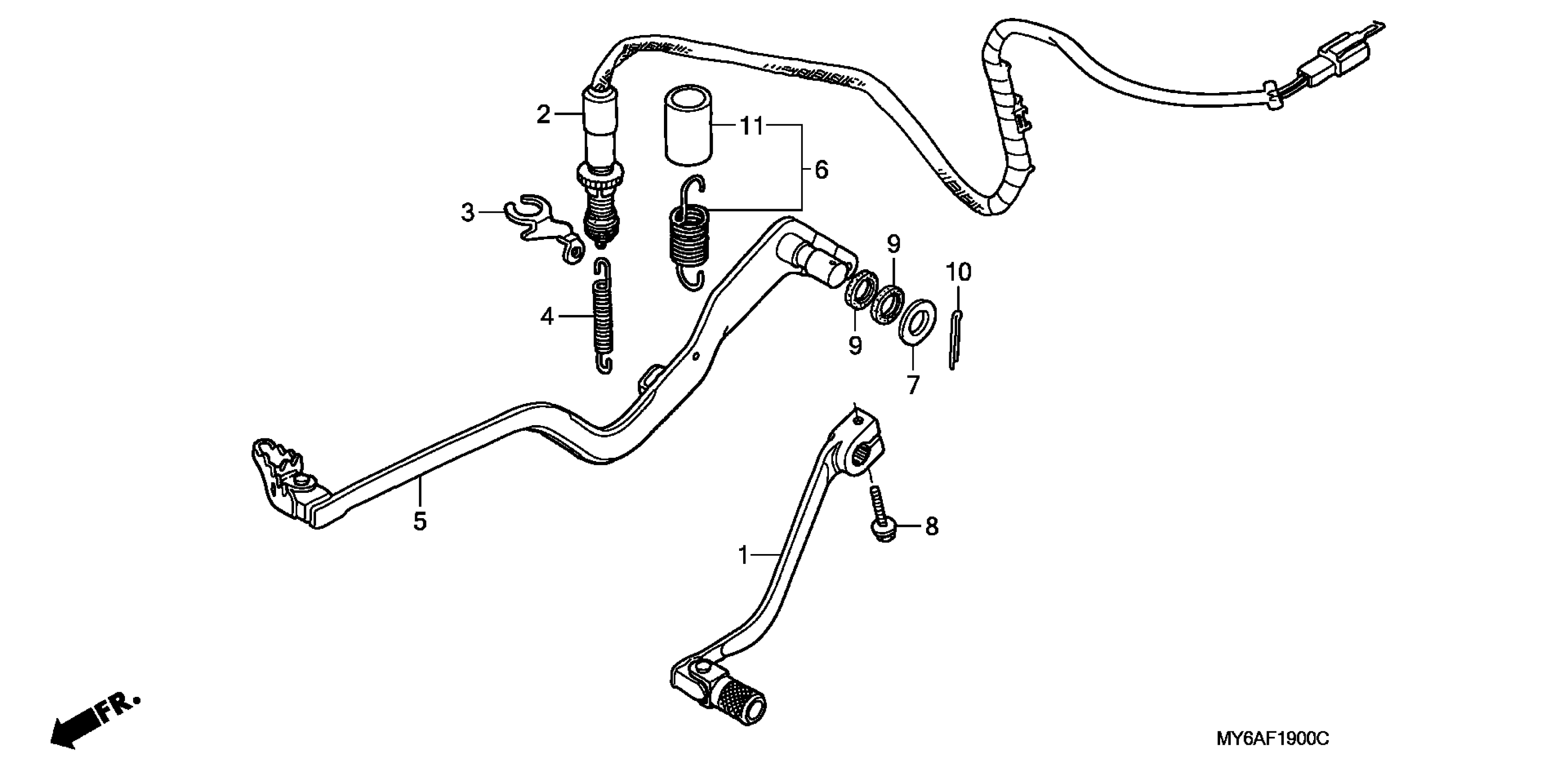

Honda XR650LA (03) MOTORCYCLE, JPN, VIN# JH2RD060-3M100001 TO JH2RD060-3M199999 PEDAL Diagram

#

Description

Price

1

PEDAL, CHANGE (COO)

24700-MGW-305

$113.07

1

PEDAL, CHANGE (COO) This part replaces 24700-MY6-670.

24700-MGW-305

$113.07

2

SWITCH ASSY., RR. STOP This part replaces 35350-MY6-670.

35350-MY6-671

$12.54

2

SWITCH ASSY., RR. STOP

35350-MY6-671

$12.54

3

STAY, RR. STOP SWITCH

35356-MN9-000

$10.71

4

SPRING, STOP SWITCH

35357-ME9-000

$4.74

5

PEDAL ASSY., BRAKE (COO) This part replaces 46500-MY6-670.

46500-MGW-305

$125.36

6

SPRING ASSY., BRAKE PEDAL

46515-MN1-680

$9.48

7

BUSH, WASHER

53312-657-000

$6.70

8

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

9

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

10

PIN, COTTER (2.5MM)

94201-25300

$1.49

11

BULK HOSE, VINYL (16X19X3000) (16X19X20)

95003-50003-10M

Unavailable
