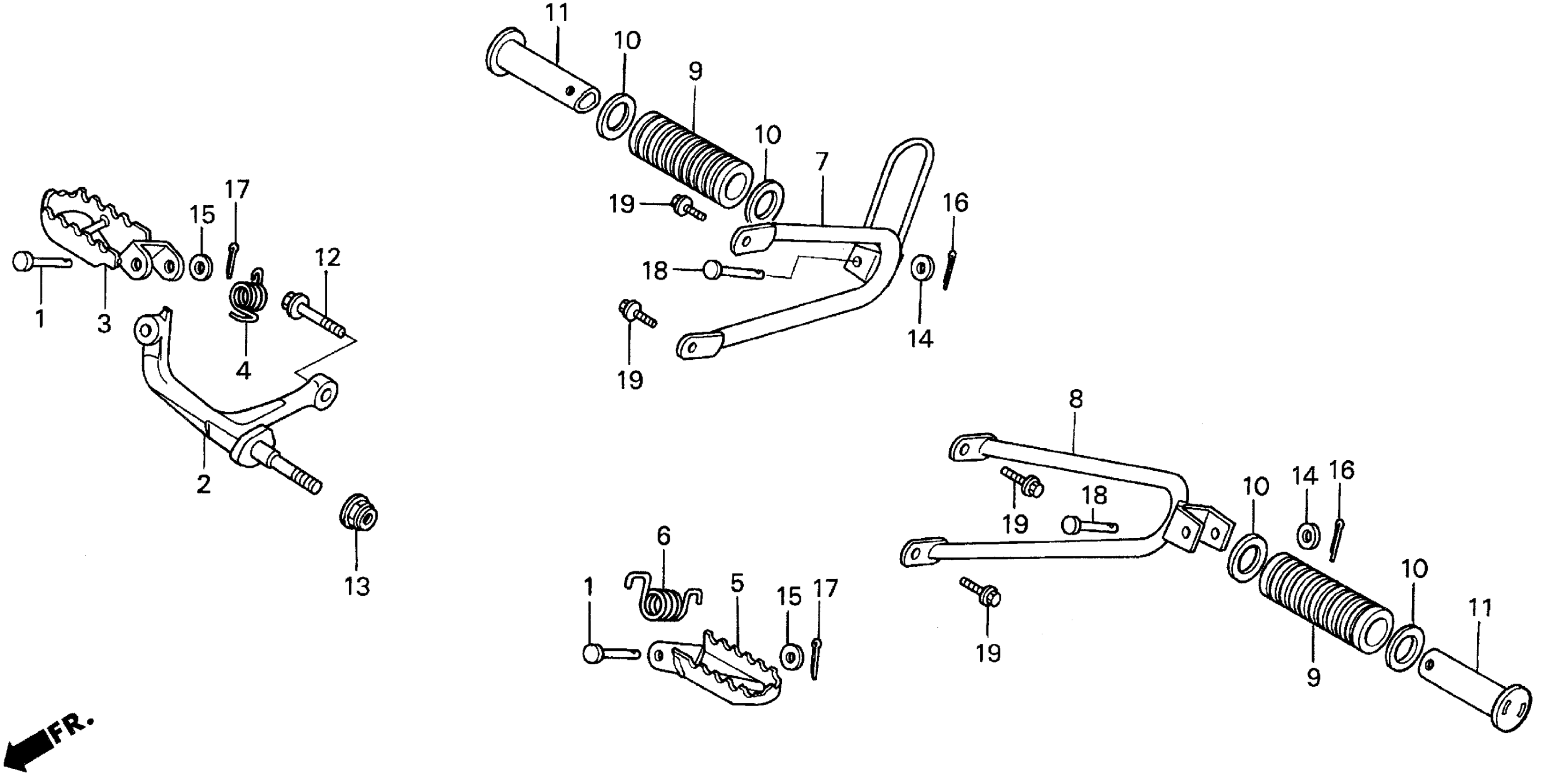

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$2.98

2

ARM, R. STEP (COO) This part replaces 50615-MN1-670.

50615-MGW-305

$90.03

3

STEP, R. (COO) This part replaces 50616-MAG-700.

50616-MGW-305

$30.16

4

SPRING, R. STEP RETURN

50617-MN1-671

$4.77

5

STEP, L. (COO) This part replaces 50642-MAG-700.

50642-MGW-305

$32.45

6

SPRING, L. STEP RETURN

50644-KAE-000

$4.78

7

BRACKET, R. PILLION STEP

50701-KBR-000

$101.20

8

BRACKET, L. PILLION STEP

50702-MY6-670

$101.01

9

RUBBER, PILLION STEP This part replaces 50710-KB7-000.

50710-MK5-000

$6.13

9

RUBBER, PILLION STEP

50710-MK5-000

$6.13

10

PLATE, PILLION STEP SIDE

50713-KC1-700

$2.83

11

BAR, PILLION STEP

50715-KB7-000

$24.63

12

BOLT, FLANGE (10X40) This part replaces 90211-KF0-770.

90211-KT0-770

$4.59

12

BOLT, FLANGE (10X40)

90211-KT0-770

$4.59

13

NUT, U (10MM)

90304-GE8-003

$3.42

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM)

94101-06800

Unavailable

15

WASHER, PLAIN (8MM)

94102-08700

$0.86

16

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

16

PIN, COTTER (1.6X25)

94201-16250

$0.94

17

PIN, SPLIT (2.0X15)

94201-20150

$0.94

18

PIN A, PILLION STEP

95015-81000

$2.01

19

BOLT, FLANGE (8X16)

96300-08016-07

$1.17
