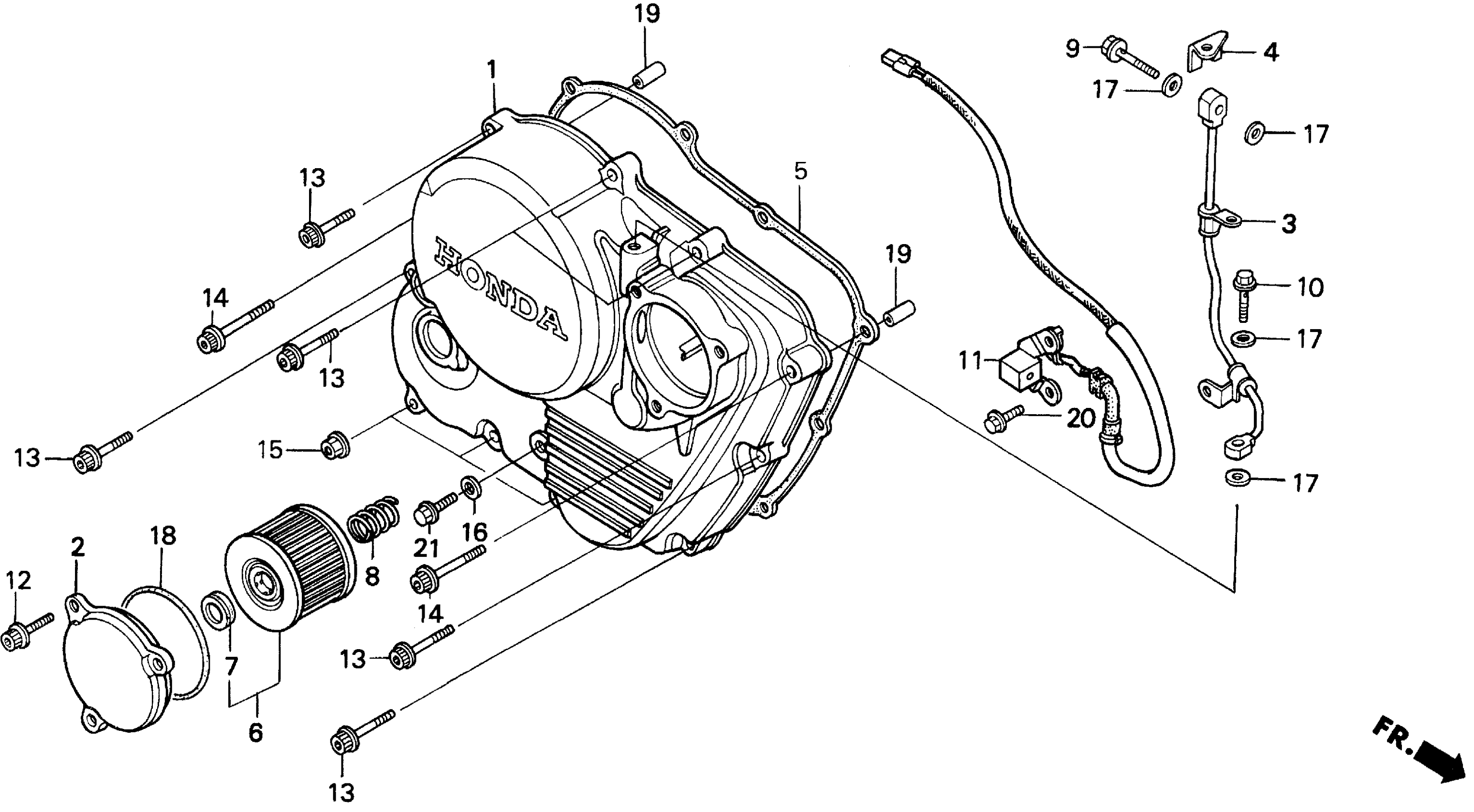

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MY2-620

$278.74

2

COVER, OIL FILTER

11333-MN1-870

$45.59

3

PIPE, OIL PASSAGE

11335-MN9-000

$60.91

4

STOPPER, OIL PIPE

11336-MN1-670

$11.51

5

GASKET This part replaces 11394-MY2-621.

11394-MY2-624

$26.59

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.57

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.57

6

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.57

7

RUBBER, FILTER

15413-MC8-000

Unavailable

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

9

BOLT, FLANGE (8X30)

15531-KN8-730

$7.51

10

BOLT, FLANGE (8X30)

15532-MA6-000

$8.48

11

IGNITION PULSE GENERATOR ASSY. ( TOYO)

30300-MY6-671

$66.11

12

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.34

13

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

14

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

15

NUT, U (6MM)

90301-473-003

$3.89

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

17

GASKET

90544-439-930

$1.97

18

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

19

PIN, DOWEL (8X20)

94301-08200

$2.76

20

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

21

BOLT, FLANGE (6X12)

95701-06012-00

$2.03
