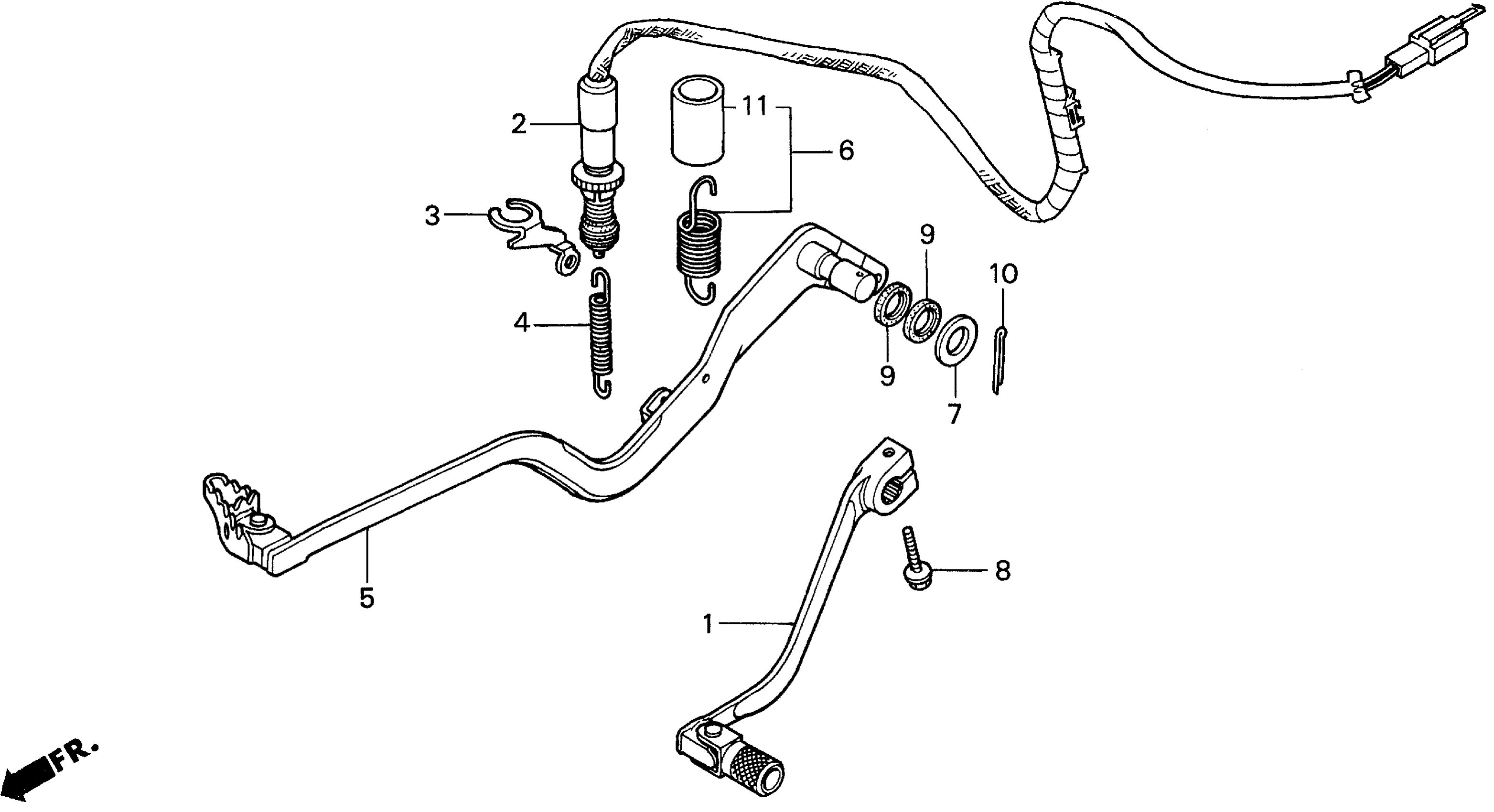

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 PEDAL Diagram

PEDAL, CHANGE (COO) This part replaces 24700-MY6-670.

24700-MGW-305

$113.07

SWITCH ASSY., RR. STOP This part replaces 35350-MY6-670.

35350-MY6-671

$12.54

STAY, RR. STOP SWITCH

35356-MN9-000

$10.71

SPRING, STOP SWITCH

35357-ME9-000

$4.74

PEDAL ASSY., BRAKE (COO) This part replaces 46500-MY6-670.

46500-MGW-305

$125.36

SPRING ASSY., BRAKE PEDAL

46515-MN1-680

$9.48

WASHER, BUSH

53312-657-000

$6.70

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

PIN, SPLIT (2.5X30)

94201-25300

$1.49

TUBE, VINYL (16X19X20) (95003-50001-10M) (NOT AVAILABLE)

95003-50002-20

Unavailable
