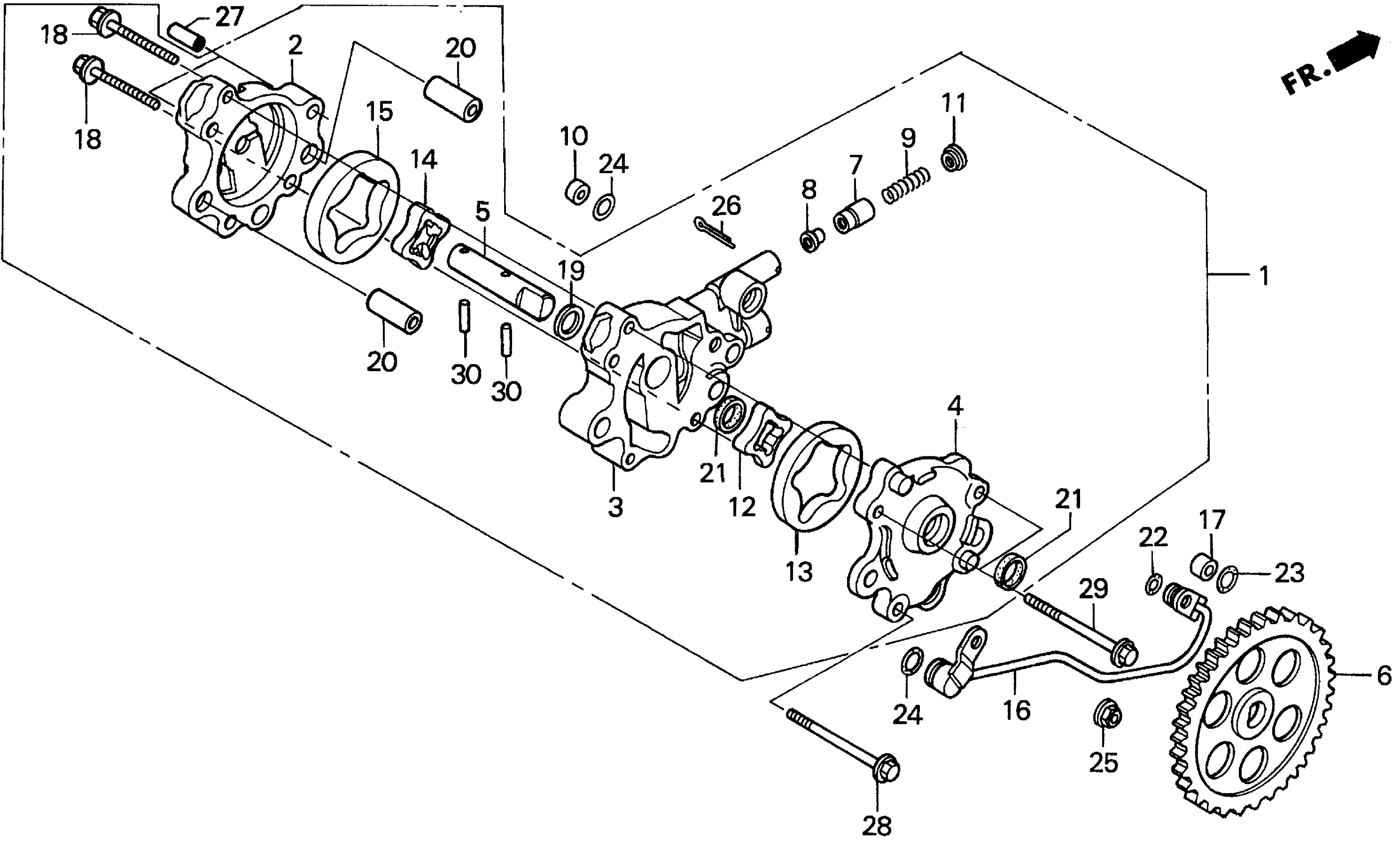

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-MY6-670

$157.80

6

GEAR, OIL PUMP DRIVEN (47T)

15105-MN1-671

$70.96

7

VALVE, OIL LEAK STOPPER

15106-MG3-000

$15.68

8

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.31

9

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.51

10

ORIFICE (5.5MM)

15109-MG3-000

$11.10

11

SEAT B, SPRING

15111-MG3-000

$2.69

12

ROTOR A, OIL PUMP (INNER)

15115-MG3-000

$15.65

13

ROTOR A, OIL PUMP (OUTER)

15116-MG3-000

$25.22

14

ROTOR (INNER)

15121-MG3-000

$18.76

15

ROTOR (OUTER)

15122-MG3-000

$28.94

16

PIPE, OIL

15510-MK2-000

$47.41

17

HOLDER

17958-197-300

$3.68

18

BOLT, FLANGE (6X35) (CT200)

90014-ZE6-000

$1.91

19

WASHER, THRUST (11MM)

90456-333-000

$2.46

20

PIN, DOWEL (8X24)

90701-MG3-000

$3.51

21

OIL SEAL (11X15X3) (KOYO)

91208-MN1-771

$7.97

22

O-RING (7X1.7)

91301-473-003

$2.51

22

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$2.87

22

O-RING (6.8X1.9)

91306-PJ4-000

$2.87

23

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.41

23

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.41

23

O-RING (9.8X1.9)

91305-PE2-003

$2.41

24

O-RING (1.5X9.5)

91306-MG3-000

$2.15

25

NUT, FLANGE (6MM)

94050-06080

$0.60

26

PIN, COTTER (3.0X45) This part replaces 94201-03200.

94201-30450

$1.01

26

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.01

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

26

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.01

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

26

PIN, SPLIT (3.0X45)

94201-30450

$1.01

27

PIN, DOWEL (8X14)

94301-08140

$2.76

28

BOLT, FLANGE (6X55)

96001-06055-00

Unavailable

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

30

ROLLER (4X15.8)

96220-40158

$0.41
