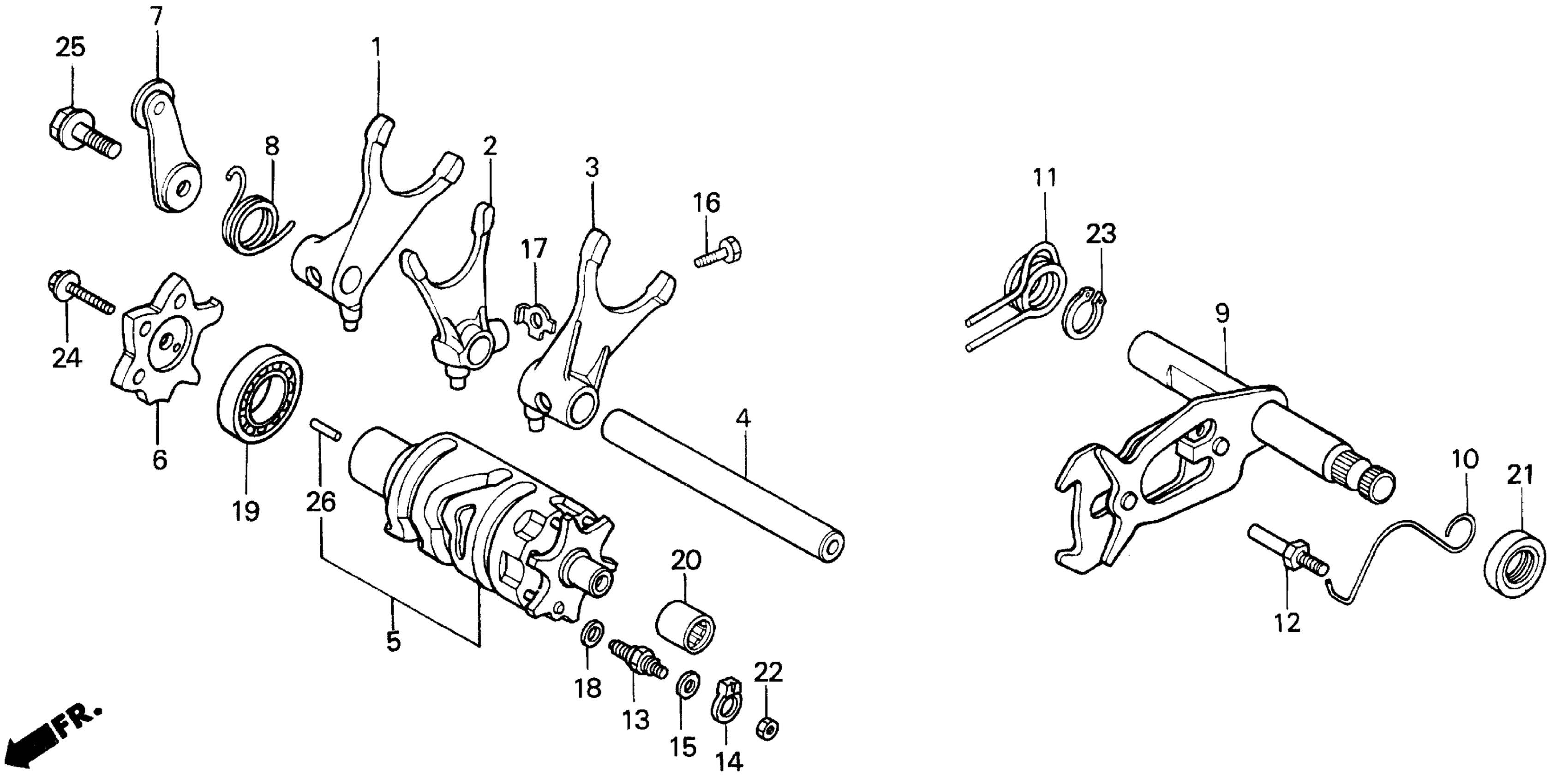

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MG3-000

$121.72

FORK, CENTER GEARSHIFT

24212-MG3-000

$121.70

FORK, L. GEARSHIFT

24213-MK2-680

$95.42

SHAFT, GEARSHIFT FORK GUIDE

24241-MK2-000

$26.41

DRUM, GEARSHIFT

24300-MG2-000

$180.31

CAM, GEARSHIFT

24411-MG3-020

$18.62

STOPPER, GEARSHIFT DRUM

24430-MG3-000

$22.21

SPRING, SHIFT DRUM STOPPER

24435-MG3-010

$5.48

SPINDLE, GEARSHIFT

24610-MK5-010

$105.54

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.72

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.72

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.75

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

SWITCH ASSY., NEUTRAL

35600-MK4-860

$18.89

GUIDE, NEUTRAL SWITCH

35601-KG0-000

$12.33

WASHER C, PARKING BRAKE

47134-567-000

$2.51

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

WASHER, LOCK

90407-MB0-000

$2.66

WASHER, OIL BOLT

90545-300-000

$3.99

BEARING, RADIAL BALL (6904) (NTN)

91007-MN5-003

$14.93

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

NUT, HEX. (4MM)

94001-04000-0S

$1.49

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

ROLLER (3X8.5)

96220-30085

$1.49
