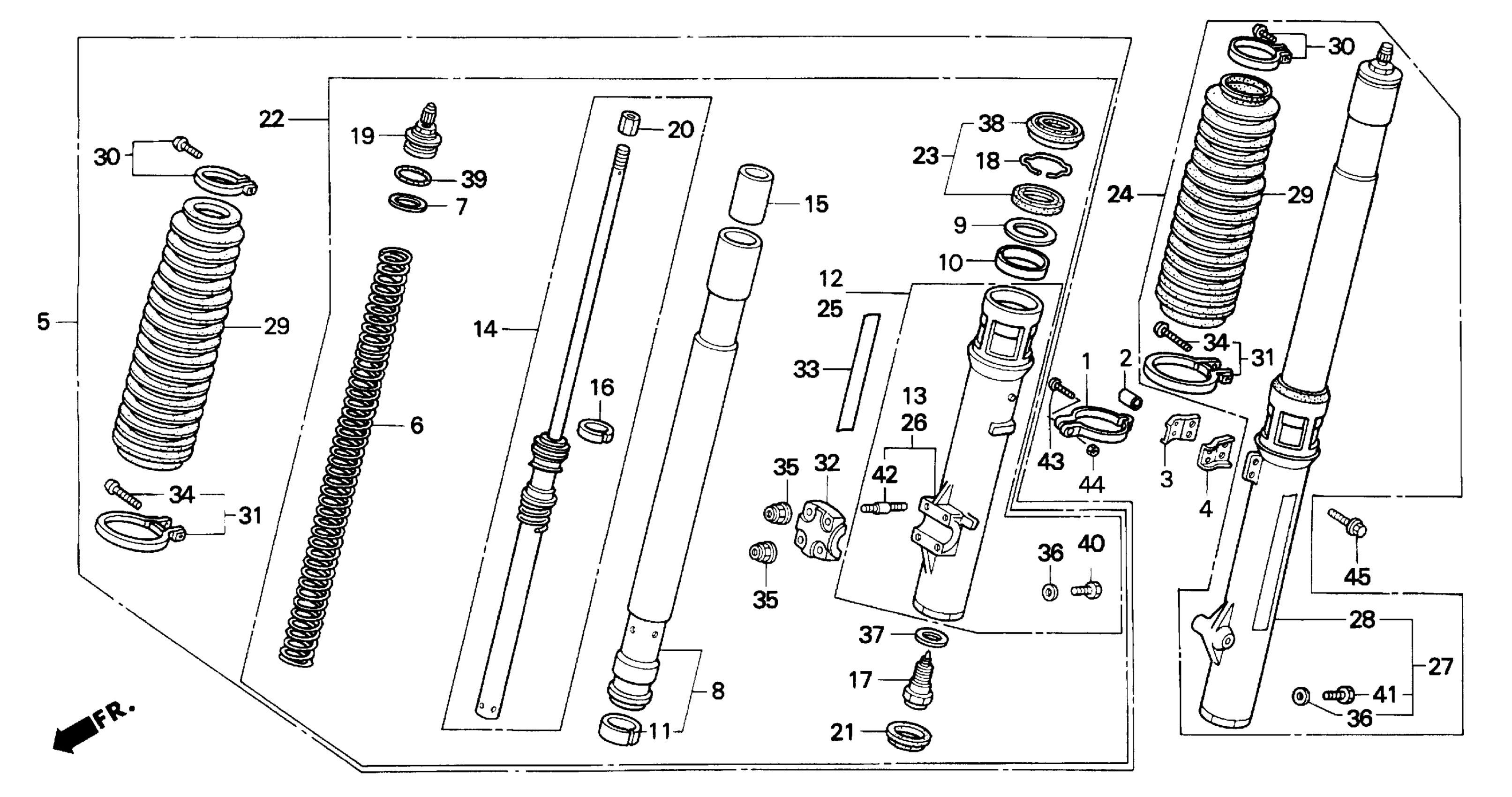

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-MG2-000

$8.59

2

COLLAR, SPEEDOMETER CABLE CLAMP

44833-MN1-680

$4.15

3

CLAMP A, FR. BRAKE CABLE

45461-MG3-650

$6.00

4

CLAMP B, FR. BRAKE CABLE

45462-MG3-650

$7.90

6

SPRING, FR. FORK (SHOWA)

51401-MY6-671

$140.30

7

SEAT, SPRING

51405-KA4-711

$6.23

8

PIPE, FR. FORK This part replaces 51410-MN1-681.

51410-MN1-682

$438.77

9

RING, BACK-UP

51412-KA4-711

$9.65

10

BUSH, GUIDE

51414-MAZ-751

$7.14

10

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

11

BUSH, SLIDER

51415-MN1-671

$15.97

13

CASE, R. (LOWER) (SHOWA)

51420-KS7-023

$497.48

14

DAMPER, FR. (SHOWA)

51430-MY6-671

$298.75

15

PIECE, OIL LOCK (SHOWA)

51432-KS7-003

$24.92

16

BUSH, CYLINDER

51435-KS7-003

$21.68

17

BOLT, CENTER (SHOWA)

51441-KS7-003

$80.07

18

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

19

BOLT ASSY., FR. FORK (SHOWA)

51450-KS6-831

$72.03

20

NUT, LOCK (SHOWA)

51451-KS7-701

$15.62

21

CAP, FR. FORK (SHOWA)

51461-KA4-831

$4.48

22

FORK SUB-ASSY., R. FR. (SHOWA) This part replaces 51480-MY6-791.

51480-MY6-792

$941.85

23

SEAL SET, FR. FORK (SHOWA)

51490-KA4-831

$30.52

26

CASE, L. (LOWER) (SHOWA)

51520-MY6-672

$497.48

28

FORK SUB-ASSY., L. FR. (COO) (SHOWA) This part replaces 51580-MY6-791.

51580-MGW-305

$941.85

29

BOOT, FR. FORK This part replaces 51611-MN1-671ZD.

51611-MN1-673

$50.73

30

BAND, BOOT (UPPER) (SHOWA)

51612-KA4-831

$10.67

31

BAND, BOOT (LOWER) (SHOWA)

51613-MK2-003

$8.78

32

HOLDER, AXLE (SHOWA)

51634-KA4-831

$32.28

32

HOLDER, AXLE

51634-MV1-003

Unavailable

34

SCREW, PAN (3.5X25)

90202-MK2-003

$4.53

35

NUT, U (6MM)

90301-473-003

$4.07

37

WASHER, SPECIAL

90544-KS7-003

$2.92

38

DUST SEAL, FR. FORK

91254-KA4-831

$16.28

39

O-RING (35.2X2.4)

91356-KA4-711

$3.76

42

BOLT, STUD (6X25)

92900-06025-0E

$1.49

43

SCREW, PAN (5X28)

93500-05028-0G

$1.49

44

NUT, HEX. (5MM)

94001-05070-0S

$1.49

45

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
