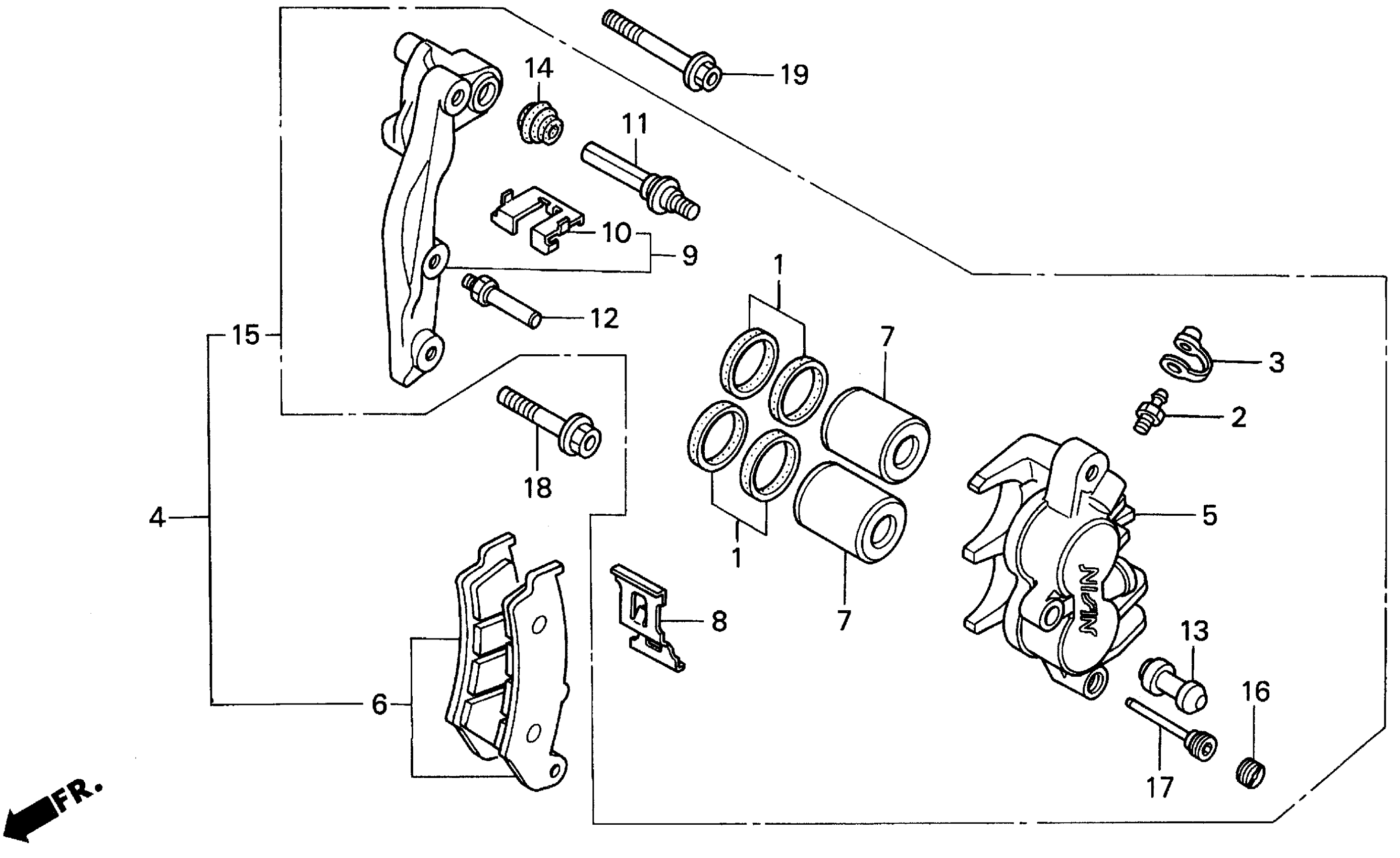

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PAD SET, FR. This part replaces 45105-MY6-405.

45105-MY6-415

$47.06

PISTON

45107-KS6-702

$55.47

SPRING, PAD

45108-MY1-006

$10.74

BRACKET, L. FR.

45110-KAS-902

$160.05

RETAINER

45112-KAS-901

$4.62

BOLT A, PIN

45131-HA5-672

$15.44

BOLT, PIN

45131-KAE-006

$6.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MY6-305

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-HA5-672

$10.63

BOLT, FLANGE (8X35)

90131-MY6-670

$2.61

BOLT, FLANGE (8X45)

90132-MY6-670

$2.61
