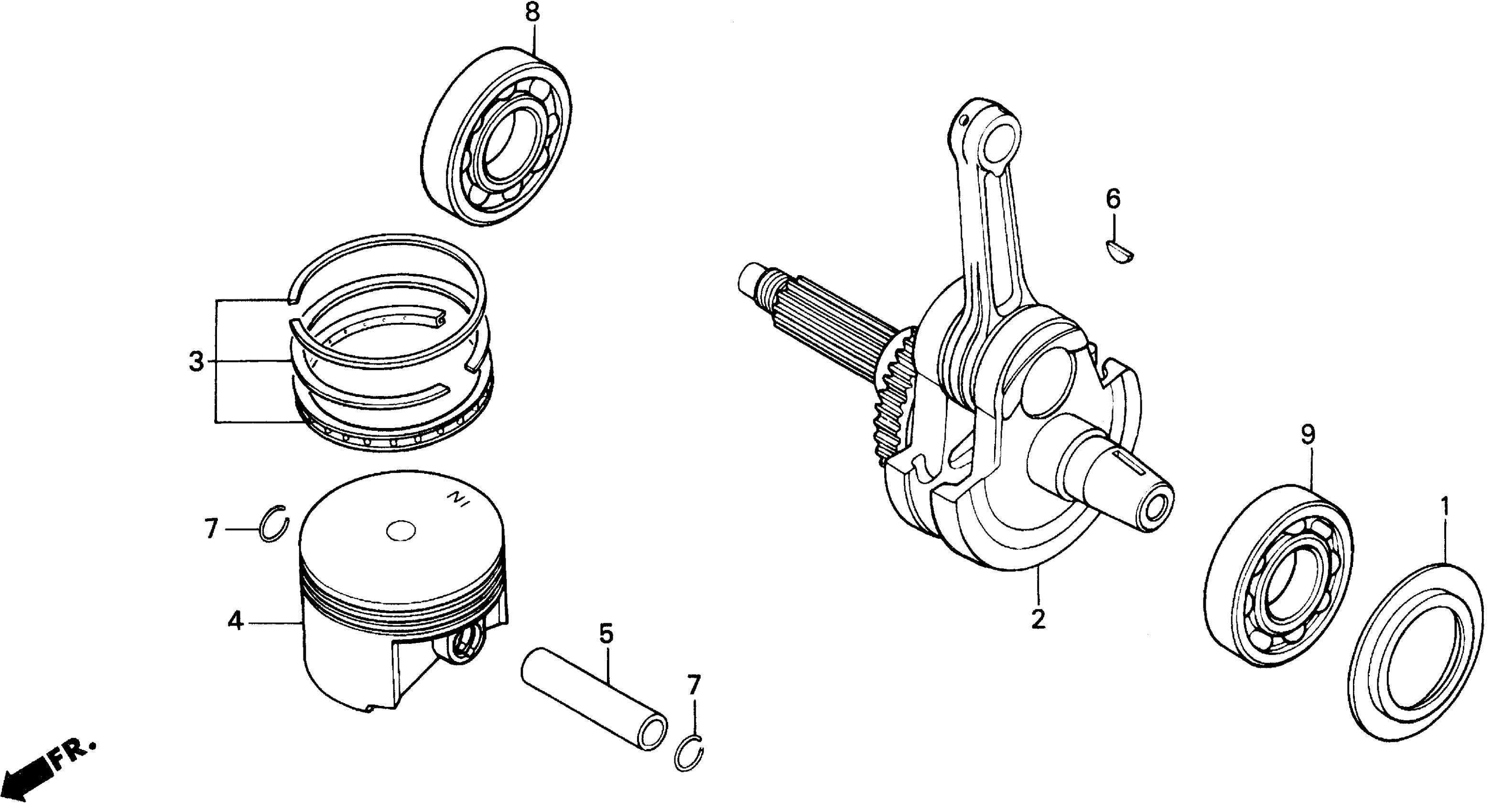

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 CRANKSHAFT Diagram

PLATE, MAIN BEARING

11215-MN9-000

$9.18

CRANKSHAFT

13000-MN9-000

$959.96

RING SET, PISTON (STD)

13011-MAN-690

$84.57

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-MAN-690

$84.57

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-MAN-690

$89.70

PISTON (STD)

13101-MAN-690

$129.43

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MAN-690

$150.70

PISTON (OVER SIZE) (0.50) | (Optional).

13103-MAN-690

$159.85

PIN, PISTON

13111-MN9-000

$23.10

KEY, SPECIAL WOODRUFF (25X18)

90701-KAS-900

$5.58

CLIP, PISTON PIN

90602-MN1-670

$1.54

BEARING, RADIAL BALL (6307) (TOYO)

91001-MN9-003

$89.34

BEARING, RADIAL BALL (6308) (TOYO)

91002-MN9-003

$89.91
