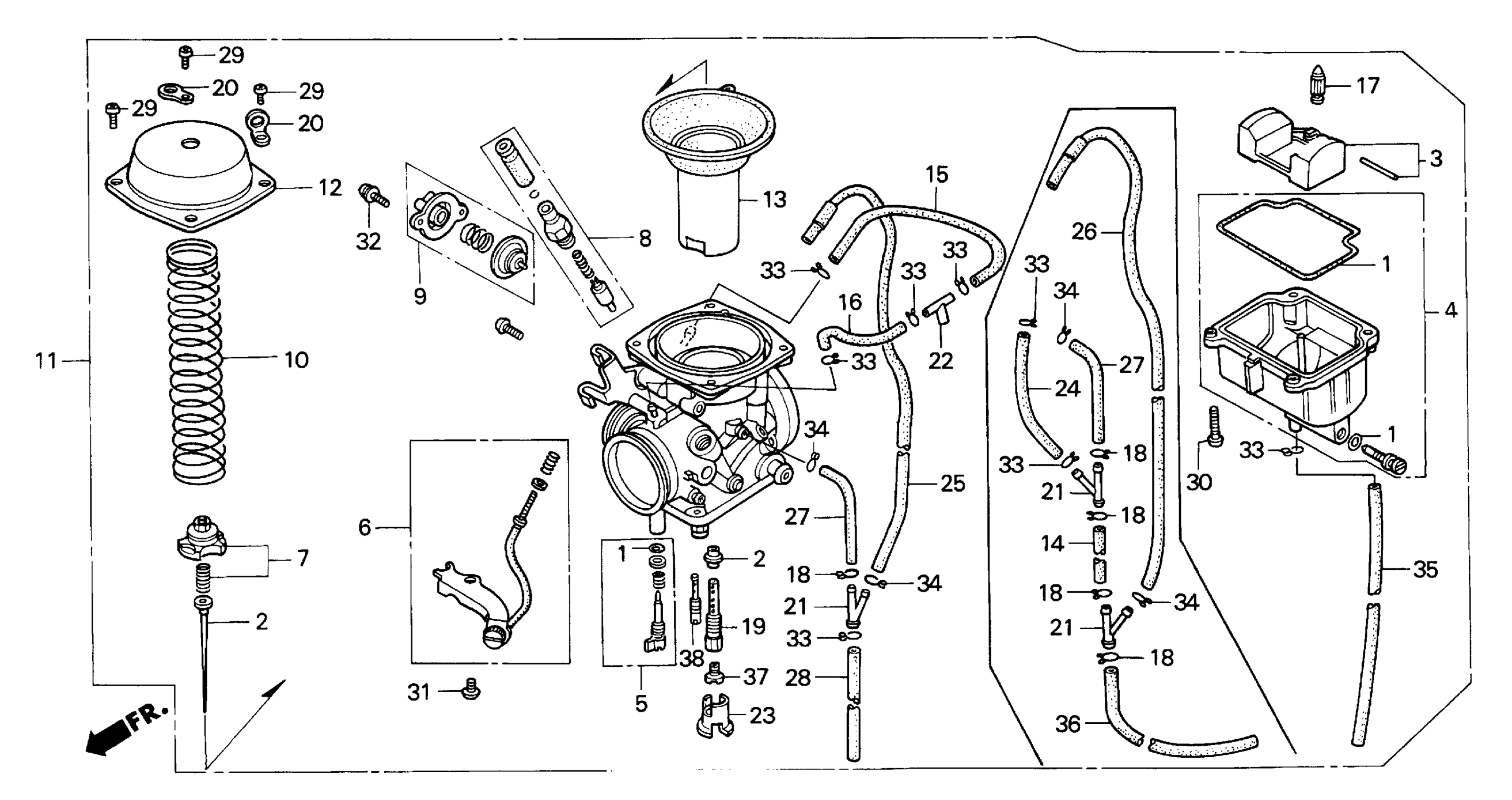

Honda XR650LA (00) MOTORCYCLE, JPN, VIN# JH2RD060-YK800001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MY6-770.

16010-KPK-901

$6.70

2

NEEDLE SET, JET

16012-MY6-770

$47.58

3

FLOAT SET

16013-KR3-980

$49.62

4

CHAMBER SET, FLOAT This part replaces 16015-MY6-770.

16015-MAK-003

$114.33

5

SCREW SET

16016-MY6-770

$19.09

6

SCREW SET

16029-MY6-770

$38.06

7

PLATE SET, VALVE

16037-MAK-000

$15.30

7

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$15.30

8

VALVE SET, STARTER

16046-MY6-770

$58.93

9

VALVE SET, AIR CUT

16048-KAB-305

Unavailable

9

VALVE SET, AIR CUT This part replaces 16048-MN9-004.

16048-KAB-305

Unavailable

10

SPRING, COMPRESSION COIL

16050-MY6-670

$12.93

11

CARBURETOR ASSY. (VE85C B)

16100-MY6-772

$369.90

11

CARBURETOR ASSY. (VE85C B) This part replaces 16100-MY6-771.

16100-MY6-772

$369.90

12

TOP

16107-MK4-602

$45.91

13

PISTON, VACUUM

16111-MY6-670

$113.01

15

BULK HOSE, VACUUM (3.5X8000) (3.5X180)

95005-35008-10M

$95.02

16

BULK HOSE, VACUUM (3.5X8000) (3.5X70)

95005-35008-10M

$95.02

17

VALVE, FLOAT

16155-MN9-004

$27.26

18

CLIP, TUBE

16163-GHB-600

$1.88

19

HOLDER, NEEDLE JET

16165-MY6-770

$32.03

20

BINDER

16179-HA0-003

$11.71

21

JOINT

16180-ML6-671

$14.34

22

T-JOINT

16180-195-731

$11.63

23

PLATE, BUFFER

16185-MN9-004

$11.48

25

TUBE This part replaces 16198-MY6-770.

16198-MY6-505

Unavailable

27

TUBE

16199-MN9-004

$11.32

28

TUBE

16199-MY6-670

$8.25

29

SCREW, PAN (4X8)

93500-04008-0A

$0.80

29

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

30

SCREW, PAN (4X14)

93500-04014-0A

$0.75

30

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$0.75

31

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.93

31

SCREW, PAN (6X10)

93500-06010-0A

$0.93

31

SCREW, PAN (6X10) This part replaces 93500-06010-1A.

93500-06010-0A

$0.93

32

SCREW-WASHER (4X10)

93892-04010-08

$1.04

32

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

33

CLIP, TUBE (B7)

95002-02079

$1.09

34

CLIP, TUBE (B8)

95002-02089

Unavailable

35

BULK HOSE, VACUUM (3.5X1000) (3.5X370)

95005-35001-50M

$12.31

37

JET, MAIN (#150) | (Optional).

99101-GHB-1500

$10.94

37

JET, MAIN (#152)

99101-GHB-1520

$10.94

38

JET, SLOW (#50)

99104-KC1-0500

$14.77
