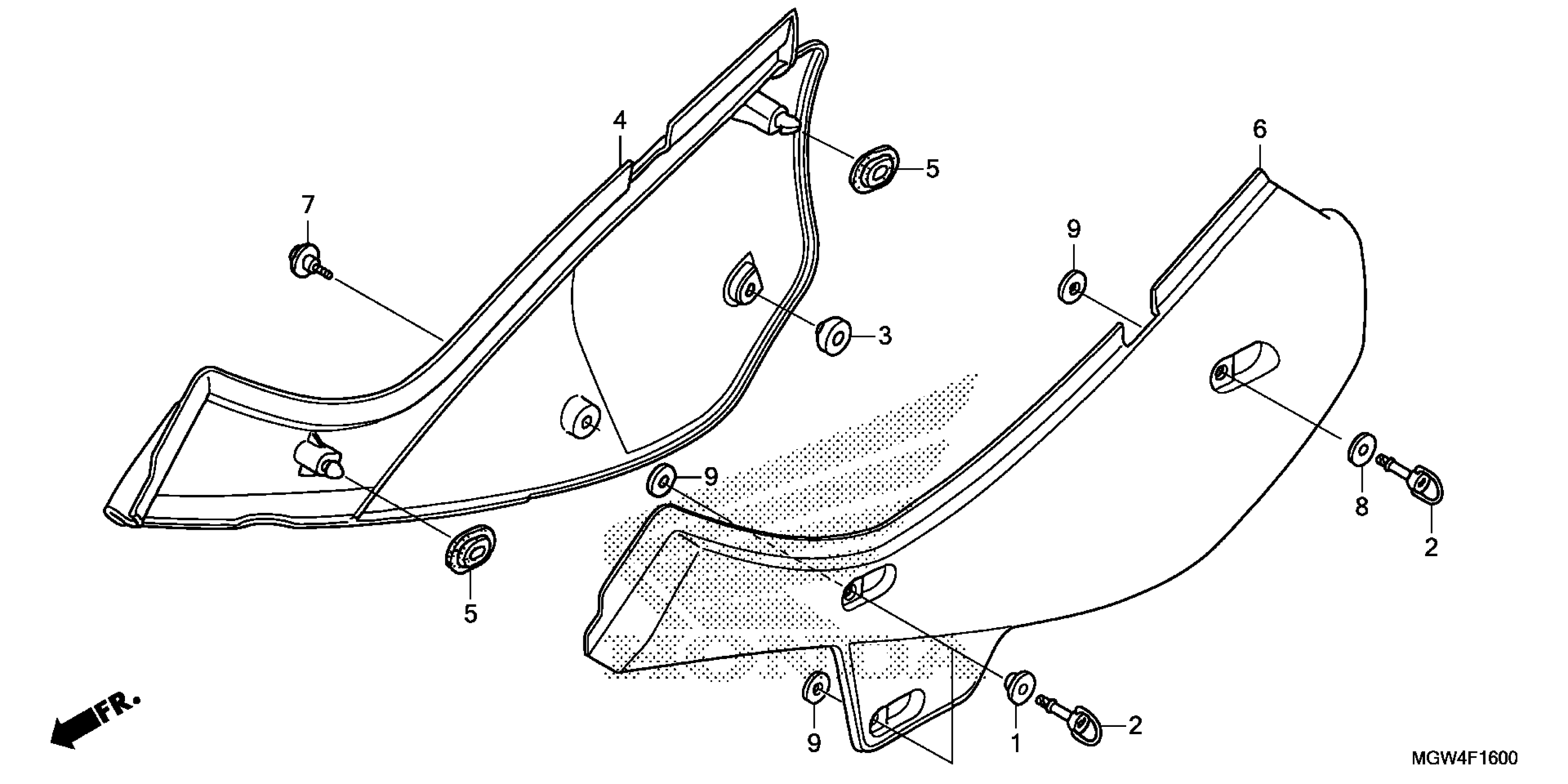

Honda XR650L2AC (24) MOTORCYCLE, JPN, VIN# JH2RD061-RK300001 TO JH2RD061-RK399999 SIDE COVER Diagram

COLLAR, AIR CLEANER COVER SETTING

17223-KN5-670

$2.97

STUD (6X21)

17225-KN5-671

$6.99

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

COVER SET, R. SIDE *NH196* (WOL) (ROSS WHITE)

83520-MY6-920ZB

$84.49

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER SET, L. SIDE *NH196* (WL) (ROSS WHITE)

83620-MY6-920ZB

$90.29

BOLT, FLANGE (6MM)

90111-KM1-000

$4.24

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87

WASHER (5.4X14X0.5)

90505-MY6-920

$2.11
