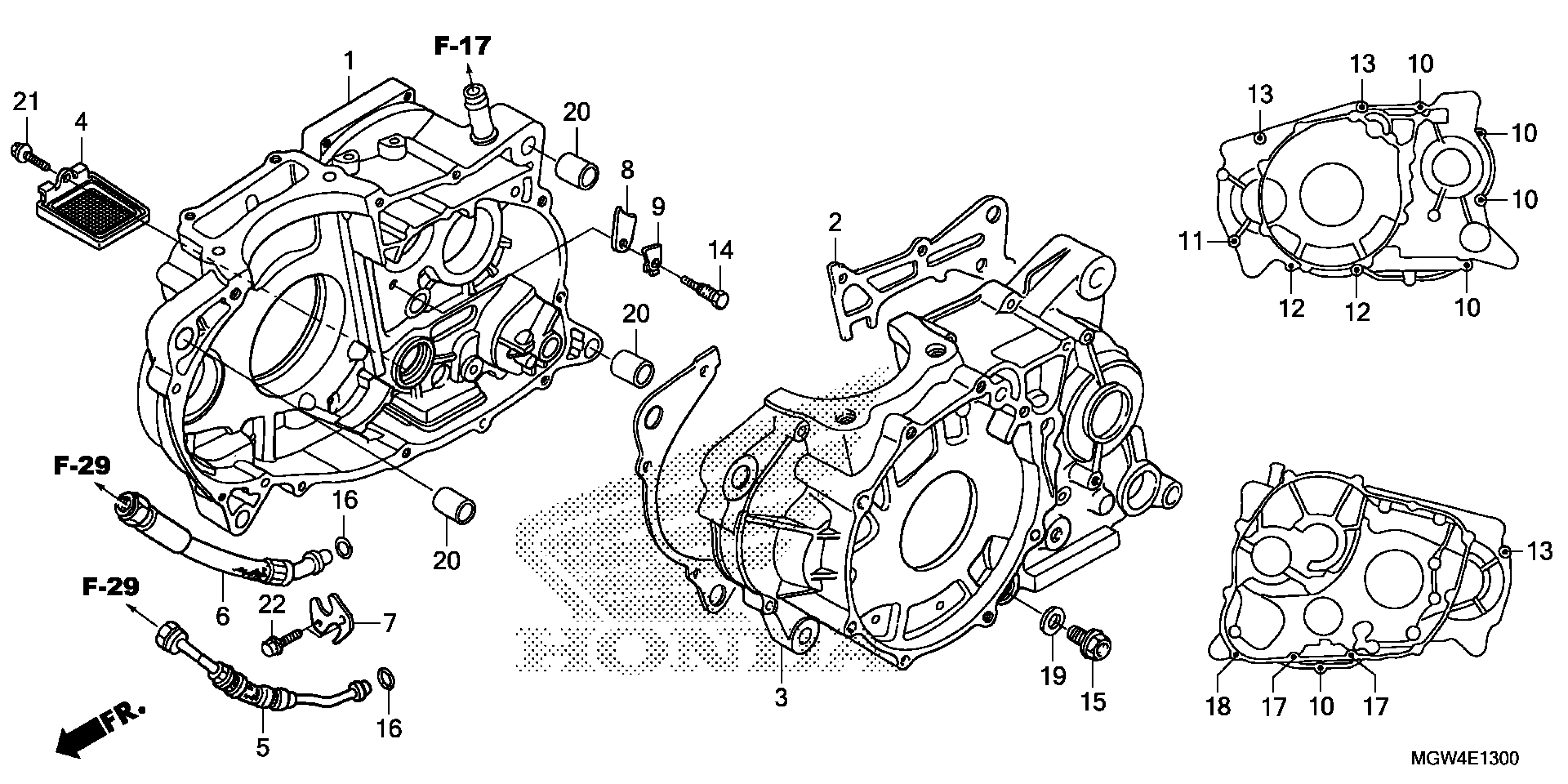

Honda XR650L2AC (24) MOTORCYCLE, JPN, VIN# JH2RD061-RK300001 TO JH2RD061-RK399999 CRANKCASE Diagram

CRANKCASE, R.

11100-MY6-671

$448.94

GASKET, CRANKCASE

11191-MN1-702

$22.10

CRANKCASE, L.

11200-MY6-670

$481.53

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$10.13

HOSE A, OIL

15610-MN1-702

$111.18

HOSE B, OIL

15620-MN1-670

$109.84

PLATE

15630-MG3-010

$10.59

PLATE, BEARING SETTING

23521-MAN-690

$5.99

WASHER, LOCK (8MM)

23523-MG2-790

$2.80

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.68

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.02

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.31

BOLT, SPECIAL (8MM)

90088-MG3-000

$5.82

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.03

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.03

GASKET, RUBBER (10.5MM)

91302-MG2-792

$3.87

BOLT 2, STUD (6X22)

92900-06022-0E

Unavailable

BOLT 2, STUD (6X35)

92900-06035-0E

$1.50

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

PIN A, DOWEL (14X20)

94301-14200

$2.80

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
