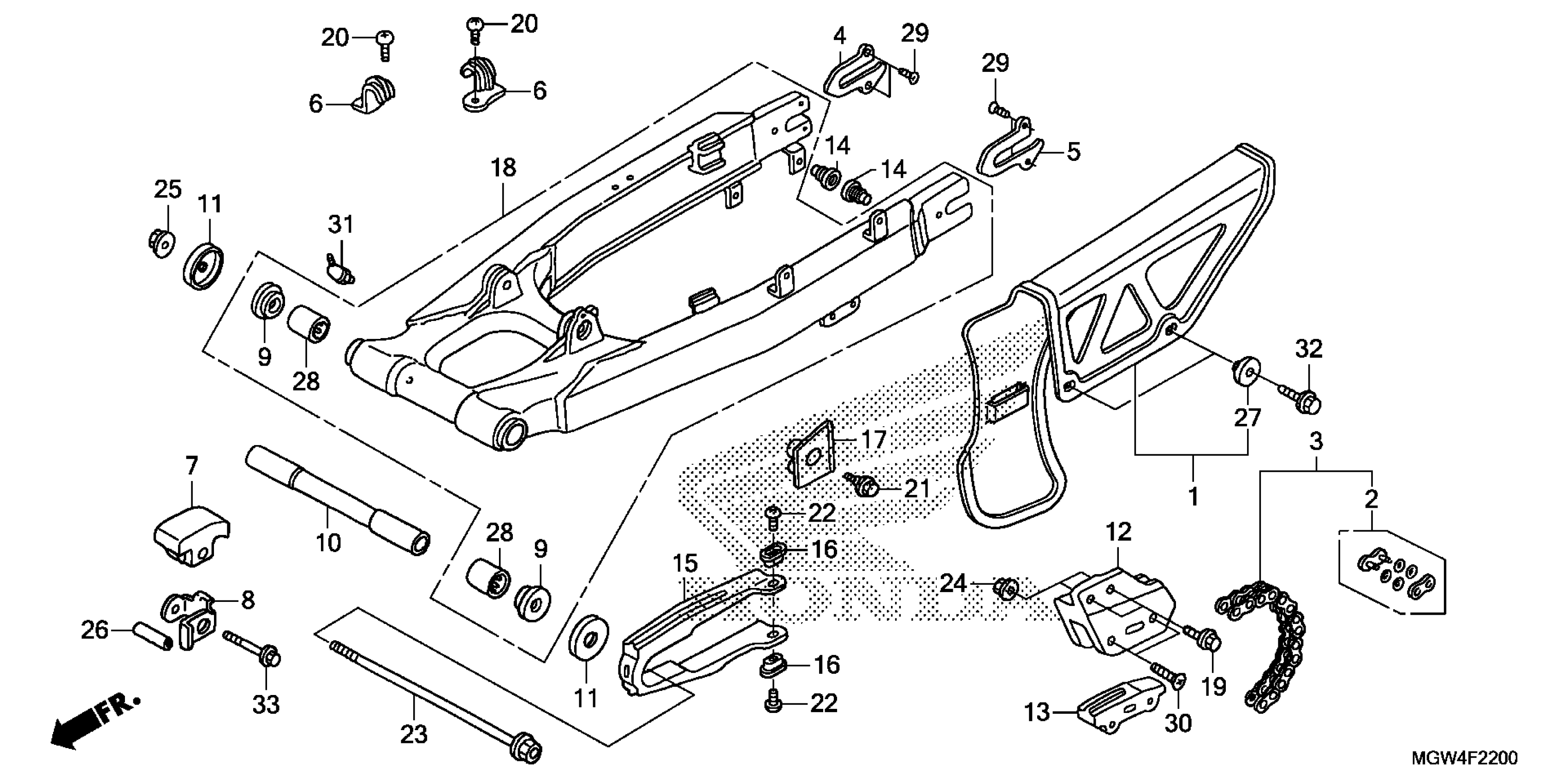

Honda XR650L2AC (23) MOTORCYCLE, JPN, VIN# JH2RD061-PK200001 TO JH2RD061-PK299999 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-KAE-870

$42.84

CASE, DRIVE CHAIN This part replaces 40510-KR6-000.

40510-KAE-870

$42.84

MASTER LINK SET (DAIDO)

40535-KV3-405

$6.15

MASTER LINK SET (RK EXCEL)

40535-KV3-406

$4.51

CHAIN, DRIVE (DID520V8-120ZB) (DAIDO) (STANDARD LINK 120L) (STANDARD LINK 110L)

40540-KV3-405

$165.34

CHAIN, DRIVE (RK EXCEL) (RK520MOZ6-120LJ-FZ) (STANDARD LINK 120L) (STANDARD LINK 110L)

40540-KV3-406

$165.31

WASHER, R. RR. SWINGARM

42307-MY6-670

$33.03

WASHER, L. RR. SWINGARM

42308-MY6-670

$33.03

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.46

SLIPPER, CHAIN

50911-MN1-670

$24.51

STAY, CHAIN SLIPPER

50912-MN1-670

$16.46

BUSH, PIVOT THRUST

52109-430-300

$16.01

COLLAR, SWINGARM

52141-MN1-670

$66.59

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

GUIDE, CHAIN

52146-MN1-671

$34.04

SLIDER, CHAIN GUIDE

52147-MN1-670

$13.97

PIN, CHAIN ADJUSTER

52156-KV6-000

$11.31

SLIDER, CHAIN

52170-MN1-681

$57.68

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

GUARD, CHAIN

52180-MY6-670

$46.36

SWINGARM SET

52200-MY6-305

$1,010.10

BOLT, FLANGE (6X16)

90103-MY6-670

$3.72

SCREW, PAN (5X10)

90104-ML7-920

$2.92

BOLT, FLANGE (6X10)

90113-MY6-670

$4.10

SCREW, PAN (5X8)

90115-KV3-700

$2.61

BOLT, SWINGARM PIVOT

90121-KK3-830

$34.79

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, U (14MM)

90305-GE8-003

$3.86

COLLAR, CHAIN SLIPPER

90501-MN1-680

$3.67

WASHER (6X9)

90513-405-000

$2.09

WASHER (6X9) This part replaces 90513-428-900.

90513-405-000

$2.09

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$24.72

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

FITTING, GREASE (B.76S)

96201-80000

$2.56

BOLT, FLANGE (6X12)

96300-06012-07

$1.49

BOLT, FLANGE (6X32)

96400-06032-00

$1.80
