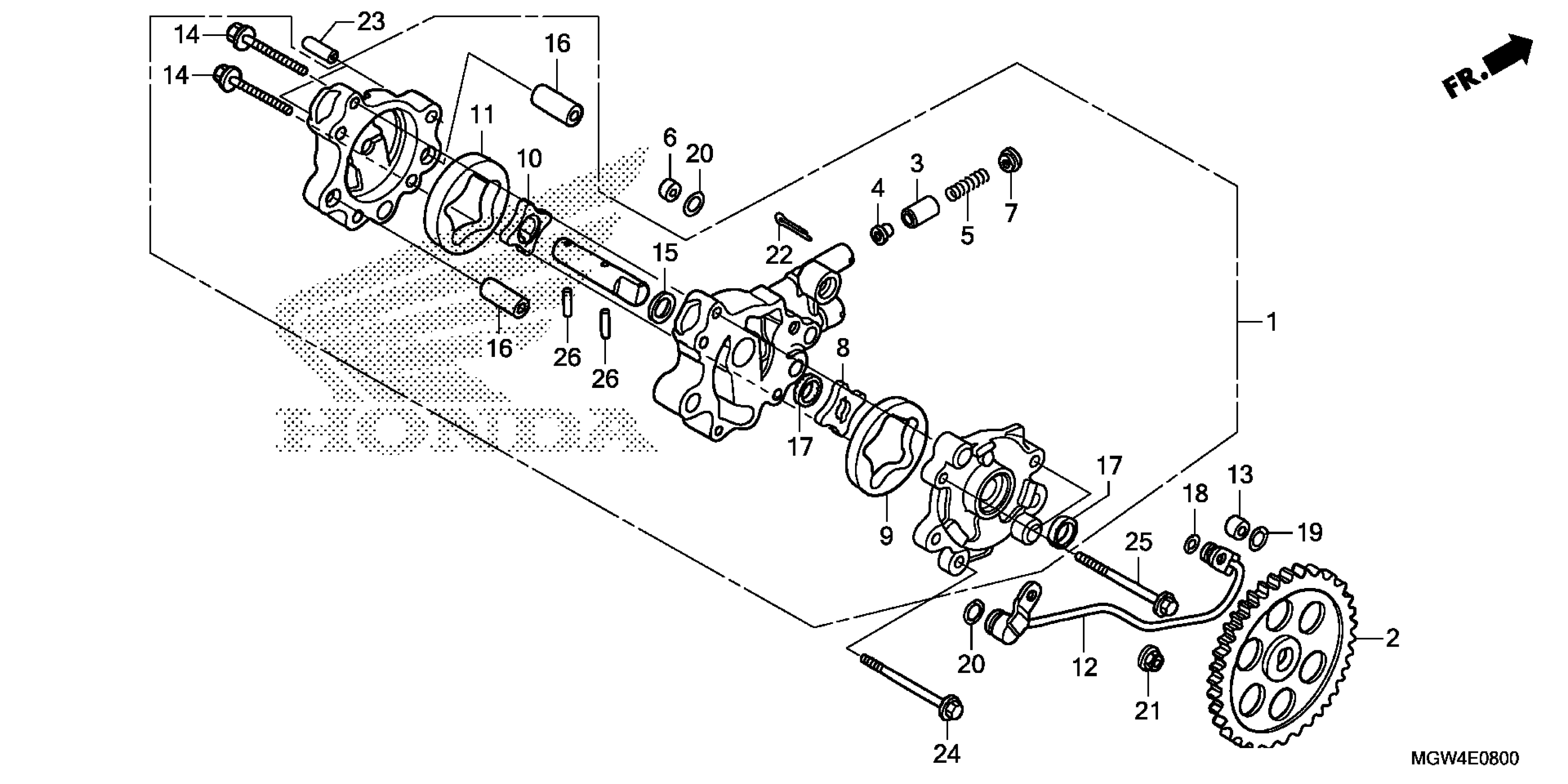

Honda XR650L2A (24) MOTORCYCLE, JPN, VIN# JH2RD060-RK300001 TO JH2RD060-RK399999 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-MY6-670

$157.80

2

GEAR, OIL PUMP DRIVEN (47T)

15105-MN1-671

$70.96

3

VALVE, OIL LEAK STOPPER

15106-MG3-000

$15.68

4

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.31

5

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.51

6

ORIFICE (5.5MM)

15109-MG3-000

$11.10

7

SEAT B, SPRING

15111-MG3-000

$2.69

8

ROTOR A, OIL PUMP (INNER)

15115-MG3-000

$15.65

9

ROTOR A, OIL PUMP (OUTER)

15116-MG3-000

$25.22

10

ROTOR (INNER)

15121-MG3-000

$18.76

11

ROTOR (OUTER)

15122-MG3-000

$28.94

12

PIPE, OIL

15510-MK2-000

$47.41

13

HOLDER

17958-197-300

$3.68

14

BOLT, FLANGE (6X35) (CT200)

90014-ZE6-000

$1.91

15

WASHER, THRUST (11MM)

90456-333-000

$2.46

16

PIN, DOWEL (8X24)

90701-MG3-000

$3.51

17

OIL SEAL (11X15X3) (KOYO)

91208-MN1-771

$7.97

18

O-RING (7X1.7)

91301-473-003

$2.51

19

O-RING (9.6X1.9)

91302-K95-AA1

$1.74

20

O-RING (1.5X9.5)

91306-MG3-000

$2.15

21

NUT, FLANGE (6MM)

94050-06080

$0.60

22

PIN, COTTER (3.0X45) This part replaces 94201-03200.

94201-30450

$0.96

22

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.96

22

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

22

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.96

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

22

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.96

23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

24

BOLT, FLANGE (6X55)

96001-06055-00

$1.50

25

BOLT, FLANGE (6X60)

96001-06060-00

$2.54

26

ROLLER (4X15.8)

96220-40158

$0.41
