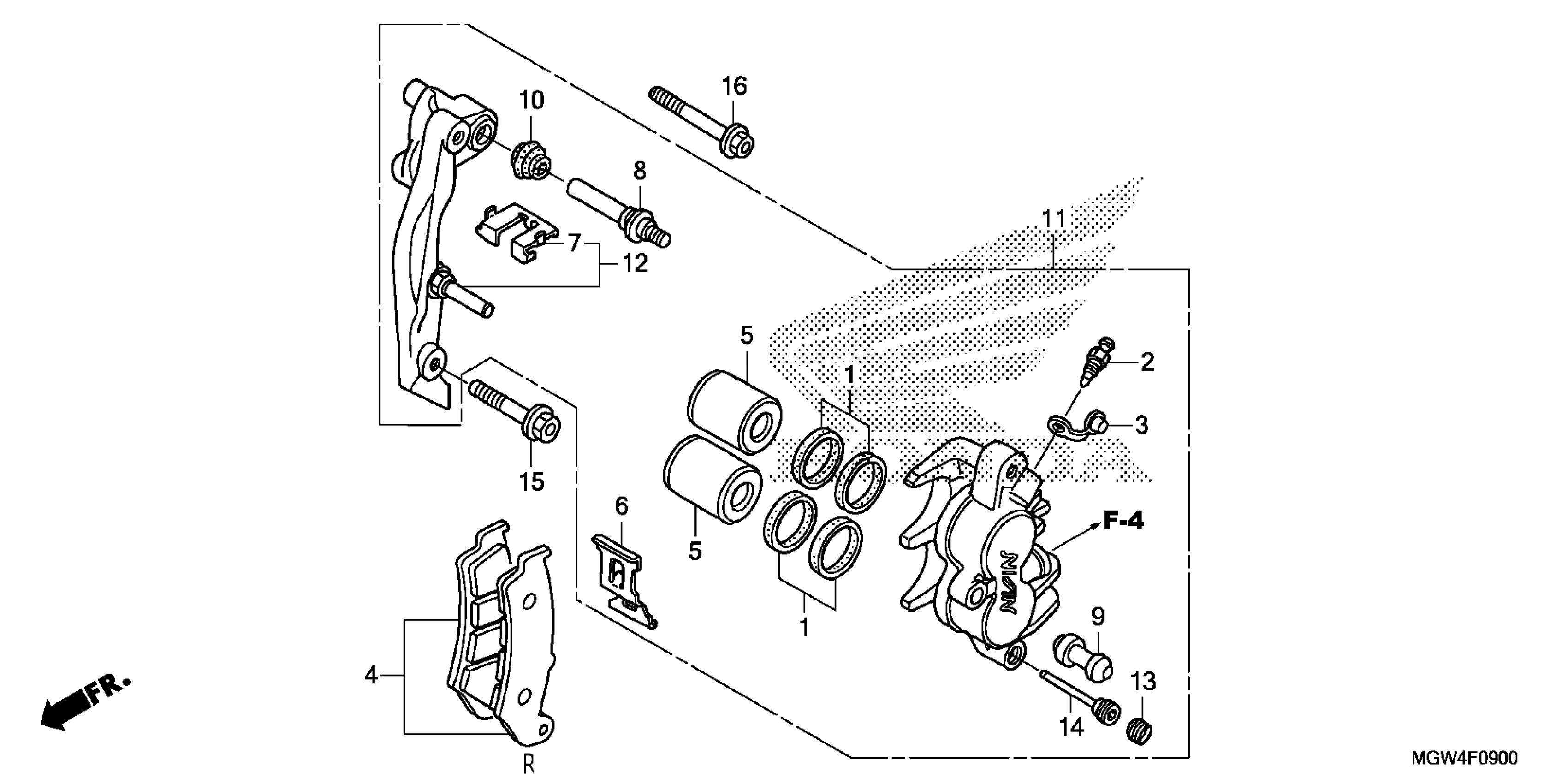

Honda XR650L2A (24) MOTORCYCLE, JPN, VIN# JH2RD060-RK300001 TO JH2RD060-RK399999 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PAD SET, FR.

45105-MY6-415

$41.96

PISTON

45107-KS6-702

$50.91

SPRING, PAD

45108-MY1-006

$9.86

RETAINER

45112-KAS-901

$4.41

BOLT A, BOLT

45131-HA5-672

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MY6-A91

$257.76

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MY6-A91

$101.69

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-HA5-672

$9.77

BOLT, FLANGE (8X35)

90131-MY6-670

$2.41

BOLT, FLANGE (8X45)

90132-MY6-670

$2.41
