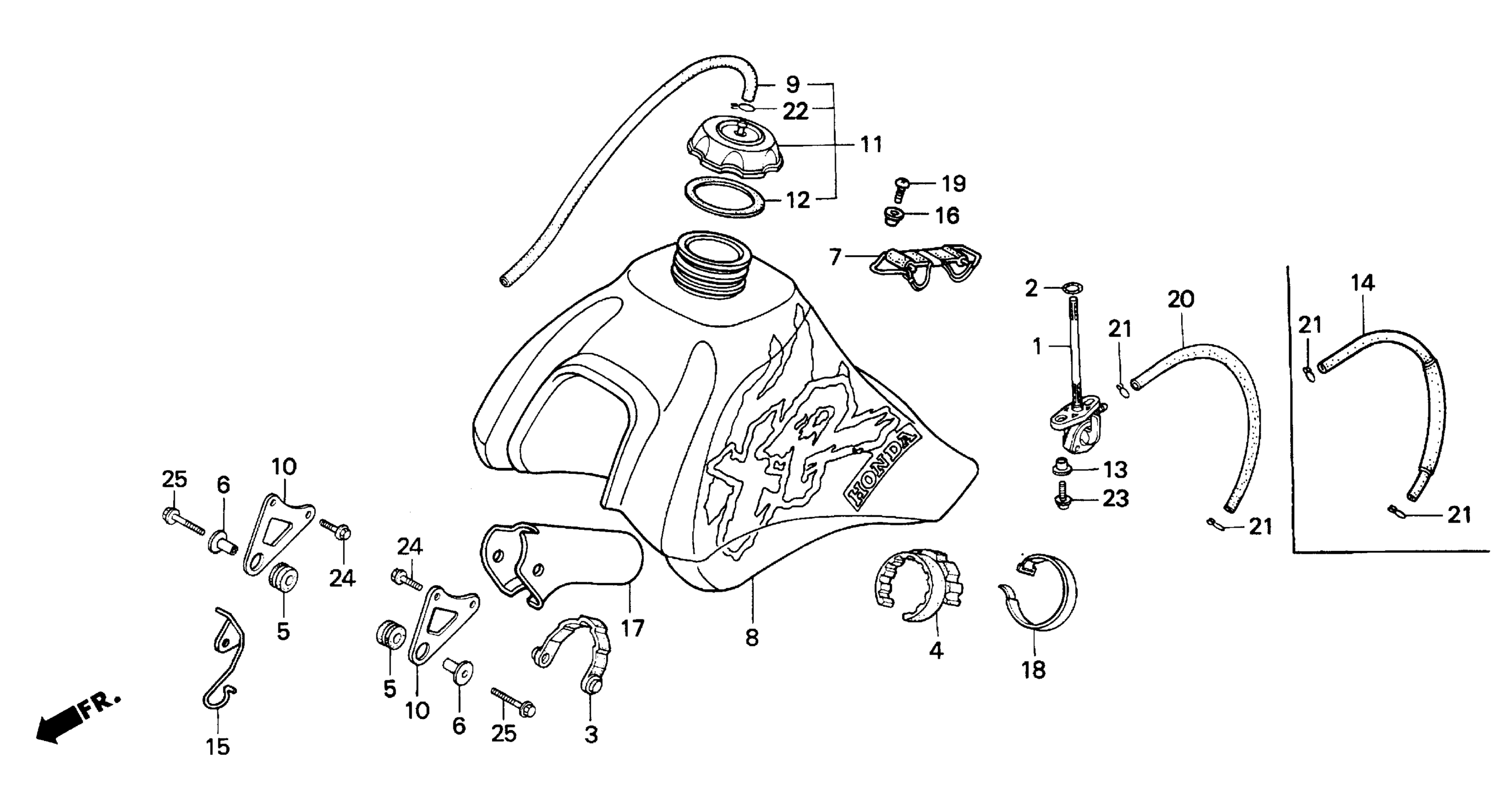

Honda XR600RA (94) MOTORCYCLE, JPN, VIN# JH2PE040-RM900001 TO JH2PE040-RM903011 FUEL TANK Diagram

PETCOCK ASSY.

16950-MN1-871

$90.28

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER A, TANK SETTING

17503-MK2-670

Unavailable

RUBBER B, TANK SETTING

17504-MN1-670

Unavailable

RUBBER, TANK MOUNTING

17508-KN5-670

$2.59

RUBBER, TANK MOUNTING This part replaces 17508-MN1-670.

17508-KN5-670

$2.59

COLLAR, TANK SETTING

17509-MK2-680

$7.55

BAND, RR. TANK

17516-MN1-670

$18.05

TANK SET, FUEL (TYPE2) (WL) (NOT AVAILABLE)

17520-MAG-000ZA

Unavailable

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

PLATE, FR. TANK

17522-MN1-670

Unavailable

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

GUIDE, CLUTCH CABLE

22878-MN1-650

Unavailable

COLLAR B, TAILLIGHT

33713-GC2-000

$3.38

COVER, MAIN PIPE HEAT

50180-MK2-670

Unavailable

STRAP, CABLE

90672-KBR-000

Unavailable

SCREW, PAN (6X16)

93500-06016-0A

$1.49

BULK HOSE, FUEL (7.5X8000) (7.3X180)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

BOLT, FLANGE (6X30) This part replaces 96500-06030-00.

96300-06030-00

$2.00

BOLT, FLANGE (6X30)

96300-06030-00

$2.00
