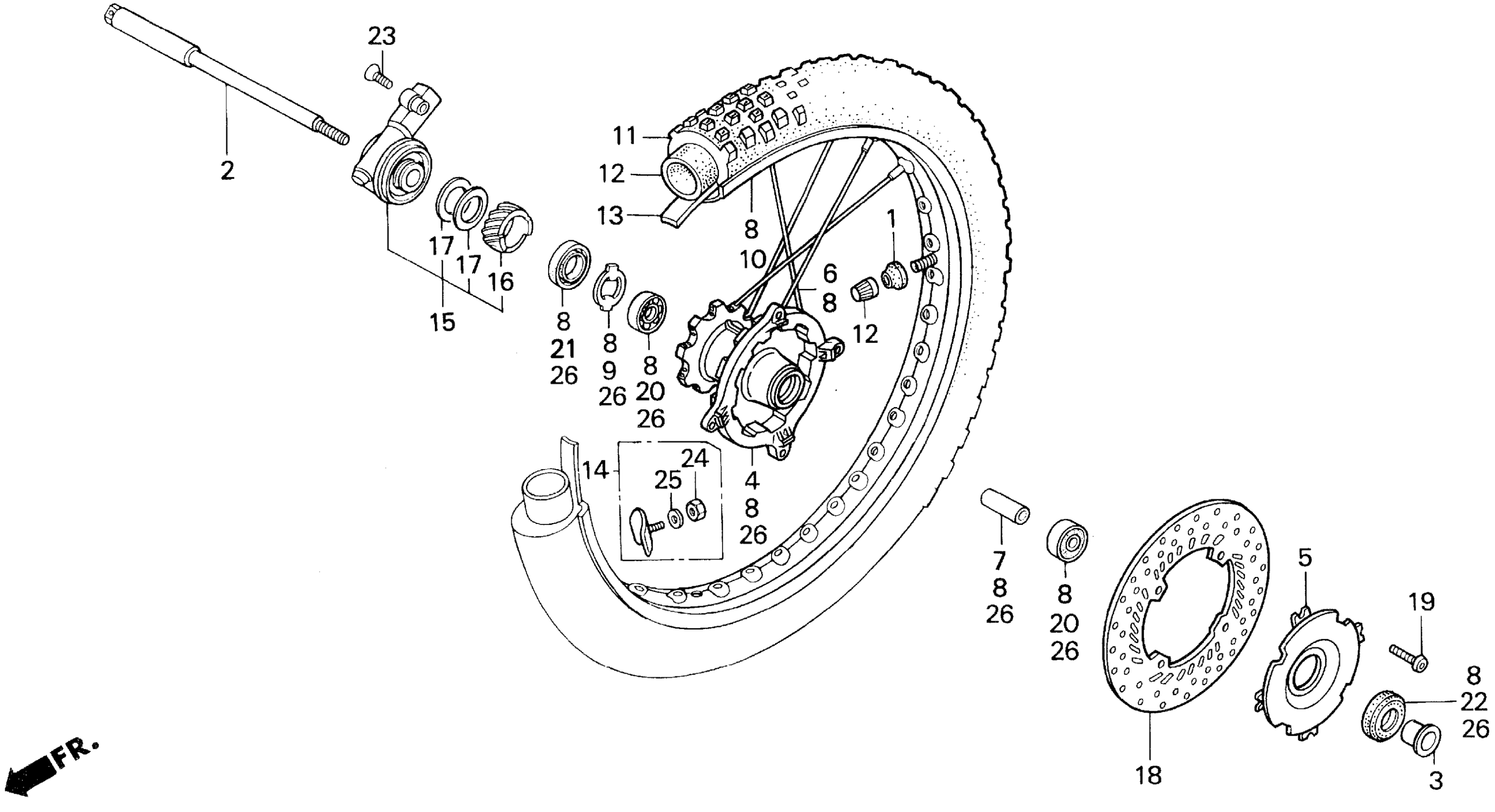

Honda XR600RA (94) MOTORCYCLE, JPN, VIN# JH2PE040-RM900001 TO JH2PE040-RM903011 FRONT WHEEL Diagram

CAP, VALVE

42714-KA3-710

$10.46

AXLE, FR. WHEEL

44301-KAE-870

$67.93

COLLAR, FR. WHEEL

44311-MN1-000

Unavailable

HUB, FR. WHEEL

44601-MN1-000

Unavailable

COVER, FR. HUB *NH1* (BLACK)

44610-KW3-010ZB

$14.05

SPOKE SET, FR. (E10X249)

44610-KZ1-405

$5.07

COLLAR, FR. WHEEL DISTANCE

44620-ML3-790

Unavailable

WHEEL SET, FR.

44650-MN1-305

Unavailable

RETAINER, GEAR BOX

44680-MA0-000

$7.41

RIM, FR. WHEEL

44701-MN1-671

Unavailable

TIRE, FR. (80/100-21) (51M VE32) (INOUE) (NOT AVAILABLE)

44711-MN1-671

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)

44713-446-631

Unavailable

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

BOX ASSY., SPEEDOMETER GEAR

44800-MY6-771

$103.64

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

DISK, FR. BRAKE

45351-KZ1-771

Unavailable

BOLT, DISK (6X17)

90105-KN5-000

$3.89

BEARING, RADIAL BALL (6003-SH2)

91065-KA3-832

$15.72

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

DUST SEAL (24X37X7) (NOK)

91259-KS6-831

$9.19

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
