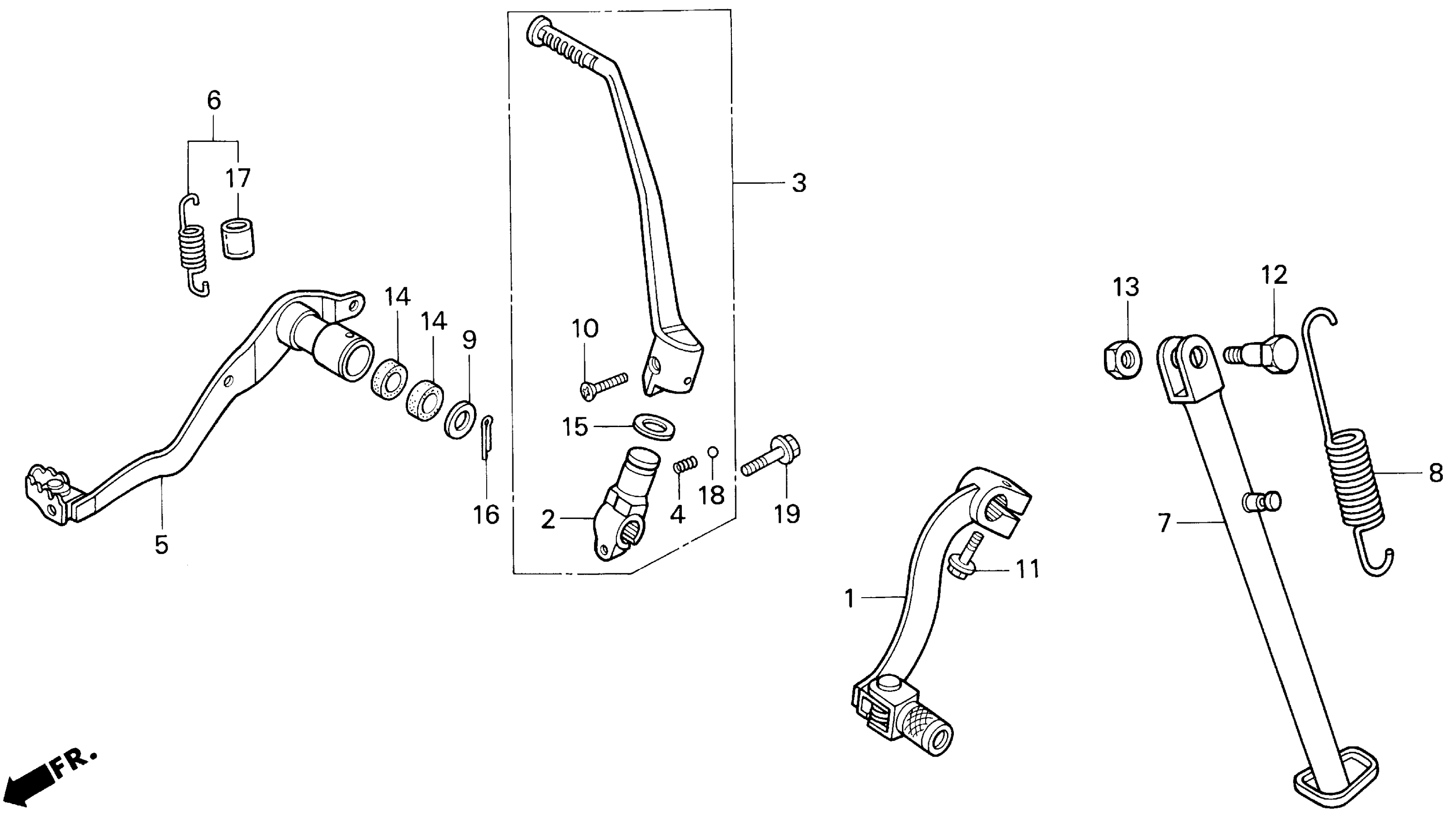

Honda XR600RA (93) MOTORCYCLE, JPN, VIN# JH2PE040-PM800002 TO JH2PE040-PM804150 BRAKE PEDAL Diagram

PEDAL ASSY., CHANGE

24700-MN1-000

Unavailable

ARM ASSY., KICK STARTER

28300-MN1-671

$168.36

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

PEDAL, BRAKE This part replaces 46500-MN1-680.

46500-MN1-710

Unavailable

PEDAL, BRAKE

46500-MN1-710

Unavailable

SPRING ASSY., BRAKE PEDAL

46515-MN1-680

$9.48

BAR, SIDE STAND

50530-MN1-670

Unavailable

SPRING, SIDE STAND

50535-KN5-670

$6.54

WASHER, BUSH

53312-657-000

$6.70

BOLT, KICK ARM

90101-KN5-670

Unavailable

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

DUST SEAL (19X25X4.1) (ARAI) This part replaces 91303-KA3-731.

91303-KA3-732

$5.54

DUST SEAL (19X25X4.1) (ARAI)

91303-KA3-732

$5.54

PIN, SPLIT (2.5X30)

94201-25300

$1.49

TUBE, VINYL (16X19X20) (95003-50001-10M) (NOT AVAILABLE)

95003-50002-20

Unavailable

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X28)

96300-08028-00

$1.79
