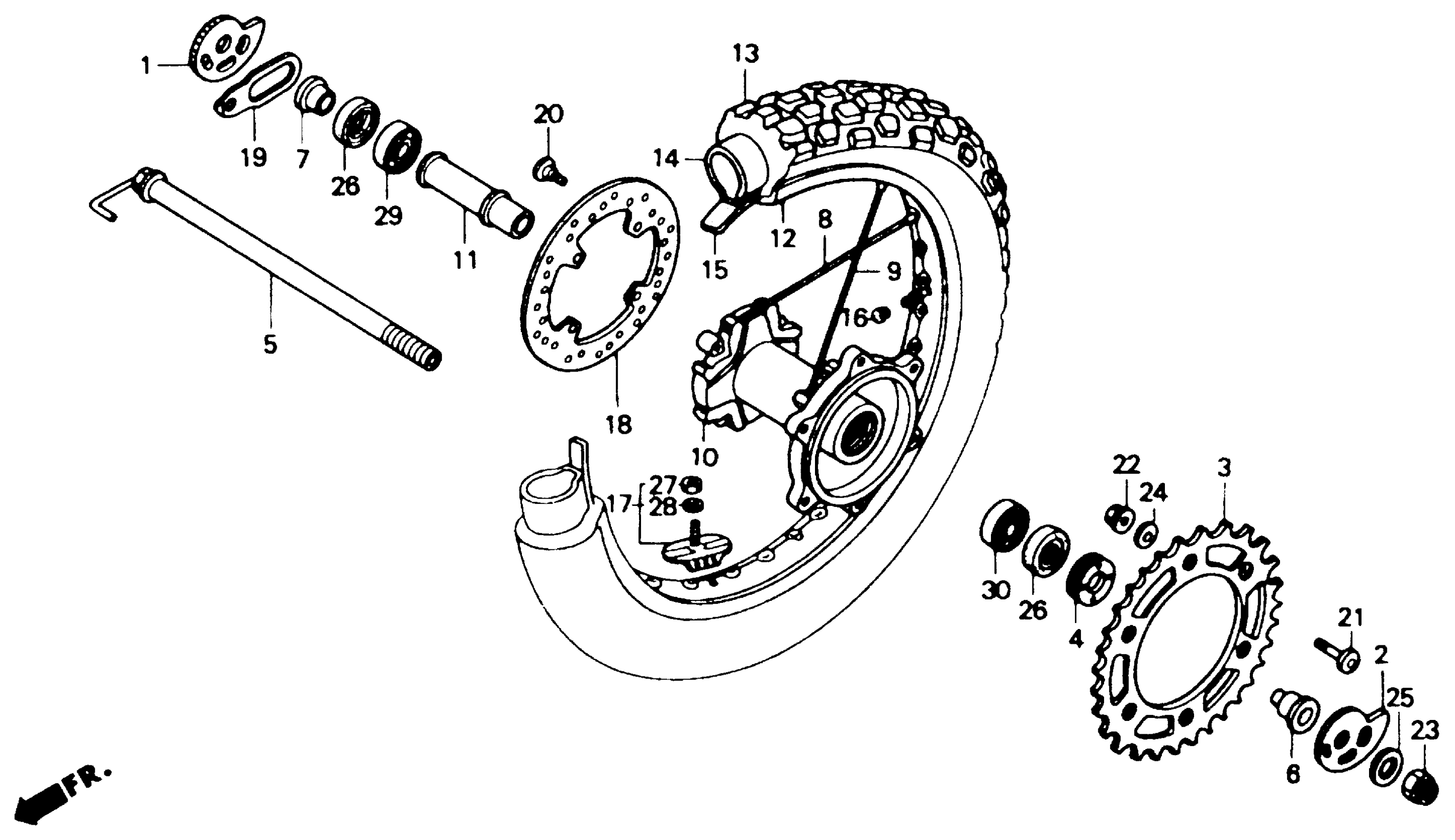

Honda XR600RA (92) MOTORCYCLE, JPN, VIN# JH2PE040-NM700004 REAR WHEEL 91-92 Diagram

ADJUSTER, R. CHAIN

40544-MN1-670

$12.19

ADJUSTER, L. CHAIN

40545-MN1-670

$12.91

SPROCKET, FINAL DRIVEN (48T)

41201-KCV-670

Unavailable

SPROCKET, FINAL DRIVEN (48T) This part replaces 41201-KZ1-670.

41201-KCV-670

Unavailable

RETAINER, BEARING

41231-429-000

$30.89

AXLE, RR. WHEEL

42301-KZ1-600

Unavailable

AXLE, RR. WHEEL This part replaces 42301-KZ1-770.

42301-KZ1-600

Unavailable

AXLE, RR. WHEEL This part replaces 42301-MN1-670.

42301-KZ1-600

Unavailable

COLLAR, RR. WHEEL

42312-KZ1-670

Unavailable

COLLAR, RR. WHEEL SIDE

42313-KZ1-670

$16.79

SPOKE SET A, RR. This part replaces 426A0-MN1-680.

42610-MN1-405

$5.30

SPOKE SET A, RR.

42610-MN1-405

$5.30

SPOKE SET B, RR. This part replaces 426B0-MN1-680.

42611-MN1-405

$5.30

SPOKE SET B, RR.

42611-MN1-405

$5.30

HUB, RR. WHEEL

42601-MN1-680

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-KZ1-670

Unavailable

RIM, RR. WHEEL This part replaces 42701-MN1-681.

42701-MN1-682

Unavailable

RIM, RR. WHEEL

42701-MN1-682

Unavailable

TIRE, RR. (110/100-18) (64M VE37) (INOUE)

42711-MN1-671

Unavailable

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

FLAP, TIRE (1.85X18) (INOUE)

42713-446-631

Unavailable

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

DISK, RR. BRAKE

43351-KZ1-770

$174.82

STOPPER, RR. AXLE

52162-KF0-000

$5.46

BOLT, DISK (8X22)

90105-MK5-010

$4.94

BOLT, SPROCKET FIXING

90125-MN1-671

$4.94

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, AXLE (16MM)

90305-KE8-003

$8.64

WASHER (10MM)

90465-MN1-670

$3.38

WASHER, PLAIN (16MM)

90559-469-000

$5.35

OIL SEAL (25X40X7)

91216-729-921

$7.46

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.46

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
